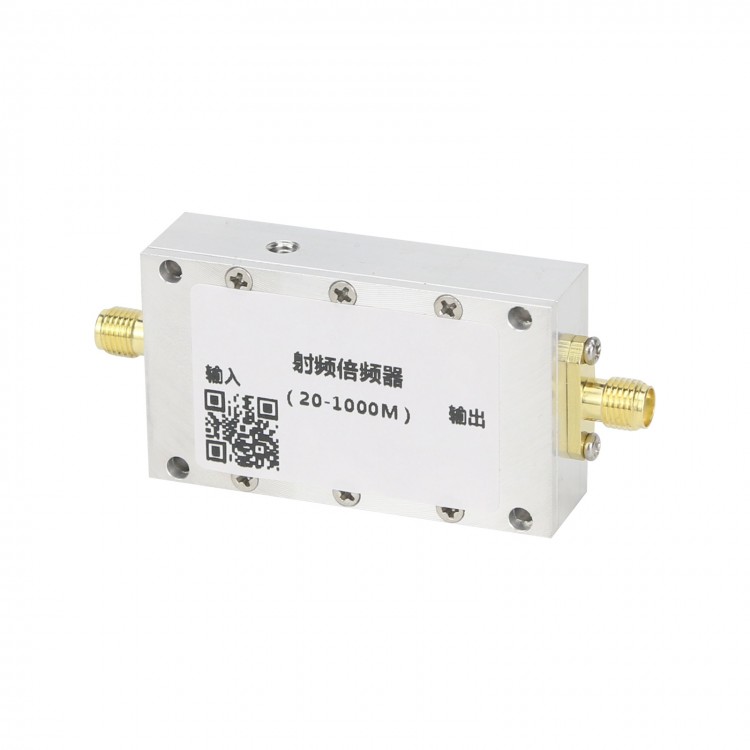

20-1000MHz Bandwidth Frequency Multiplier RF Frequency Doubler IF Passive Frequency Doubler

Availability: In stock, usually dispatched in 1 business day

  • Price:$33.44
  • Price in reward points: 334 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $32.77 $32.10 $31.10 $29.76 Contact US
Quantity:
Buy it now Add cart

You might like

RF741 Passive Frequency Multiplier Multiplication Input 1MHz-500MHz RF HF Frequency Doubler Module

RF741 Passive Frequency Multiplier Multiplication Input 1MHz-500MHz RF HF Frequency Doubler Module

$19.44

(0)
LMX2594 Module Frequency Synthesizer Development Board w/ Case PLL 10M-15GHz Microwave Signal Source

LMX2594 Module Frequency Synthesizer Development Board w/ Case PLL 10M-15GHz Microwave Signal Source

$693.63

(0)
32.768K 32768Hz 20K-100K 100 Times Frequency Multiplier Circuit Board PCBA

32.768K 32768Hz 20K-100K 100 Times Frequency Multiplier Circuit Board PCBA

$54.43

(0)
PLL Module Phase Locked Loop 80mA 12.5MHz-6.4GHz FSK Low Power Low Noise LMX2572 Core Board

PLL Module Phase Locked Loop 80mA 12.5MHz-6.4GHz FSK Low Power Low Noise LMX2572 Core Board

$83.13

(0)
PLL Module 80mA 12.5MHz-6.4GHz FSK Low Power Low Noise LMX2572 Core Board+Main Control Board

PLL Module 80mA 12.5MHz-6.4GHz FSK Low Power Low Noise LMX2572 Core Board+Main Control Board

$99.48

(0)
LMX2595 Module Frequency Synthesizer Development Board w/ Case PLL 10M-20GHz Microwave Signal Source

LMX2595 Module Frequency Synthesizer Development Board w/ Case PLL 10M-20GHz Microwave Signal Source

$247.62

(0)
HMC187 RF Frequency Multiplier Frequency Doubler with Aluminum Alloy Shell RF Input 0.87-2GHz

HMC187 RF Frequency Multiplier Frequency Doubler with Aluminum Alloy Shell RF Input 0.87-2GHz

$18.82

(0)
Frequency Doubler Frequency Multiplier Input 1.25G to 3G Output 2.5G to 6G DIY

Frequency Doubler Frequency Multiplier Input 1.25G to 3G Output 2.5G to 6G DIY

$12.10

(0)

20-1000MHz Bandwidth Frequency Multiplier RF Frequency Doubler IF Passive Frequency Doubler

Description:
This frequency multiplier is used for frequency expansion. When high-frequency signals are difficult to obtain, people often use frequency doubling techniques. The module adopts double frequency, with input signal range of 10-500MHz and output range of 20-1000MHz. It can be used for frequency multiplication of reference crystal oscillator signals and frequency multiplication of IF signals. With CNC shell, it has excellent electromagnetic shielding performance. Its compact structure makes it easy to use with other equipment.

Specifications:
- Frequency multiplication ratio: double frequency
- Input signal range: 10-500MHz
- Output signal range: 20-1000MHz
- Input level: 4-10dBm
- Maximum input: +23dBm
- Typical frequency doubling loss 12dB
- Input and output port standing wave: <1.2
- Connector: Default SMA (female)
- Module size: 53*30.5*14mm (including cover)
- Module weight: 85g

Package Included:
- 1 x Module
