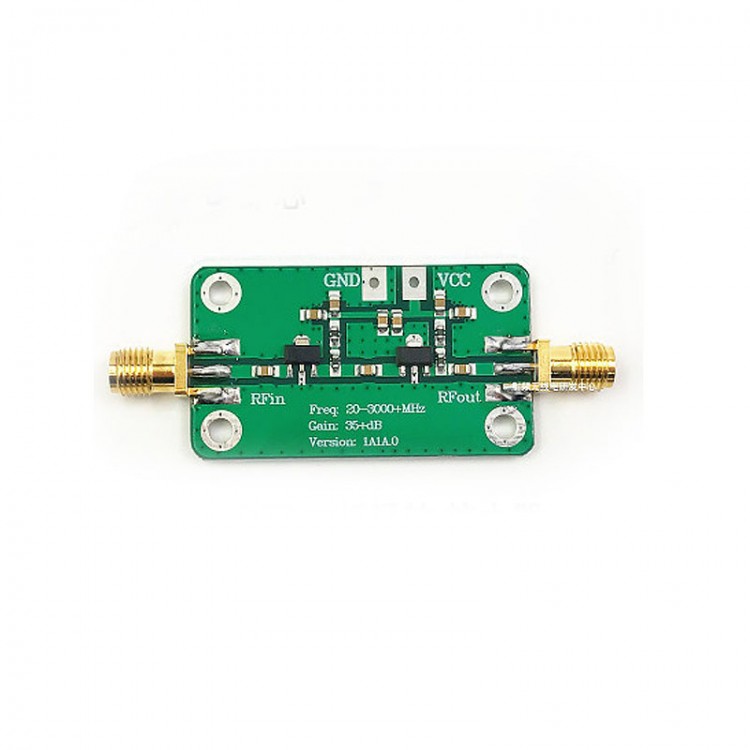

20-3000MHz Low Noise Amplifier LNA Broadband Low Noise RF Amplifier 35DB Typical Gain
Description:
This low noise amplifier is an upgraded version of the 5-3500MHz amplifier. The cascaded method enhances the gain of the amplifier while ensuring that the amplifier has a lower noise figure. Its typical gain is 35dB; the gain is higher in the low frequency band, and the gain in the high frequency band is slightly reduced.
Application:
The amplifier is used for low-noise amplification of various RF signals to enhance reception. Connecting this product to the output end of a receiving antenna can amplify the weak signal received, thereby expanding the receiving distance and increasing the communication effect. It is widely used in shortwave, FM broadcasting, walkie-talkies, GPS, Beidou receivers, wifi, bluetooth, etc. where low-noise small-signal RF amplification is required.
Specifications:
- Working frequency: 20-3000MHz
- Amplification gain: 35dB (typical)
- Maximum output: +20dBm (100mW) at 1dB compression point
- Working current: 150mA
- Working voltage: 3.3-6 (VDC)
- System impedance: 50 ohms
Package Included:
- 1 x Board
