Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $80.88 | $79.23 | $76.75 | $73.45 | Contact US |
Description:

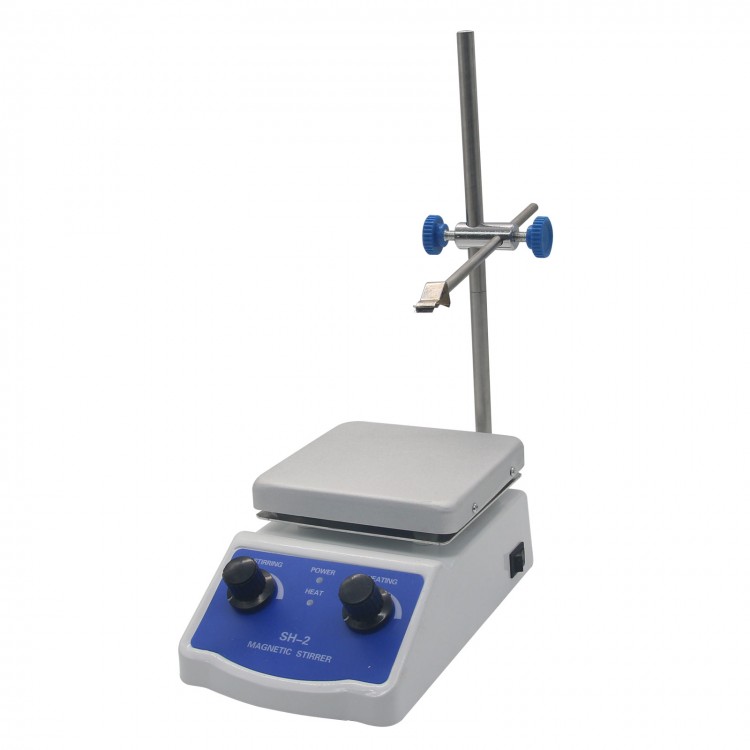

- Laboratory hotplate with integrated magnetic stirrer. Dual controls allow you to adjust the hotplate heating surface temperature and the stirring speed independently.Manufactured to the best specifications; fully tested and quality controlled.This lab hotplate stirrer comes with a coated stirring bar (~28mm length) and a support stand with adjustable thermometer holder extends above the hot plate surface.The aluminium plate heating surface of model SH-2 is 12cm x 12cm, which is large enough for beakers and flasks up to 2000ml in proper size.
Features:
- Maximum heating plate temperature can reach to 380℃
- Maximum stirring capacity can reach to 2000ml
- Stirring speed 100-1600rpm stepless adjustable
- Heating and magnetically stirring at the same time
Specifications:
- Heating power: 180 watts
- Maximum heating plate temperature: 380°C
- Stirrer motor power: 10 watts
- Electricity voltage requirements:220V for EUR;110V for US/CA/MEX
- Stirring speed: 100-1600rpm adjustable
- Stirring capacity: 1000ml liquid (H2O) volume
- Heating plate dimensions: 120mm x 120mm
- Heating plate material: anodized aluminium
- Overall dimensions (LxWxH): 200mm x 120mm x 90mm
- Height with support stand: about 320mm
- Weight with packaging: 2.2 kg
- On/off power switch
- Heating power variable control with LED indicator
- Magnetic stirrer variable control with LED indicator
Operation steps:
1.Put the magnetic stirrer onto the workbench,plug in;
2.Turn on the stirring swtich colckwise,thus setting the stirring speed you need;
3.Turn on the heating switch colckwise,thus setting to proper power.
Cautions:
1.This device must be connected with ground wire;
2.Please avoid using metal container or container with not flat bottom;
3.When stirring viscous liquid,please reduce liquid volume and stirring speed;
4.This device can work 8 hours continuously at middle speed,and 4 hours in high speed.
Packing list:
- 1 x Main unit
- 1 x Stirring bar
- 1 x Fuse
