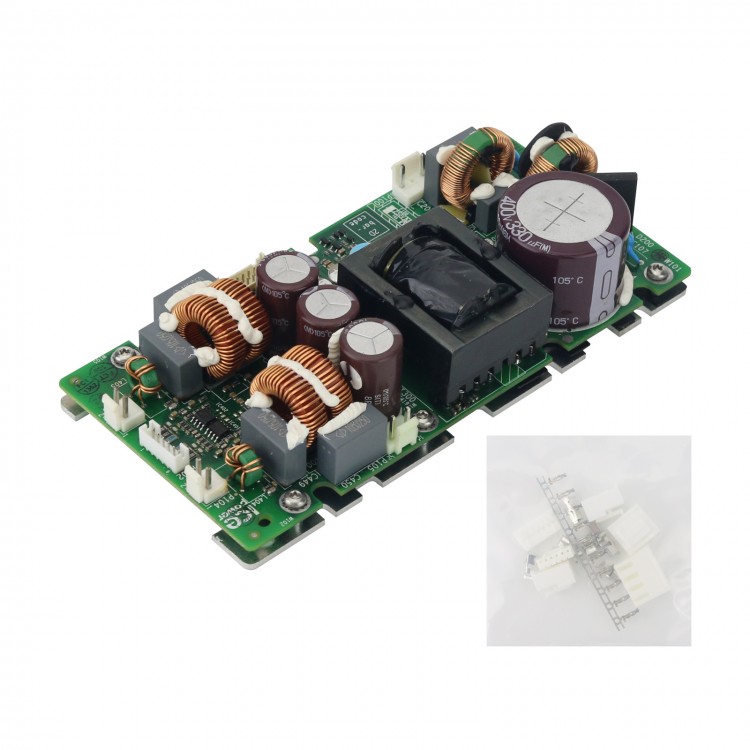

200AS2 Original 200W Digital Power Amplifier Module Power Amp Module Amplifier Part for ICEPOWER
Description:
200AS2 for ICEpower is a fully integrated audio power amplifier module. It includes universal power supply ErP and Energy Star compliant power supplies.
The 200AS2 is a dual-channel module. It offers an easy-to-use control interface, comprehensive protection and monitoring. It is designed for very high continuous output power, making it ideal for applications requiring sustained output power, such as bass and guitar amp applications.
The integrated aluminum substrate on the 200AS2 serves as both a cooling and mechanical interface. This makes integration easier and additional cooling capabilities can be added.
Technical Specifications:
- Number of Channels: 1
- Output Power: 200W
- Note 1: 0.003 % THD+N at 1 kHz, 10 W / 4Ω
- Input: Analogue
- Supply Voltage (maximum): 264V
- Supply Voltage (minimum): 85V
- Efficiency: 78%
- THD plus Noise: 0.006%
- Note 2: at 1W rms
- Stand-by Control: Yes
- Mute Control: Yes
Package Included:
- 1 x Amplifier Module
