200MHz Square Wave Distribution Amplifier 8 Output Port

200MHz Square Wave Distribution Amplifier 8 Output Port

Description:
- 1PPS Splitter, Square Wave Splitter, Distributed Amplifier, 8 Output Ports, Trigger Signal Splitter
- Power: DC11.7-12.9V, Max: 18W, 5.5/2.1 Socket
- Input: External AC coupling, 0.5Hz-200MHz, 0.1Vpp-5Vpp
              DC coupling, DC-200MHz, DC component 2.5V, 3-5Vpp
- Output: 8 Port, Square Wave, 5Vpp
- Input/Output Port: BNC
- Indicators:
  PWR: POWER Indicator; It is on when it is powered on
  EXT IN: EXTERNAL INPUT Signal Indicator; It is on when the external input signal is larger than 3Hz, or it is flashed or off.
  ERROR: If it is on, there is no output. When the output signal is larger than 0.5Hz, it is on, or it will flash or steady on.
- Accessory: AC 110-220V-DC 12V/1.0A
- Size: 100 x 55 x 120 (W*H*L) (Including BNC Parts)
- N.W.: 400g

FAQ:
Q: What is this?
A: The frequency divider divides one frequency into multiple frequencies. The distributed amplifier amplifies the weak and small signals. The main purpose is to amplify a frequency with lower signal amplitude and then divide it into multiple frequency outputs.

Q: Where we can use it?
A: For example, if you have a 10M benchmark, you need to provide benchmarks for 5 instruments. You can use this amplifier here.

Q: What are the three indicators for?
A: PWR: Power indicator. It is on when the distributor is powered on. So you can use it to check whether there is something wrong with the power supply.
EXT IN: External input signal indicator. It is on when there is external input signal.
ERROR: Error indicator. It is on when there is no signal or something wrong with the equipment. The following cases are excluded: it is on when the equipment is powered on and off in 3 seconds.

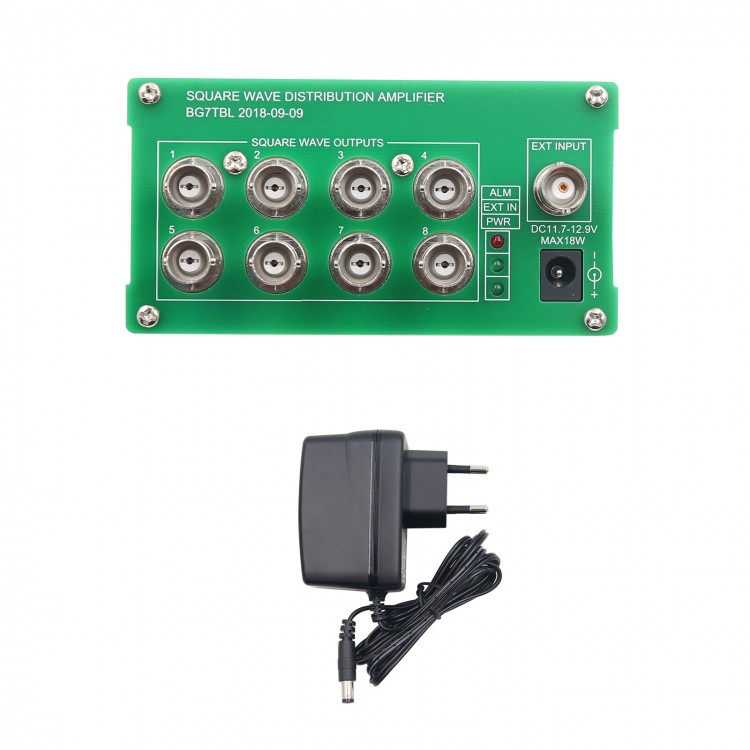

Package Included:
- 1 x Distribution Amplifier
- 1 x Power Adapter
