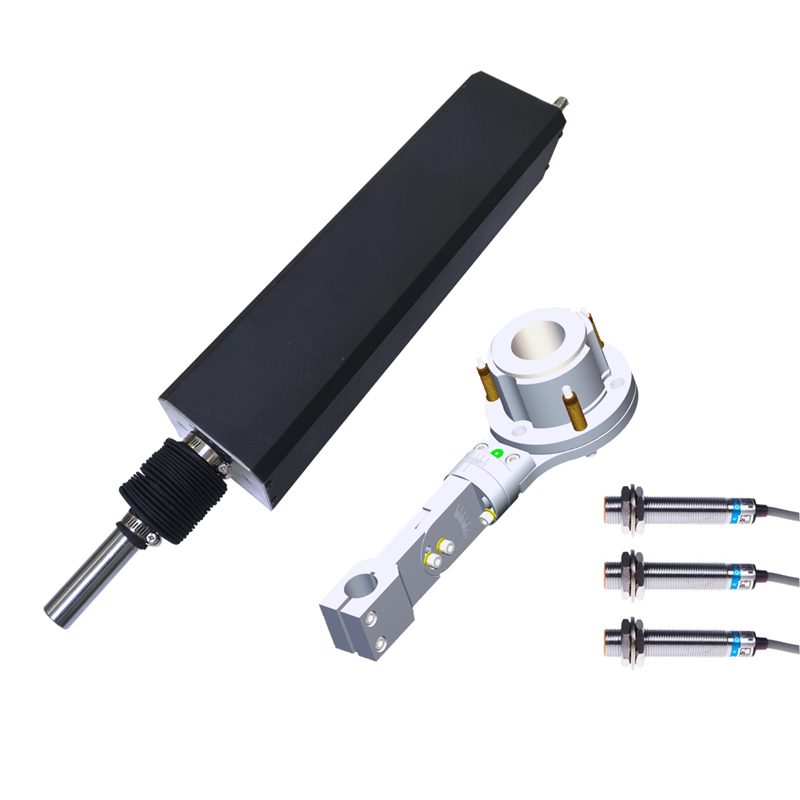

200mm/7.9" Torch Lifter + Plasma Torch Holder + 3 Proximity Switches for Plasma Cutting Machines
Lifter Features:
- Torch lifter for gantry CNC cutting machines
- DC24V motor of high torque
- Precision ball screw drive
- 200mm/7.9inch travel
- All aluminum alloy plate structure makes it not easier to deform
- The overall weight is about 8.85KG/19.5LB
- Using high-power lifting motor, its torque is larger, the anti-blocking ability is stronger, and the lifting speed is faster
- Precision chrome-plated guide shaft and ball screw are adopted, which has higher lifting accuracy and is smoother
- Built-in PCB limit circuit makes it more stable to use. It is easier to replace and troubleshoot faults
- Fast aviation plug enables more convenient wiring (pin 1: motor+; pin 2: motor-)
- A telescopic cover is adopted to block the dust from the outside of the lifting body. This protects delicate components such as bearings and ball screws inside the lifting body
- The guide plate adopts slotted positioning, so that the assembly accuracy is higher and the movement is smoother
Lifter Specifications:
- Item name: torch lifter
- Dimensions: 120 x 100 x 500mm/4.7 x 3.9 x 19.7" (WxTxH)
- Product weight: about 8.85KG/19.5LB
- Drive motor: DC24V motor
- Transmission mode: ball screw
- Telescopic cover: high temperature resistant dust-proof cover
- Lifting stroke: 200mm/7.9"
- Lifting speed: 2000-3000mm/min (78.7-118.1inch/min)
- Maximum load: 20KG/44.1LB
Package Included:
- 1 x Torch Lifter
- 1 x Plasma Torch Holder
- 3 x Proximity Switches
