200W 16.5MHz HFSSTC Plasma Candle Tesla Coil Assembled Amazing Teaching Aids With Music Function

200W 16.5MHz HFSSTC Plasma Candle Tesla Coil Assembled Amazing Teaching Aids With Music Function

Attention:
- To ensure its stability and reliability, each product will be tested for aging before shipment. Its discharge electrode may turn black after tests, which is normal and does not affect uses. Please make sure that you don't mind before purchasing.
- The music function is an additional function, and its sound is relatively small! Thank you for your understanding!

Description:

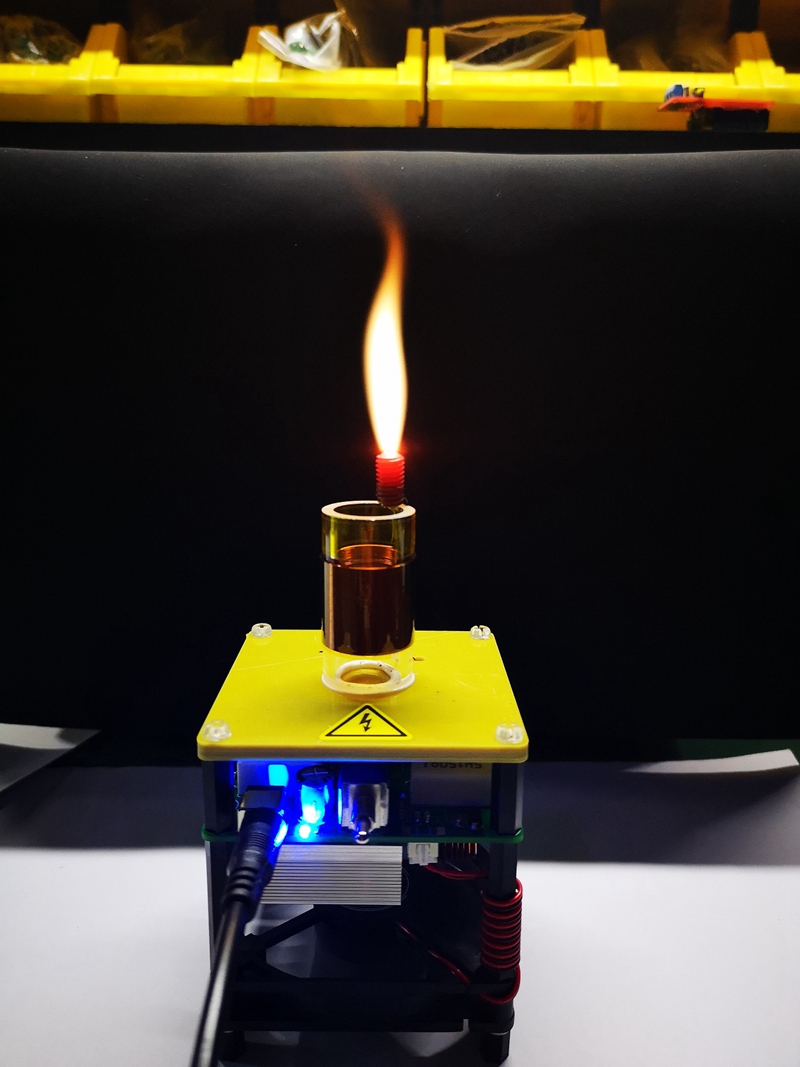

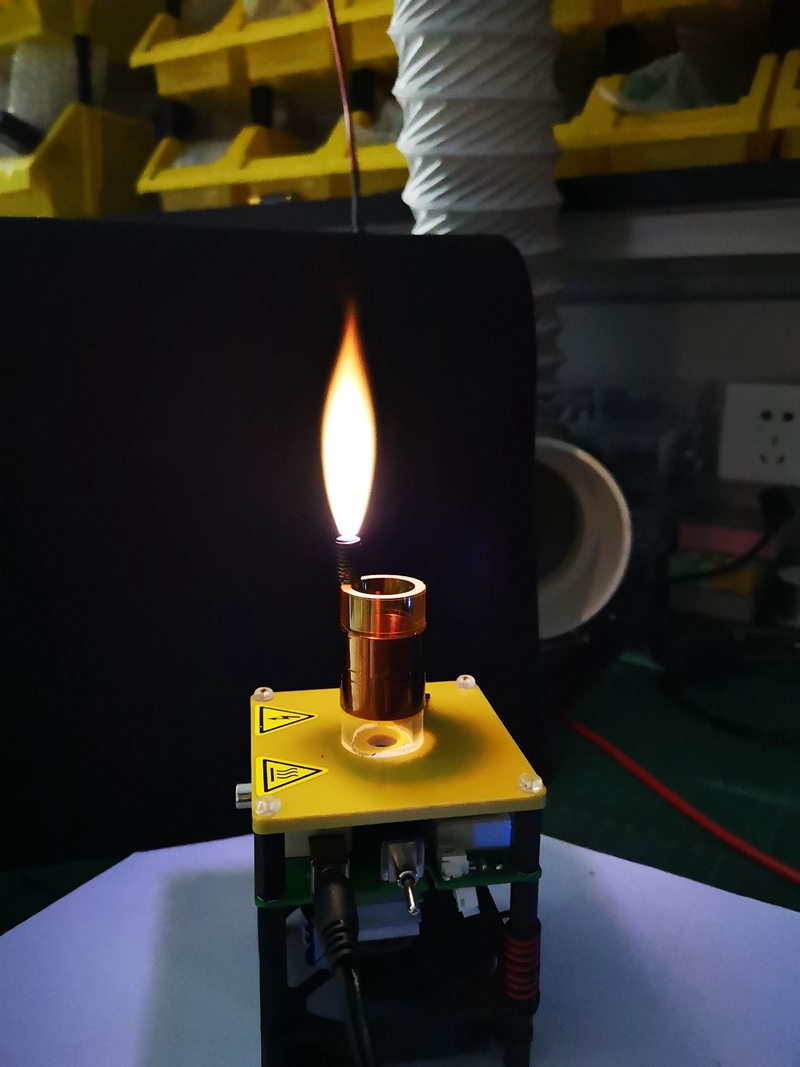

The working frequency of this Tesla coil can reach 16.5MHZ. It works at this frequency and in continuous operation, featuring higher energy density of the arc. Ordinary pulsed low-frequency Tesla coils are slender arcs that appear blue and purple, but the arc of this Tesla coil is a very high-temperature plasma arc, showing a golden yellow at extremely high temperature.

The HFSSTC allows longer running time and it can work continuously for 30 minutes with a single start! Its power can reach around 200W. Product size 80 x 80 x 160mm/3.1 x 3.1 x 6.3". An 8cm/3.1" fan is used to dissipate heat for the overall circuit. The resonant coil and the secondary coil are made of C+ high temperature resistant enameled wire, which will not turn black after long-term operation. The secondary coil bobbin adopts a premium quartz bobbin which is resistant to 1700℃. It adopts an integrated design and uses a CNC machine tool to process the coil base. The secondary coil is not independent, because it is resistant to high temperature.

When shipping, we will take off the discharge end and package it separately. After receiving the product, please wind the wire of the secondary coil around the discharge end. After the first start, if there is no arc, please touch the discharge end with a metal object such as a screwdriver. When the ambient temperature is too low, the arc may be smaller after starting, and the best working state can be achieved after preheating and running for about 3 minutes.

Features:
- 16.5MHz high frequency
- High temperature resistant quartz coil for extended operation
- CNC machined base
- Plug and play
- All-plastic support screws avoid high-frequency induced currents
- Fan with excellent heat dissipation performance enables long running time
- 200W maximum power

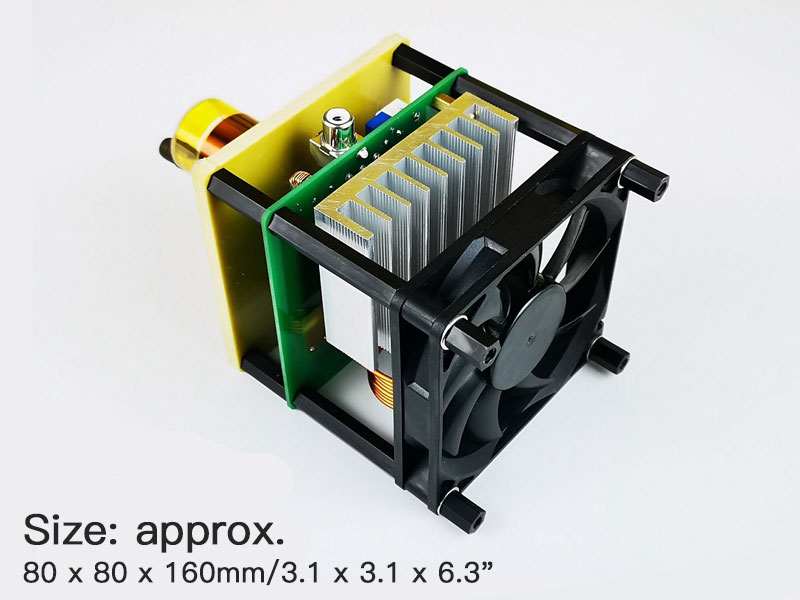

- Size 80 x 80 x 160mm/3.1 x 3.1 x 6.3"

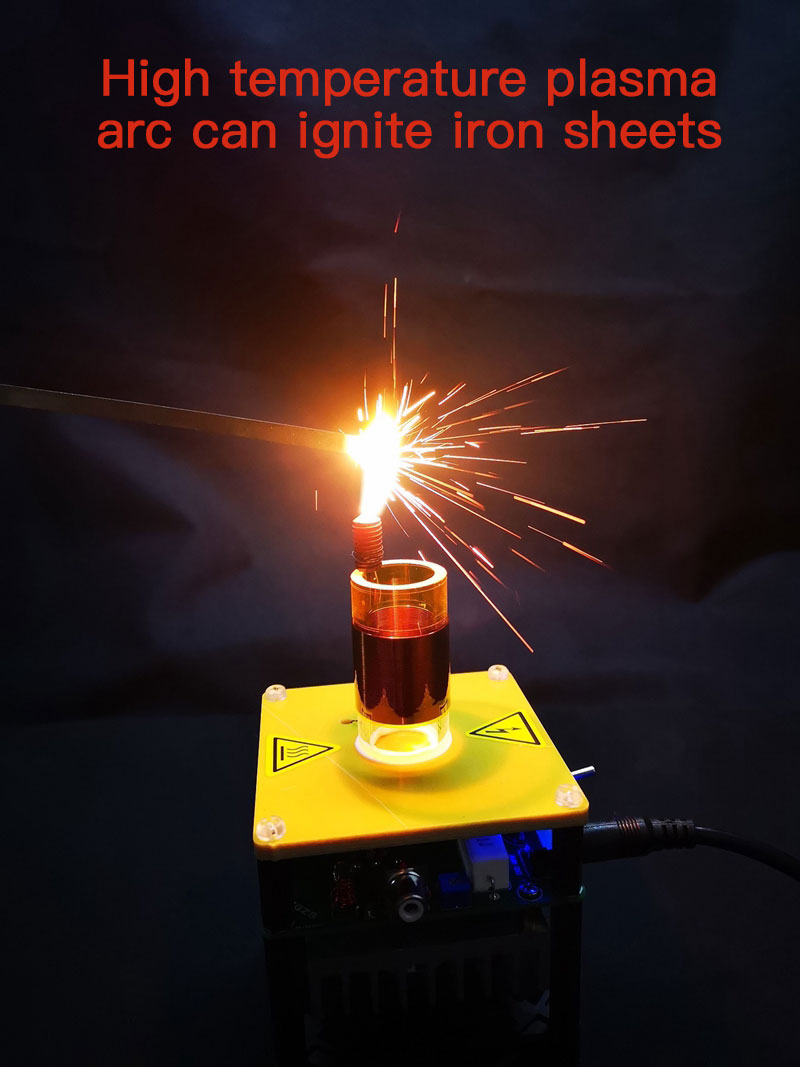

- High temperature plasma arc can ignite iron sheets
- A brand new switching power supply included, with power corded connected before delivery
- Easy to wire. Just plug a power cord into the socket and turn it on to work. Grounding is not required
- Support music in all formats

Package Included:
- 1 x Tesla Coil

Note:
- It is assembled.
- Power supply pictured is not included in the package.
