200W Charger 2CH Fast Charging Module (Main Unit & 1m Type-C+Type-C Data Cable & Power Supply)

200W Charger 2CH Fast Charging Module (Main Unit & 1m Type-C+Type-C Data Cable & Power Supply)

Read before Purchasing:
- The product uses a step-down circuit. It can only output maximum power when the input voltage exceeds 21V.
- Please pay attention to heat dissipation when high power is used. Do not cover the module.
- The product does not support any proprietary protocols.

Features:
- It is a 200W full protocol fast charging module.
- Two independent chips: The desktop charger adopts a two-way design, each with two independent chips. The chips do not interfere with each other and automatically adjust the output power, so that the charging is more stable.
- HD color IPS display: There is a 1.14-inch high-definition IPS screen. A total of three interfaces can be displayed, and the interfaces can be switched by the button on the tail. The first interface can show you the real-time voltage, current, power and fast charging protocol of the two channels. The second and third interfaces show the voltage, current and temperature curves of each channel.
- The main power part is SW3518: We don't use cheap raw materials! We insist on using premium materials! Compared to other similar products, the temperature of this module is reduced when charging at high power! Complete protection measures to make it safer to use! In the fast charging test, when charging, it was 5-10°C cooler than similar products.
- Multiple protection: over-current protection, over-voltage protection, short-circuit protection, over-temperature protection, over-power protection and under-voltage protection.
- Small size and big energy: This product is currently the smallest fast charging module with a display in our store. The dimensions of the main unit are: 84mm x 36mm x 27mm/3.3" x 1.4" x 1.1". The main unit weighs only 97g/0.2lb. Its power is up to 200W.

Specifications:
- Product name: 200W full-protocol fast charging module
- Input voltage: 12-24V DC
- MAX. power: 200W
- Output ports: 2 type-c and 2 USB ports
- Screen size: 1.14"
- Supports PD input: Yes
- Dimensions of main unit: 84mm x 36mm x 27mm/3.3" x 1.4" x 1.1"
- Weight of main unit: 97g/0.2lb
- Multi-channel fast charging at the same time: 2CH
- Features: 2CH simultaneous output and a display for users to view data. Small size

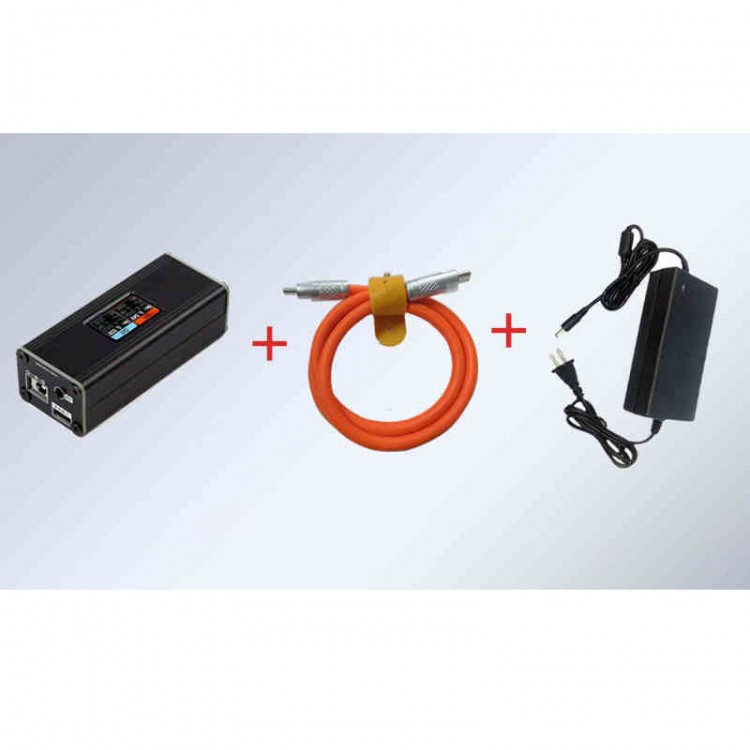

Package Included:
- 1 x Main Unit
- 1 x 1m/3.3ft Type-C+ Type-C Data Cable
- 1 x 24V 10A Power Supply

About Accessories:
- Universal power supply: meets most of the needs of use.
- High-current data cable: Compared with ordinary data cables, it supports high current and the maximum power can reach 120W.

Packaging Details:
- Weight: 0.64kg
