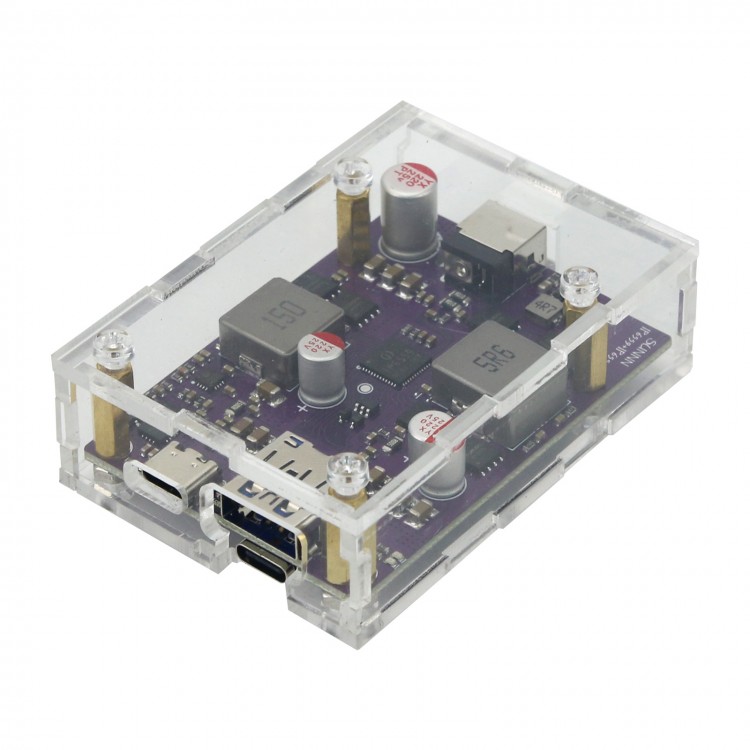

200W IP6559+IP6550 Buck Boost Fast Charging Module with Acrylic Shell Supports PD2.0 and 3.0

200W IP6559+IP6550 Buck Boost Fast Charging Module with Acrylic Shell Supports PD2.0 and 3.0

Attention:
The 4 fixing holes of the module are live and connect the positive and negative poles of the power supply. Therefore, when it is being used, please be careful not to put the module on an iron table or short-circuit screws, and other metals cannot touch the 4 screws and copper pillars.

Read before Purchasing:
- This product is composed of IP6559 and IP6550 dual chips, of which IP6559 is the buck-boost module and IP6550 is the step-down module. So if you want the fast charging module to reach the maximum power, you need to use a 24V power supply, and the full power is up to 200W.
- When the power is greater than 60W, it is recommended to strengthen heat dissipation, such as adding a heat sink on the back.
- The power supply is strictly forbidden to be reversed.
- The 4 fixing holes of the product are electrically conductive. If you need to fix the fast charging module somewhere else, it is recommended to use plastic screws and studs.
- For high-power use, it is recommended to enhance heat dissipation, especially in summer.

Description:

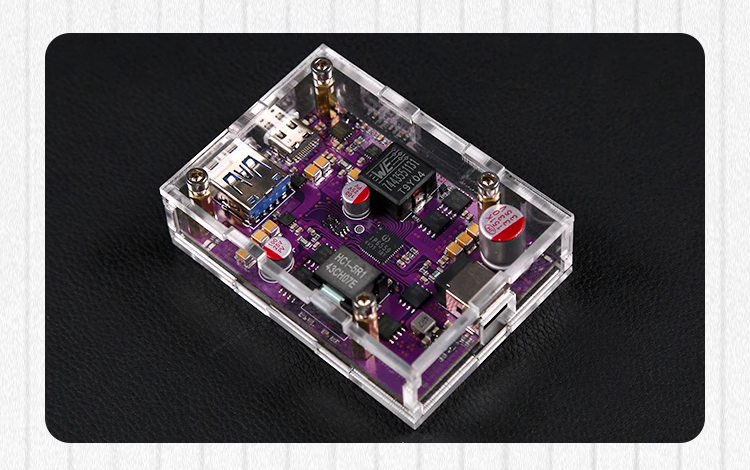

This module is our latest stackable fast charging module. It is a fast charging module with buck-boost voltage and USB port. Other modules can be superimposed on the previous fast charging parallel board.

The main control of the product is composed of IP6559 buck-boost and IP6550+sw2303 step-down circuits. So both chips can output up to 100W at 24V for fast charging. If the input is 12V, only IP6559 can output up to 100W, because IP6550 is a step-down fast charging module.

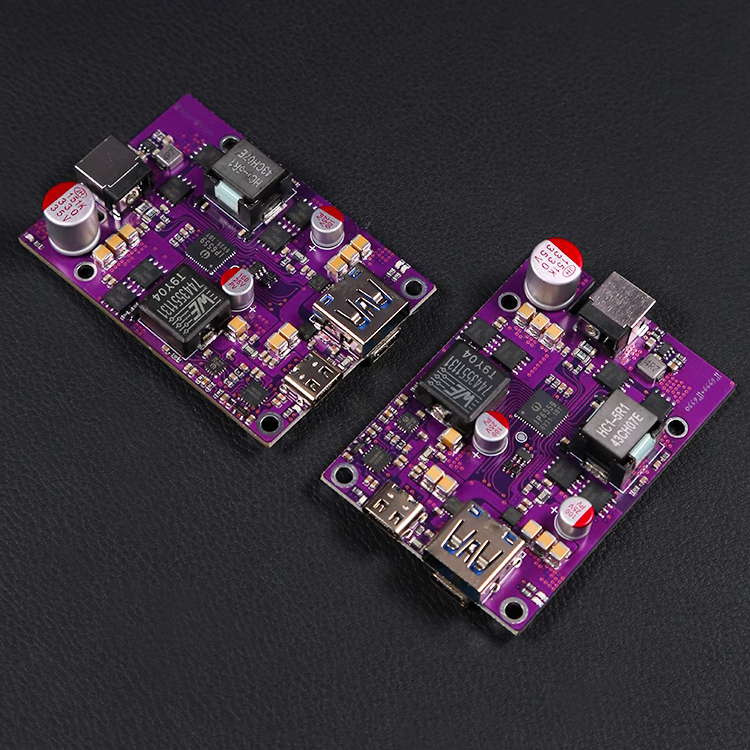

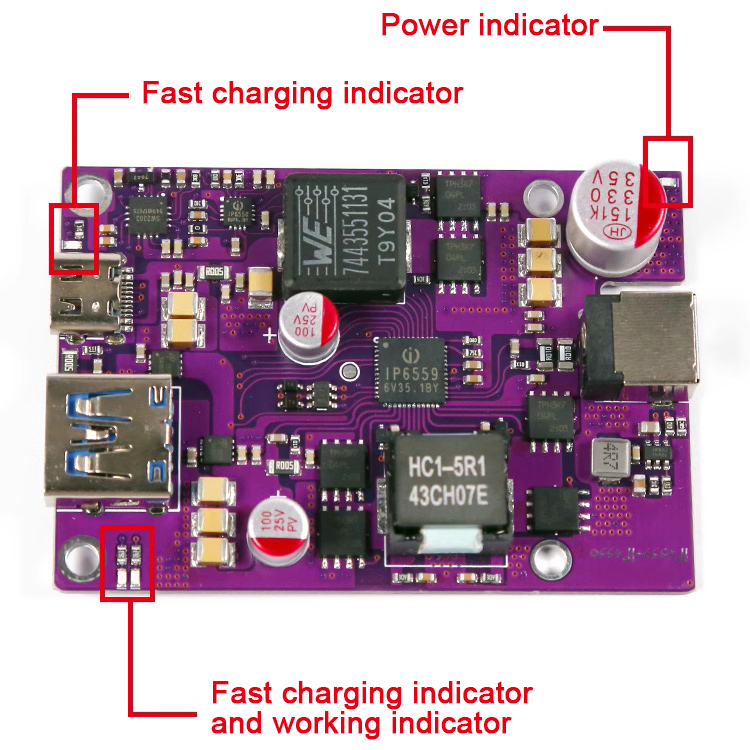

TPH3R704PL MOSFETs of the product, imported from the United States, are one of the best MOSFETs we have ever used. They greatly reduce heat generation and improves efficiency. The module also adopts a new imported inductor. There are multiple LEDs on the product, namely the power indicator at the rear, the fast charging indicator next to the C port on the left, and the IP6559 working indicator and fast charging indicator on the right.

We researched a variety of options at the beginning of the design to improve the circuit and reduce the heat generation by more than 30%.

Features:
- Buck-boost fast charging module: IP6559 + IP6550 modules. This fast charging module can be stacked with other modules.
- IP6559 + IP6550 modules: The main control of the product is composed of IP6559 buck-boost and IP6550+sw2303 step-down circuits. So both chips can output up to 100W at 24V for fast charging. If the input is 12V, only IP6559 can output up to 100W, because IP6550 is a step-down fast charging module.
- LED indicators make it easy to use: There are multiple LEDs on the product, namely the power indicator at the rear, the fast charging indicator next to the C port on the left, and the IP6559 working indicator and fast charging indicator on the right.
- High-quality materials ensure low heat generation and high efficiency: TPH3R704PL MOSFETs of the product, imported from the United States, are one of the best MOSFETs we have ever used. They greatly reduce heat generation and improves efficiency. And a new imported inductor is used.

Specifications:
- Item name: Dual-module buck-boost fast charging module (with acrylic shell)
- Dimensions: 72mm x 52mm x 22mm/2.8" x 2" x 0.9"
- Weight: 79g/0.2lb
- Power: 100W+36W at 12V; 100W+100W at 24V
- Input: DC5.5*2.5mm socket
- Voltage: 12V-24V

Package Included:
- 1 x Fast Charging Module

Packaging Details:
- Weight: 0.25kg
