2017 10MHZ SINE WAVE GPS DISCiPLINED CLOCK GPSDO + Distribution amplifier OCXO

10MHZ SINE WAVE GPS DISCiPLINED CLOCK GPSDO + Distribution amplifier OCXO

                     Version: 2017-03-29


Feature:
-  NAME:GPS DISCIPLINED CLOCK
- POWER:DC11.7-12.9V、<=15W
- GPS ANT POWER:DC3.3V
- 1PPS OUTPUT:SQUARE WAVE,3.3Vpp
- 10M OUTPUT :SINE WAVE,1Vrms (13dBm+-2dB)
- RS232 OUTPUT:GPS NMEA SIGNAL
- ACCURACY:above than OCXO 2 order of magnitude
- SIZE:W*H*D=107*55*122mm(INCLUDE BNC CONNECT)
- ACCESSORY:AC110-220-DC12V ADAPTER,GPS ANT.

2. 10MHz Distribution amplifier,10MHz OCXO frequency standard,8 port output
Note: This item include the uct108663 OCXO! or other brand

Specification:
- POWER:DC11.7-12.9V,MAX:18W
- INPUT:10M,0.1Vpp-5Vpp
- OUTPUT:8 PORT 1vrms(13dBm)
-  LED:PWR:POWER
        EXT 10M:extern 10M input
        ERROR:not output(inside OCXO error )
- accessory:AC110-220V-DC12V /1.5A
- SIZE:W*H*L=100*55*120 （include BNC connect）
- weight:600g(net weight),800g(include adapter,package)

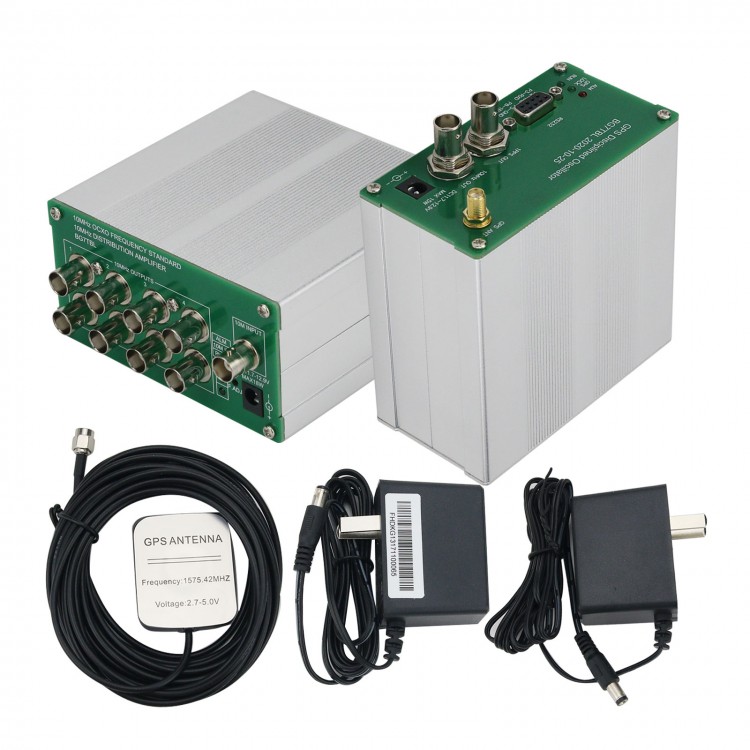

Item include
-  Distribution amplifier OCXO + 10MHZ SINE WAVE GPS DISCiPLINED CLOCK GPSDO
-  Power Adapter
