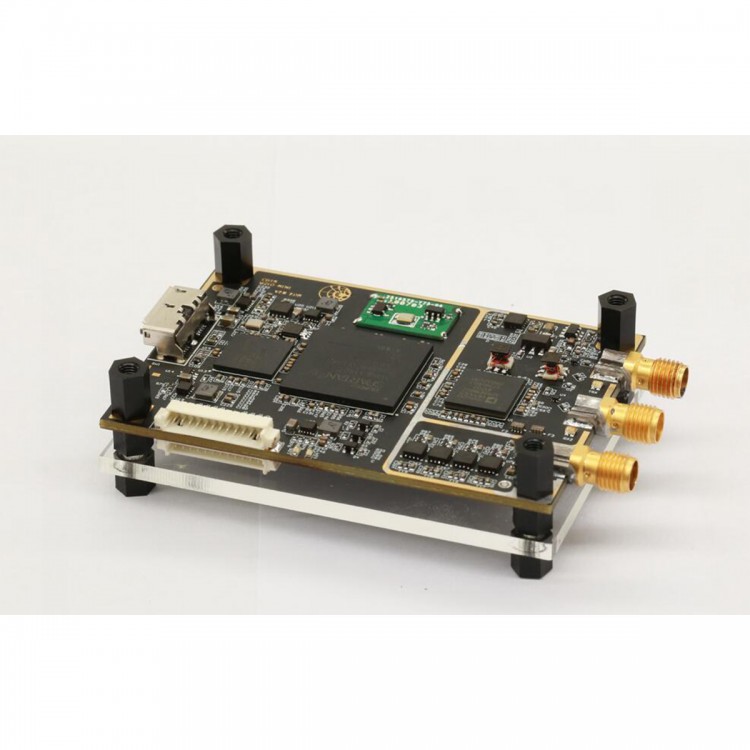

Fully compatible with USRP B205mini high performance SDR, with clear case.
Features:
- Wide frequency range: 70 MHz - 6 GHz
- Up to 56 MHz of instantaneous bandwidth
- Full duplex operation
- User-programmable Xilinx LX150 FPGA
- Fast and convenient bus-powered USB 3.0 connectivity
- Synchronization with 10 MHz clock reference or PPS time reference
- GPIO and JTAG for control and debug capabilities
- Full aluminum enclosure
- USRP Hardware Driver™ (UHD) open-source software API version 3.9.0 or later
- GNU Radio support maintained by Ettus Research™ through GR-UHD, an interface to UHD distributed by GNU Radio
- In the reception test of CW modulated signal, 6DB signal-to-noise ratio and frequency reception sensitivity within 2G is -122dbm. Receiving sensitivity threshold of 4G frequency -118dbm Above 4G receiving threshold -115dbm
- Emit CW modulation signal, within 3G, the maximum transmitting power is greater than 10DBM, the typical value of 1GHz is 18dbm, and the typical value of 2GHz is 15dbm. The typical maximum value of 4.5ghz is 13dbm. The typical maximum value of GHz is 11dbm.
Applications
- Hobbyists and New Users
- The powerful UHD software API reduces the learning curve
- and provides a quick start experience for new users and longtime
- hobbyists interested in AM/FM applications, cellular communication, and algorithm exploration.
Wireless Signal Discovery and Analysis
- The content-rich GNU Radio community provides a wide range of tools and algorithms that enable discovery and analysis ofair interface protocols.
OEM and Integration
- The compact form factor and cost-effective design of the B200mini Series make it ideal for integration into larger systems for prototyping and deployment. The 10 MHz ref/ PPS and GPIO features provide seamless synchronization and
Package:
- 1 x sdr board(with clear case)
- 1 x USB cable
- 1 set screw
