2020 Version U5 Link For ICOM Radio Connector with Power Amplifier Interface (DIN8-DIN8 Data Cable)

Availability: In stock, usually dispatched in 1 business day

  • Price:$54.97
  • Price in reward points: 550 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $53.87 $52.77 $51.12 $48.92 Contact US
Quantity:

2020 Version U5 Link For ICOM Radio Connector with Power Amplifier Interface (DIN8-DIN8 Data Cable)

Description:

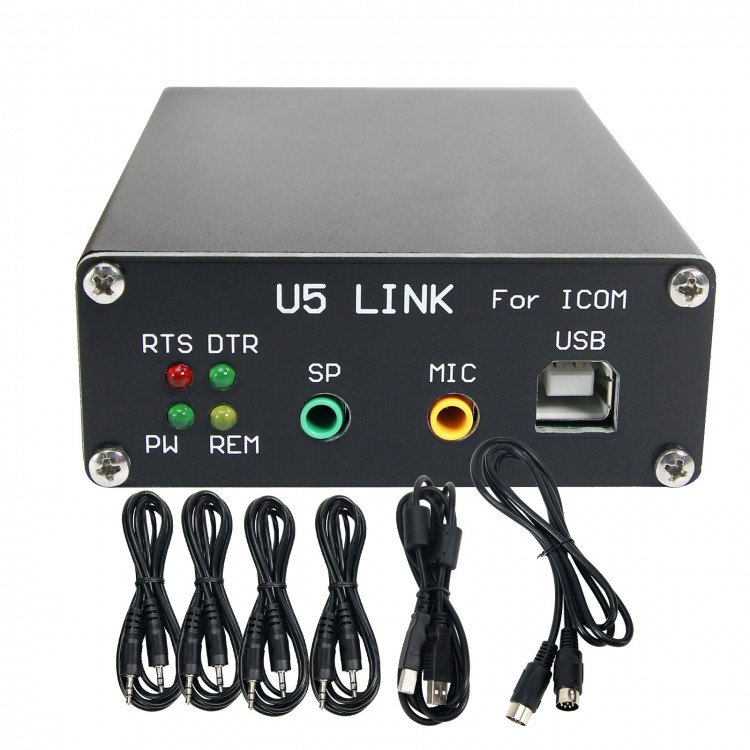

The latest version of U5 ICOM radio connector has upgraded its shell to a black one. With imported advanced USB interface chip, i t can plug and play. Cables are included in the package for easy application. It is a complete full mode LINK. Advanced design, compact size make it be applied to various application environments, compatible with multiple working modes.

Supported Software:

For HRD/DM780/LOGG32/NIMM/WriteLog/ECHOLINK/EasyPal/SSTV/Cw_player/APRS/AGWTracker/MMTTY/EXTFSK/MMVARI/MIXW and the like.

Performance Introduction:
- Imported high-end FT-232RL USB interface chip.
- Imported 6N137 high-speed communications optocoupler, with a rate of up to 115200.
- Data cable and connection cables (can be used for powering) are included.
- Radio remote control supported interface: Full photoelectric isolation; CIV remote control supports 115200 stable high-speed communications.
- Complete supported signal: including TXD \ RXD \ RTS \ DTR \ CTS signals.
- An independent and isolated power amplifier trigger interface provided to support PTT input and PTT output control.
- Support SQL control, CTS signal introduction.
- Custom high-quality sound changes.
- Plug and play, no setup required, no external power required.
- Standardized voice / data radio interface: ACC (DIN 8 specification).
- Professional wave soldering processing, high level of technology.
- Improved ground wire wiring structure.

Download USB Driver:
http://pan.baidu.com/s/1jGFt9PW

Package Included:
- 1 x U5 Link For ICOM
- 1 x Original USB Cable with Large Magnetic Ring
- 2 x Original Audio Cables
- 1 x CIV Remote Control Cable (the same as audio cable)
- 1 x DIN8-DIN8 Data Cable For ICOM

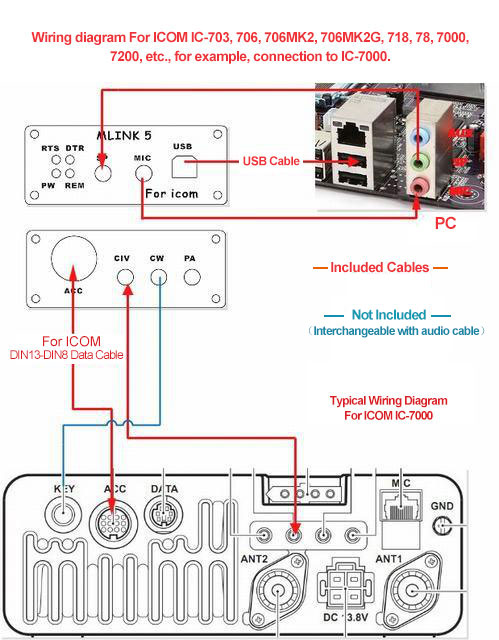

DIN13-DIN8 Data Cable:
- Fit for ICOM IC-703, 706, 706MK2, 706MK2G, 718, 78, 7000, 7200, etc.

DIN8-DIN8 Data Cable:
- Fit for ICOM IC-707, M710, 725, 725A, 726, 728, 729, 735, 736, 737, 738,
746, 746PRO, 756, 756PRO, 756PRO2, 756PRO3, 761, 775, 781, 910, 7400, 7600, 7800 and the like.



Note: Other items in the pictures are not included. Please purchase separately. Thank you!
