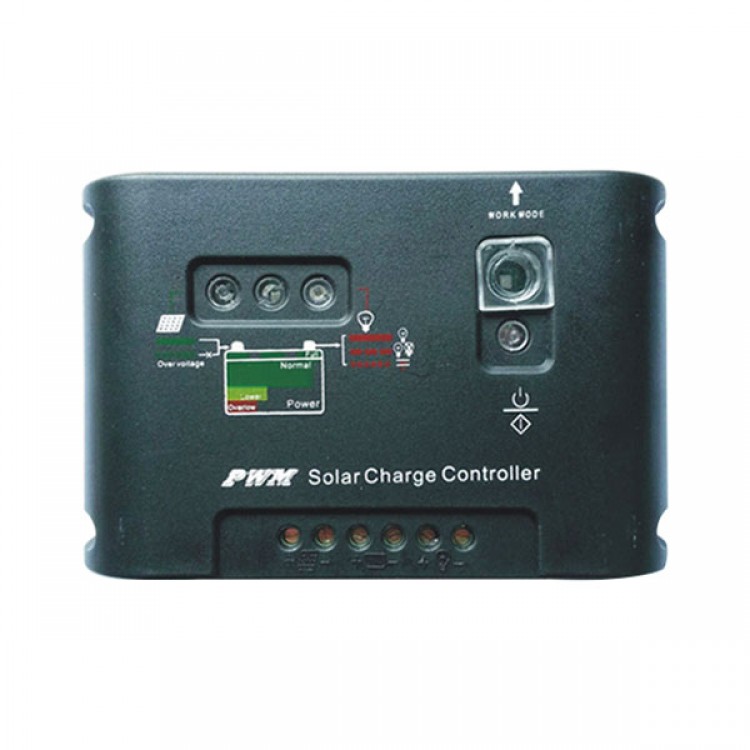

20A 12V/24V PWM Solar Street Light Panel Charge Controller

20A 12V/24V PWM Solar Street Light Panel Charge Controller

Features:
- High Quality
- Overcharging protection.
- Can be used for all panels.
- Overdischarging protection.
- Short and Open Circuit protection.
- Full specification available if required.
- Fail Safe and cannot be damaged by accidental wiring mistakes.
- Advanced design with simple plug and play technology. No need for complicated adjustments.
- Full LED status indication: State of Charge(SOC) Red-Flat Battery: Amber-Low charge: Green- good charge: Green Flashing- Full Charge.
- Type SDRC10(I)
- Rated charge current 20A
- Rated load current20A .
- Work voltage □12v; □12/24V Auto
- Over load, short circuit protection 1.25 rated load current 60sec, 1.5 rated loads current 5sec, over load protection action. ≥3 Rated load current short circuit protection action.
- No load current ≤6mA
- C-harging circuit voltage drop ≤0.26 V
- Load circuit voltage drop ≤0.15 V
- ver voltage protection 17V; ×2/24V
- Work temperature Industry stage：-35℃ to +55℃；
- Boost charge voltage 14.6V；×2/24V； (keep 10min)
- Direct charge voltage 14.4V; ×2/24V； (keep 10min)
- Float charge voltage 13.6V; ×2/24V；
- charge return voltage 13.2v;×2/24V；
- Temperature compensation -5mv/℃/cell (Boost charge, Direct charge, Float charge, charge return voltage);
- Lower voltage indicate 12.0V； ×2/24V；
- Over discharge voltage 11.1V（no load）- real-time modified voltage by the discharge rate； ×2/24V；
- Over discharge return voltage 12.6V; ×2/24V
-Control mode PWM charge mode; modified discharge voltage by the discharge rate

Specifications:
- Color: Black
- Item size: 140*88*25mm
- Net weight: 146g
- Package weight: 163g

Package included:
- 1 x 20A Solar Panel Charge Controller Regulator 12V/24V
- 1 x User manual
