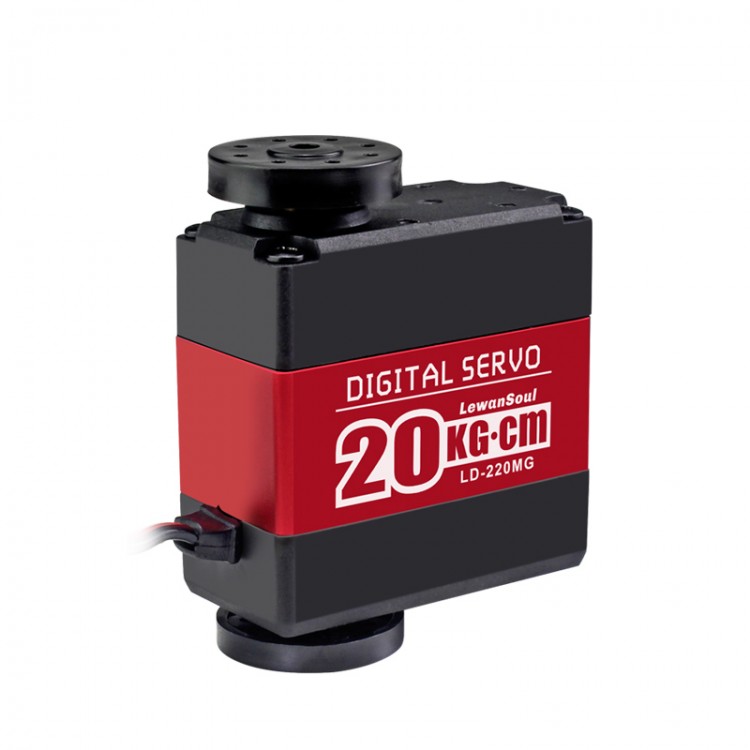

20kg.cm High Torque Digital Servo Metal Gear 180° for Manipulator Mechanical Robotic Arm LD-220MG
Specifications:
- Weight: 65g
- Dimension: 40*20*40.5mm
- Speed: 0.16sec/60° (7.4V)
- Torque: 20 kg•cm 6.6V
- Working Voltage: 6-7.4V
- No-Load Current: 100mA
- Wire Length: 30cm
Package Included:

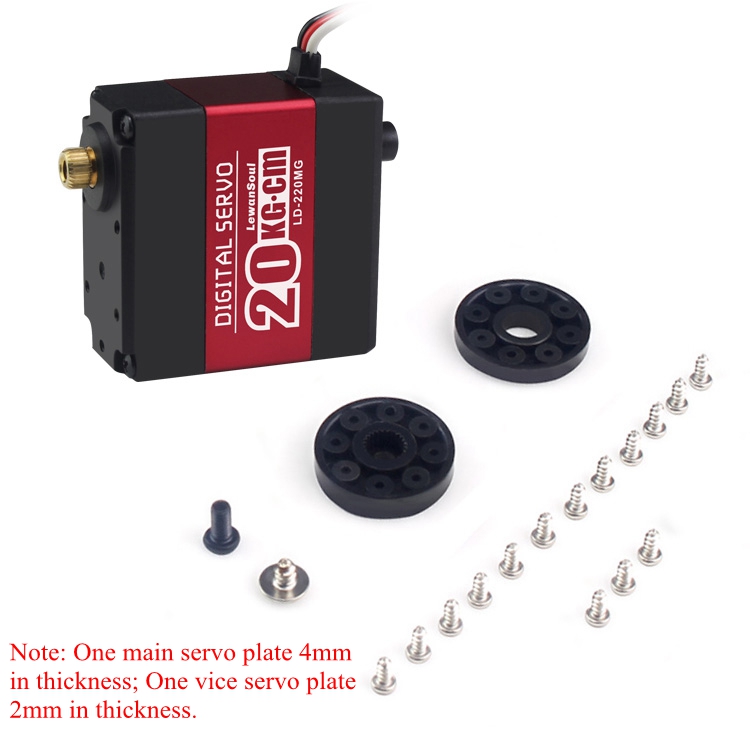

- 1 x Digital Servo with Accessories
Note:
- Please make sure that the duty cycle of the controller you are using conform to our specifications, otherwise the servo can't turn up to claimed degree.
- Please be sure to avoid locked-rotor when using servo, locked-rotor means that artificially or machine obstructs the servo to rotate normally, the locked-rotor will lead to internal current increased to more than 7 times and the temperature increases, servo will burn out.
Attention:
1. It's recommended that use lithium polymer battery with high rate discharge (min 5C), please don't use dry battery.
2. Please use a short and thick power cord, don't use Dupont cord.
