20KHz - 3000MHz RF Wide Band LNA Low Noise Amplifier 32dB High Gain with SMA Female Connector

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.80
  • Price in reward points: 98 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.60 $9.41 $9.11 $8.72 Contact US
Quantity:

20KHz - 3000MHz RF Wide Band LNA Low Noise Amplifier 32dB High Gain with SMA Female Connector

Description:

- This amplifier has the advantages of wide frequency range, high gain, and low noise figure, and can be used in various RF reception front-end to increase communication distance. Places that require low noise and small signal RF amplification, such as large-scale shortwave, FM broadcasting, remote control receivers, and cable TV signal amplifiers.
- The amplifier has high flatness in the band, especially in the operating bandwidth of 100KHz-500MHz, which has a superior flatness of less than 1dB.

Specification:
- Working frequency: 20KHz - 3000MHz
- Working voltage: 9 - 12V
- Working current: 27mA

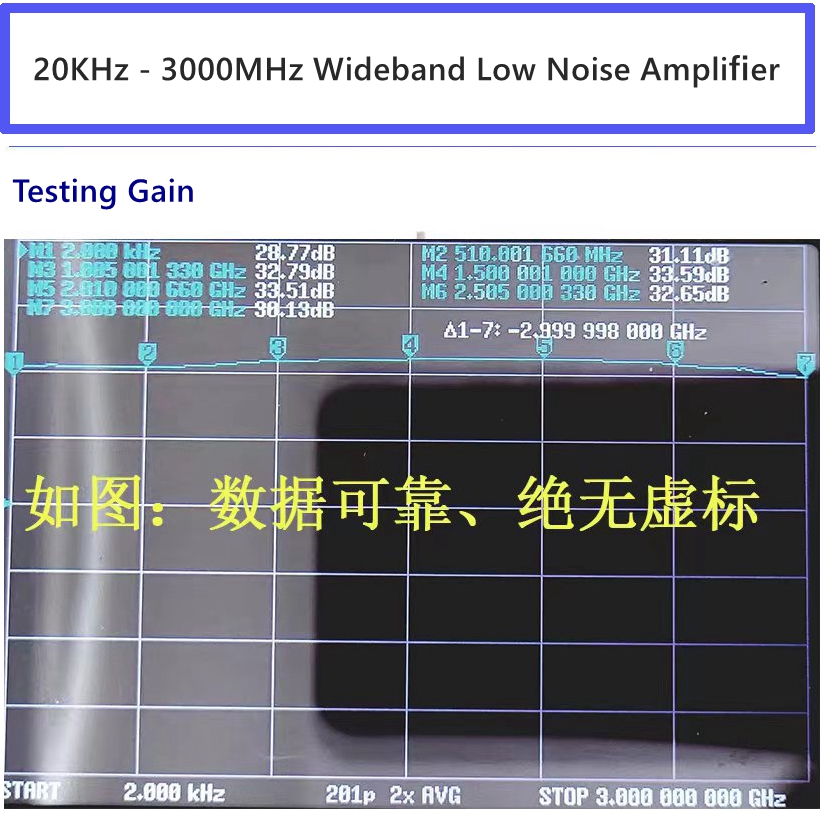

- Amplification gain: 32dB (typ.)
  F=0.1MHz, gain=32dB
  F=500MHz, gain=32dB
  F=1000MHz, gain=32dB
  F=1500MHz, gain=32dB
  F=2000MHz, gain=32dB
  F=2500MHz, gain=30dB
  F=3000MHz, gain=29dB
- Maximum output: 13dBm (20mW)
- System impedance: 50ohm
- Connector type: SMA-K

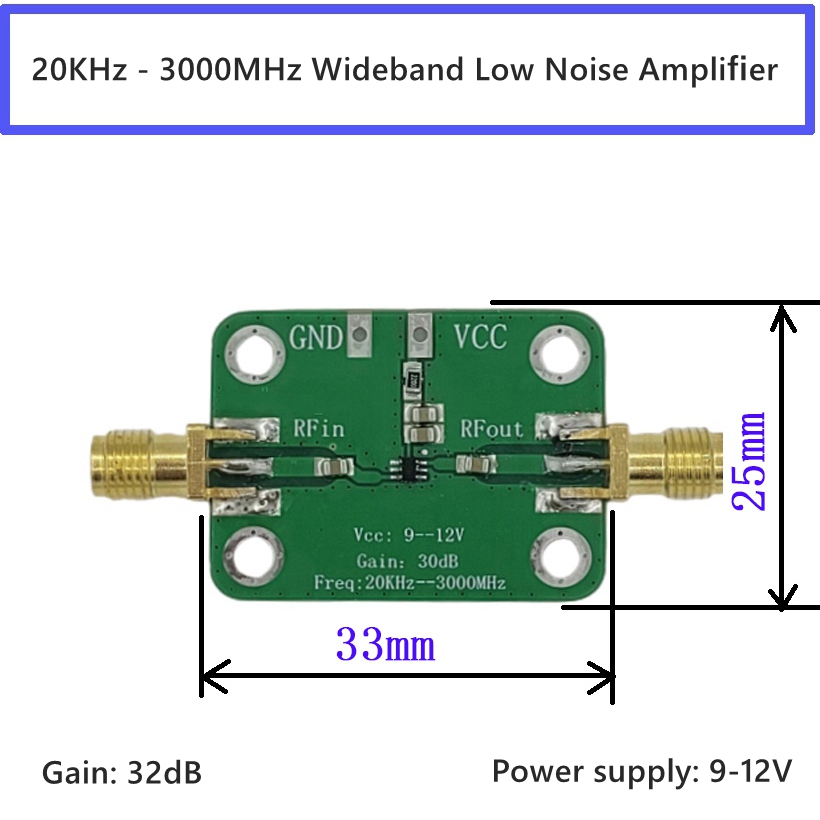

- Size: 25 x 33mm
- Weight: 5.9g

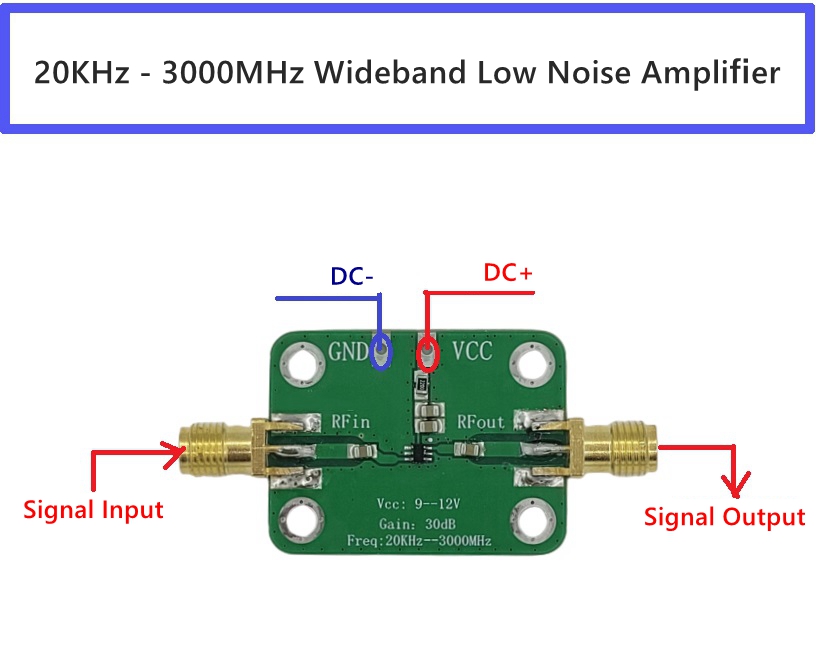

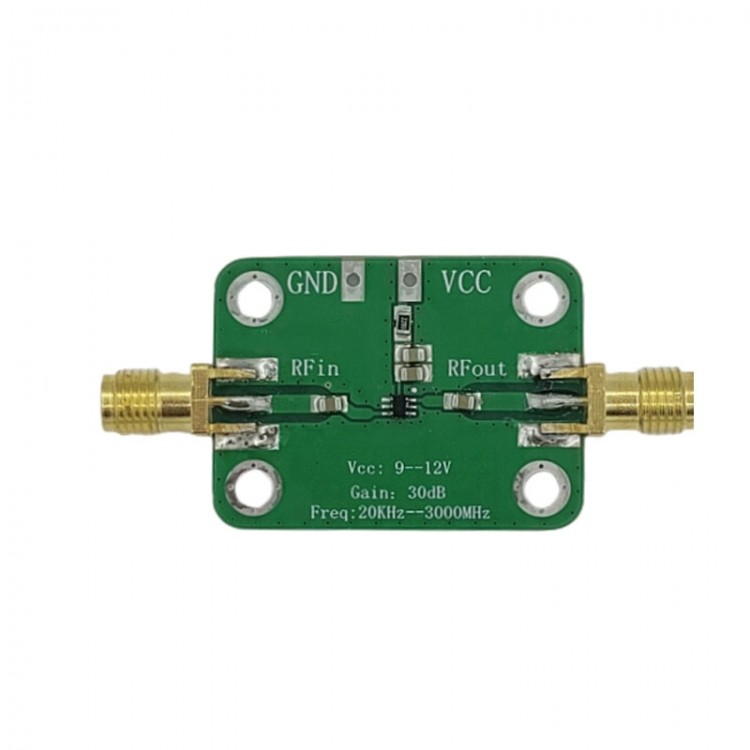

- Instruction:
  RF in: input signal amplification
  RF out: output amplification signal
  VCC: positive power
  GND: negative power

Application Skills:
- The frequency of the amplifier can also be changed by changing the input and output capacitance values to change the low-frequency bandwidth.
  For example, by modifying the 1000NF capacitor, the low frequency can reach 100KHz;
  By modifying the 1UF capacitor, the low frequency can reach 50KHz;
  By modifying the 10UF capacitor, the low frequency can reach 1KHz.
- When the power supply varies between 8-10V, it can be used as a variable gain amplifier. The gain varies with voltage. As the voltage increases, the gain increases, while as the voltage decreases, the gain decreases.
- When the voltage is 9V, the amplifier output gain is 30dB and the noise figure is the smallest.
- The voltage of 12V can achieve a gain of 32dB.

Precaution:
- It is strictly prohibited to operate without load, and the power supply can only be carried out after the input and output are connected.
- The positive and negative poles of the DC when connected should be confirmed multiple times, reverse connection will cause module damage.

Package Included:
- 1 x LNA Module
