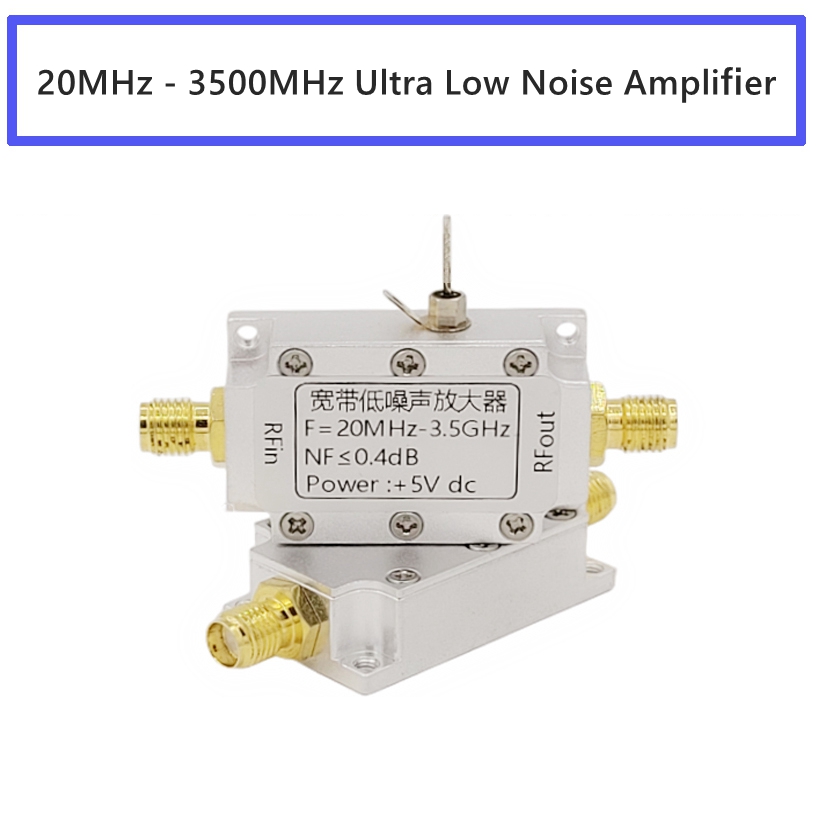

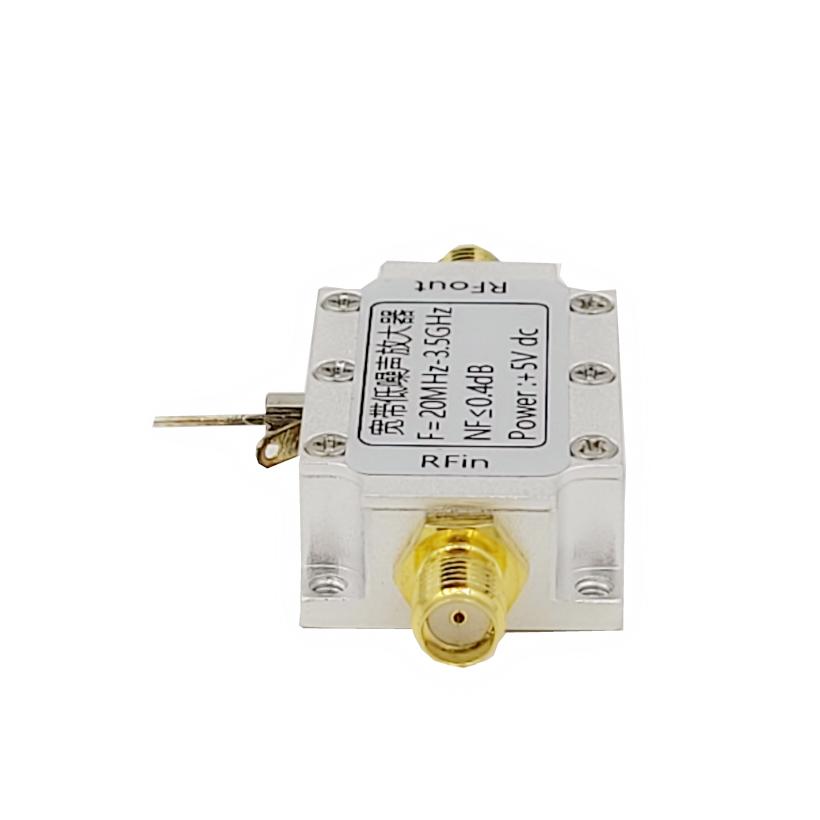

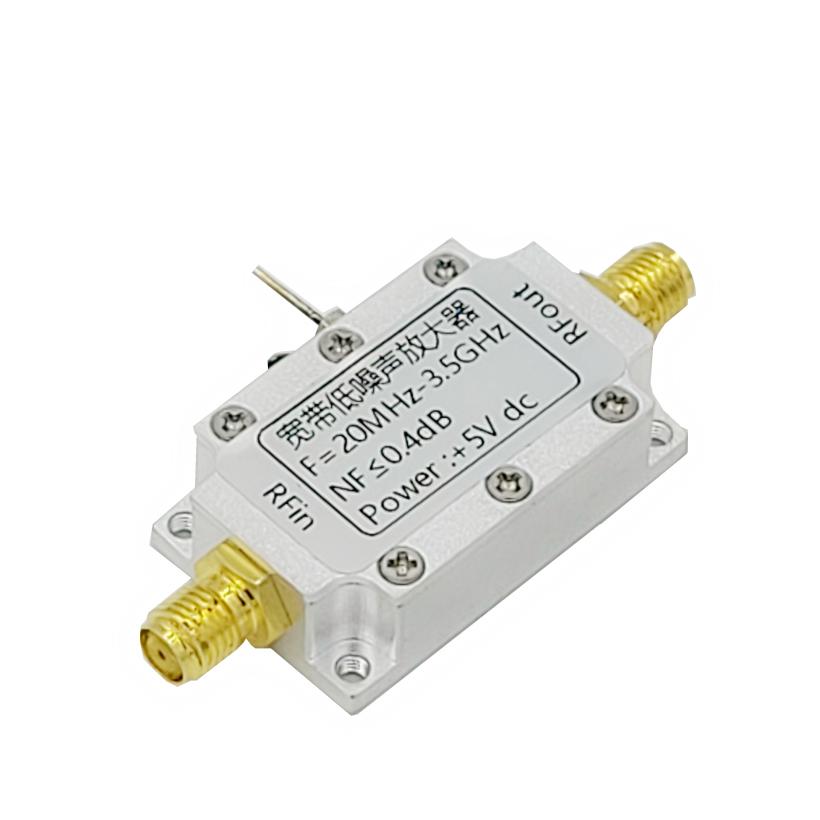

20MHz - 3500MHz LNA Low Noise Amplifier RF Amplifier Module SMA Female Connector (with Welded Power Supply Module)
Specification:
- Bandwidth: 20MHz - 3500MHz
- Applicable frequency band: VHF, UHF, for Beidou, positioning, navigation, VTX, etc.
- Power supply: 3V - 5V/49mA

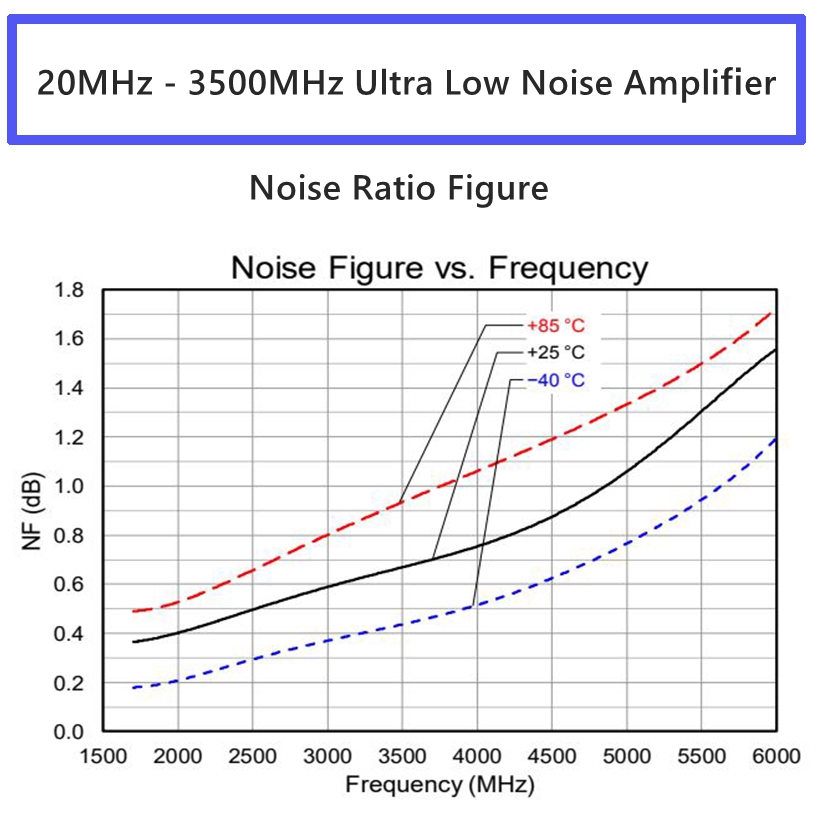

- NF: <0.4dB (Typ.)
- Maximum input power: ≤0dBm
- Maximum output power: 160mW (22dBm)
- Input and output impedance: 50ohm
- Input voltage VPP: <0.225V
- Connector type: SMA female connector

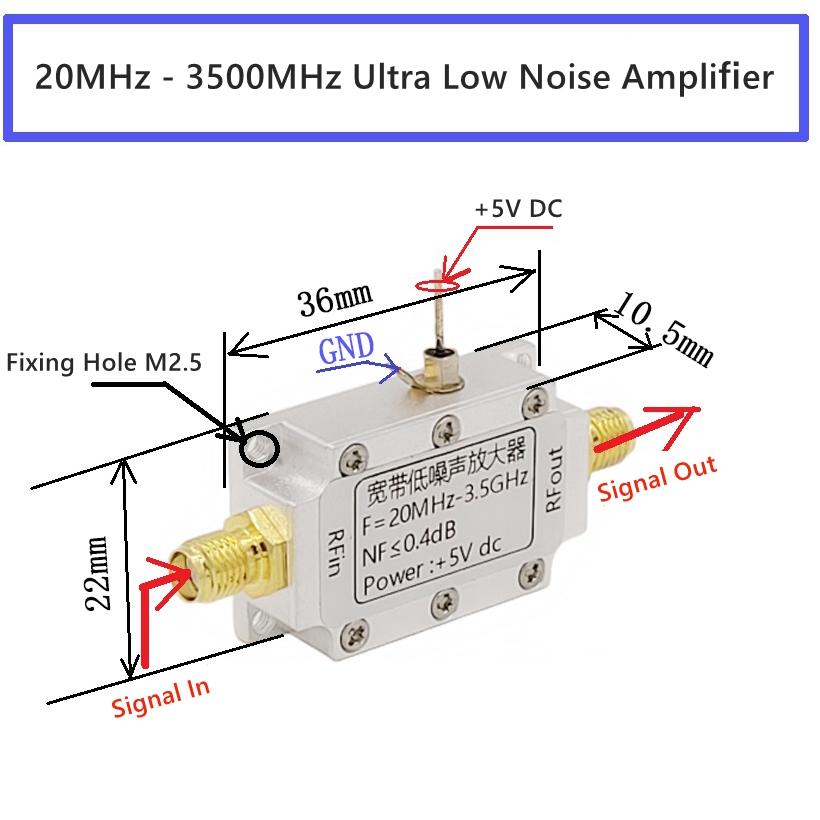

- Size: 33 x 21 x 10.5mm
Precaution:
- It is strictly prohibited to operate without load, and the power supply can only be carried out after the input and output are connected.
- The positive and negative poles of the DC when connected should be confirmed multiple times, reverse connection will cause module damage.
Package Included:

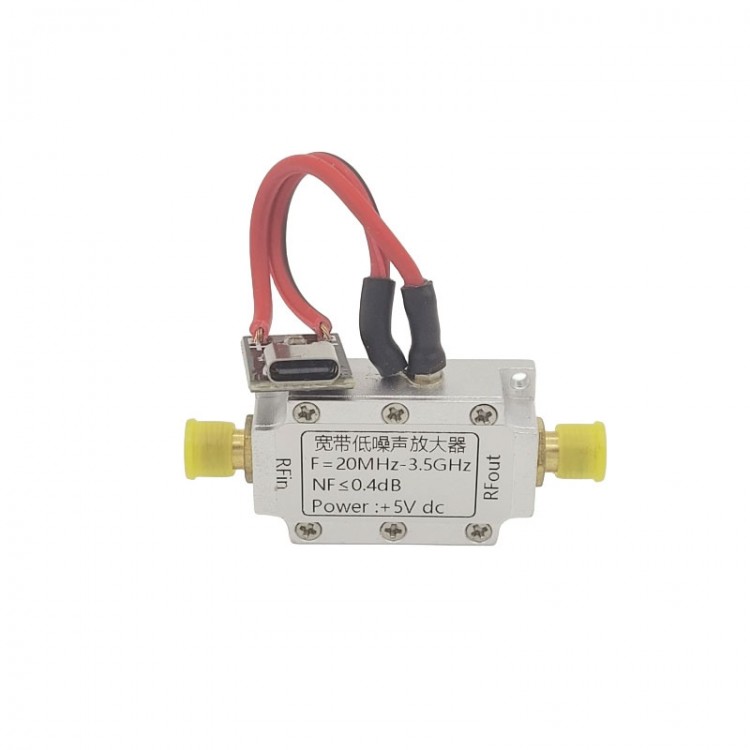

- 1 x Low Noise Amplifier (with Welded Type-C 5V Power Supply Module)
