20MHz-6GHz LNA 30DB V1 High Gain Wideband RF Low Noise Amplifier for Radio Receivers Communication

20MHz-6GHz LNA 30DB V1 High Gain Wideband RF Low Noise Amplifier for Radio Receivers Communication

Application:
- This amplifier has the advantages of wide frequency range, high gain, low noise figure, etc. It can be used in various RF receiver front-end. Connecting this low-noise amplifier below the antenna can amplify the weak signal received by the antenna, thereby expanding the receiving distance and increasing communication distance. Widely used in handheld, car mounted walkie talkies, various remote controls, relay receivers, various radio receivers, FM broadcasting receivers, TV receivers, and other places that require low noise and small signal RF amplification. In addition, due to the ultra wide bandwidth of the amplifier, it can also be used for radio management, testing full frequency spectrum reconnaissance, and EMC electromagnetic compatibility testing at the receiving end.

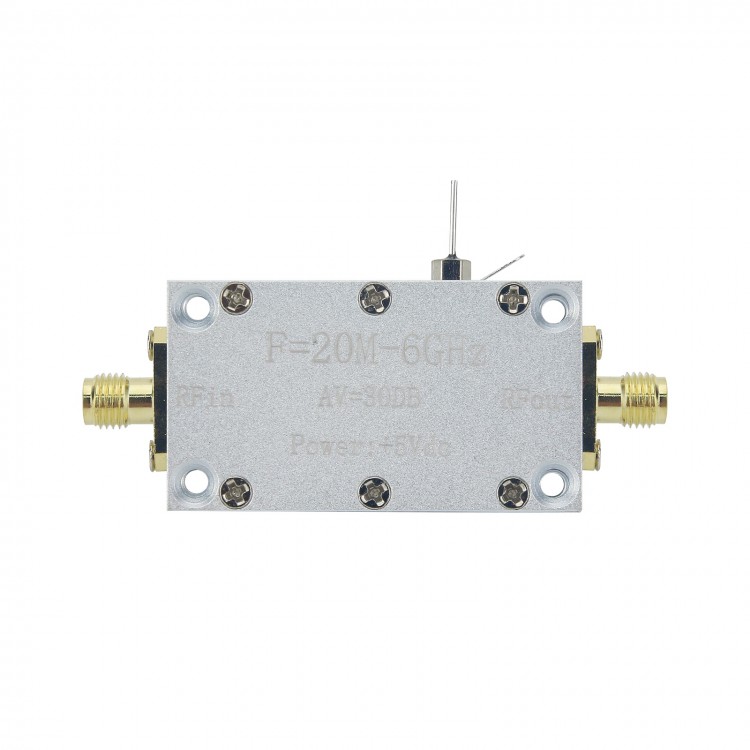

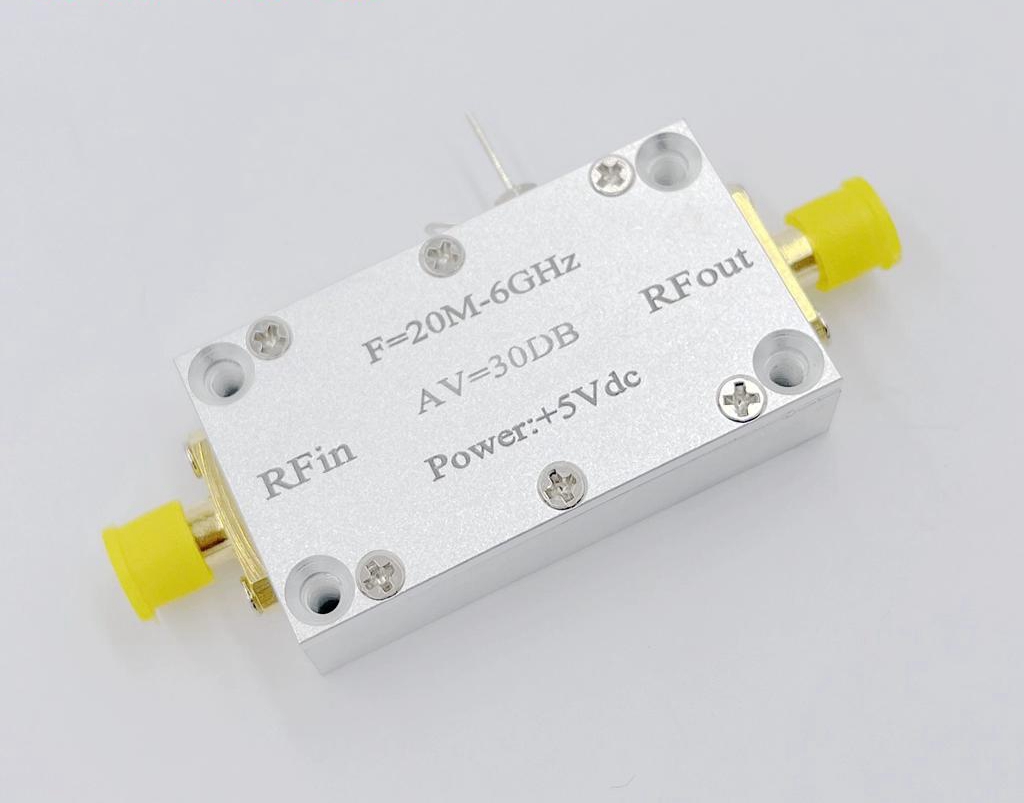

- This amplifier is made of aviation aluminum alloy milled by CNC machining, with high accuracy, light weight, and a natural color conductive oxidation treatment on the surface. Its conductivity and electromagnetic shielding effect are excellent. It can effectively shield its own radiation and isolate radiation from the external environment. The power supply port adopts a RF through core capacitor, which can effectively filter out clutter such as spikes on the power supply.

Specification:
- Working frequency: 20MHz - 6000MHz

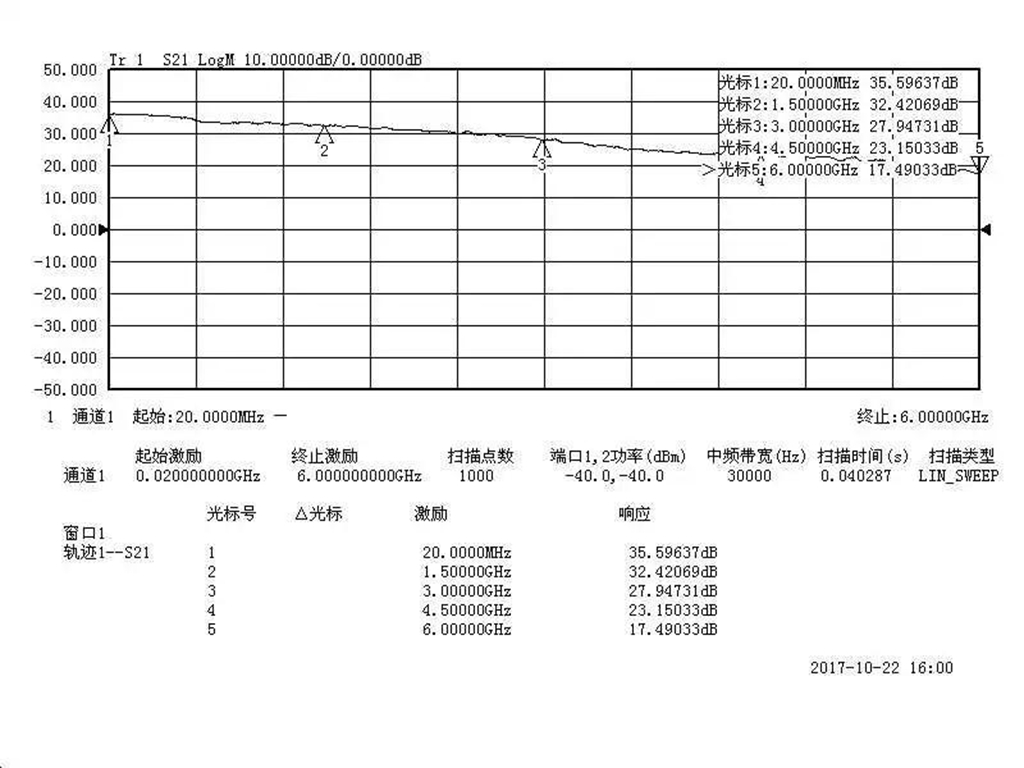

- Gain: > 30dB (29dB gain at 3GHz)

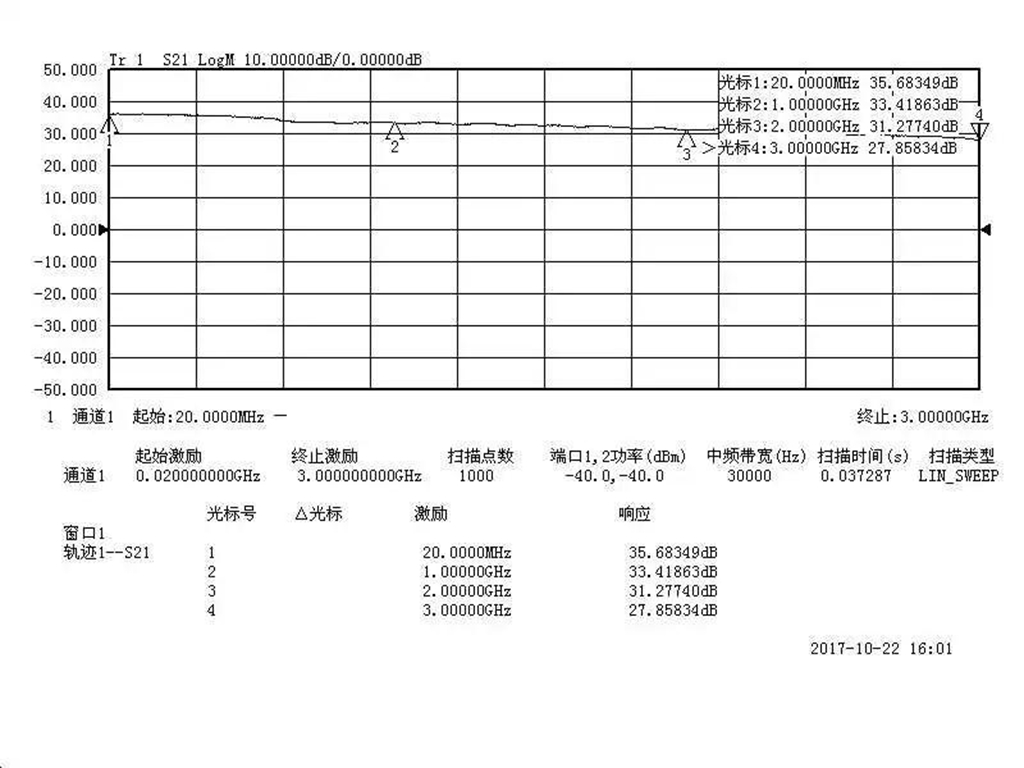

- Gain flatness: 33dB gain at 20MHz, 3GHz at 29.5dB
- Maximum output power: +17dBm (50mW) at 1dB compressed point

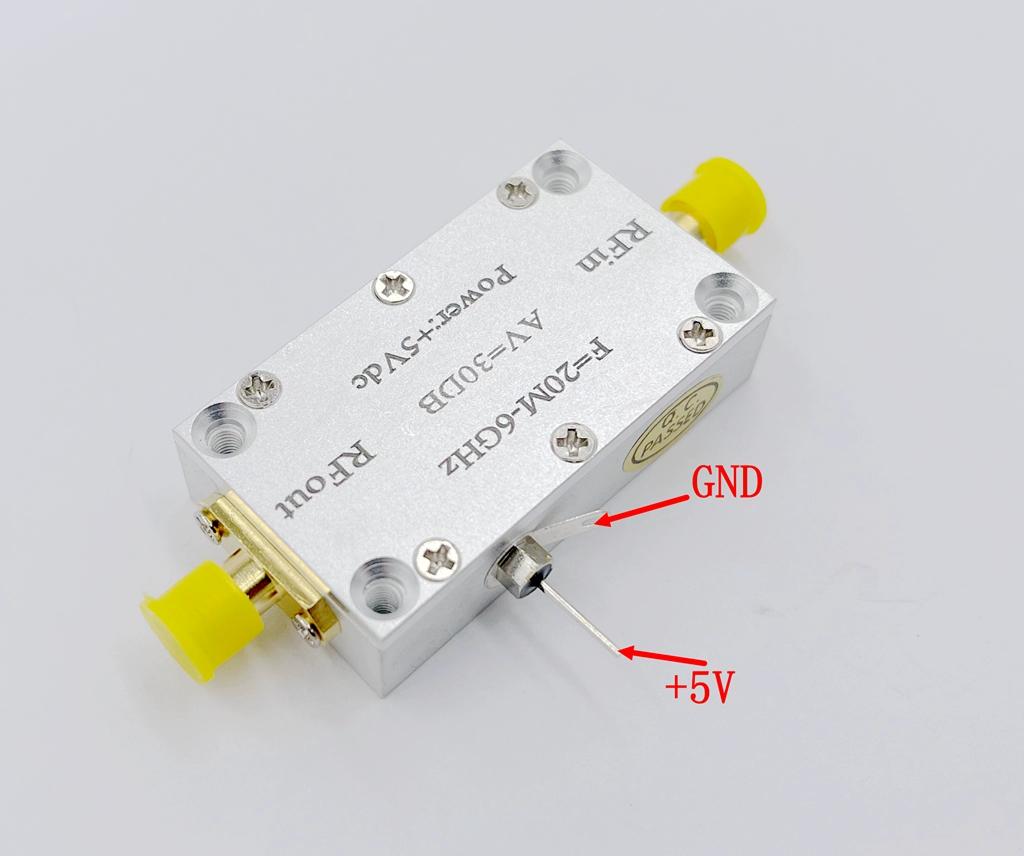

- Power supply: 5V, current 110mA

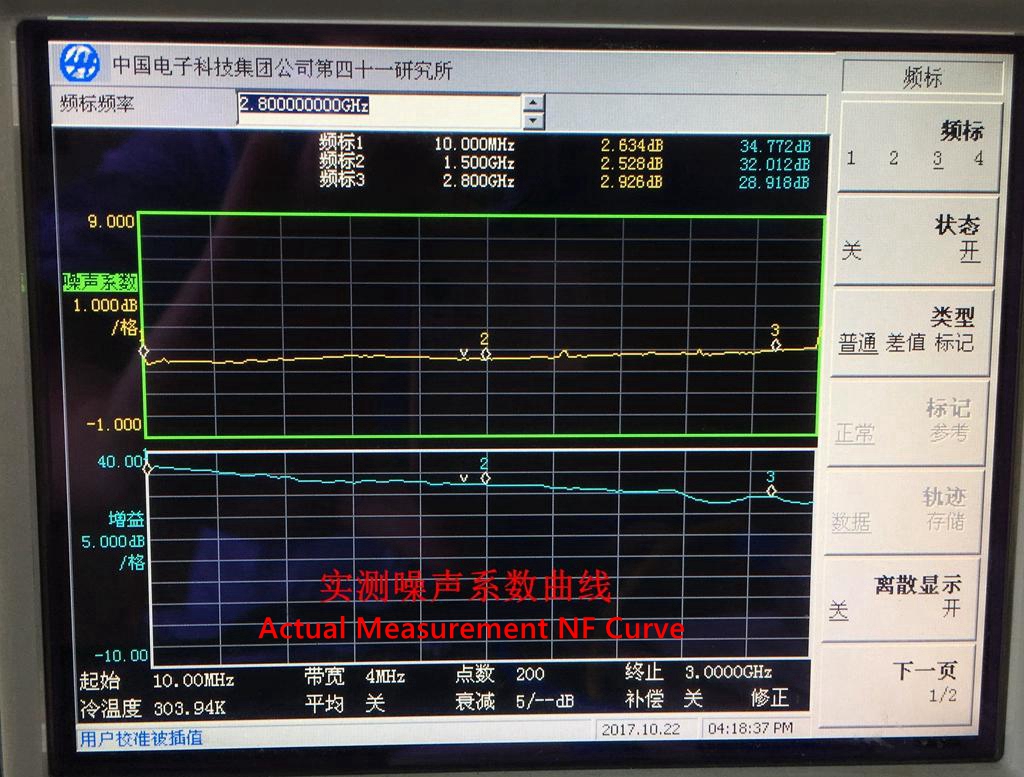

- NF: < 2.5dB

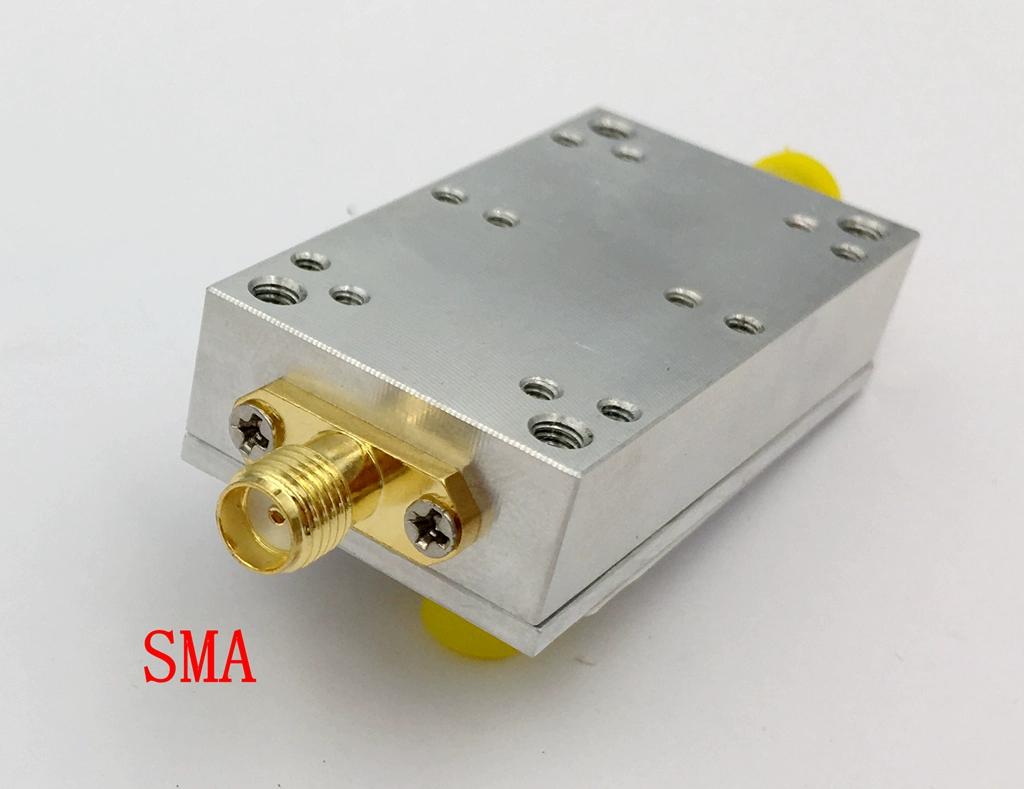

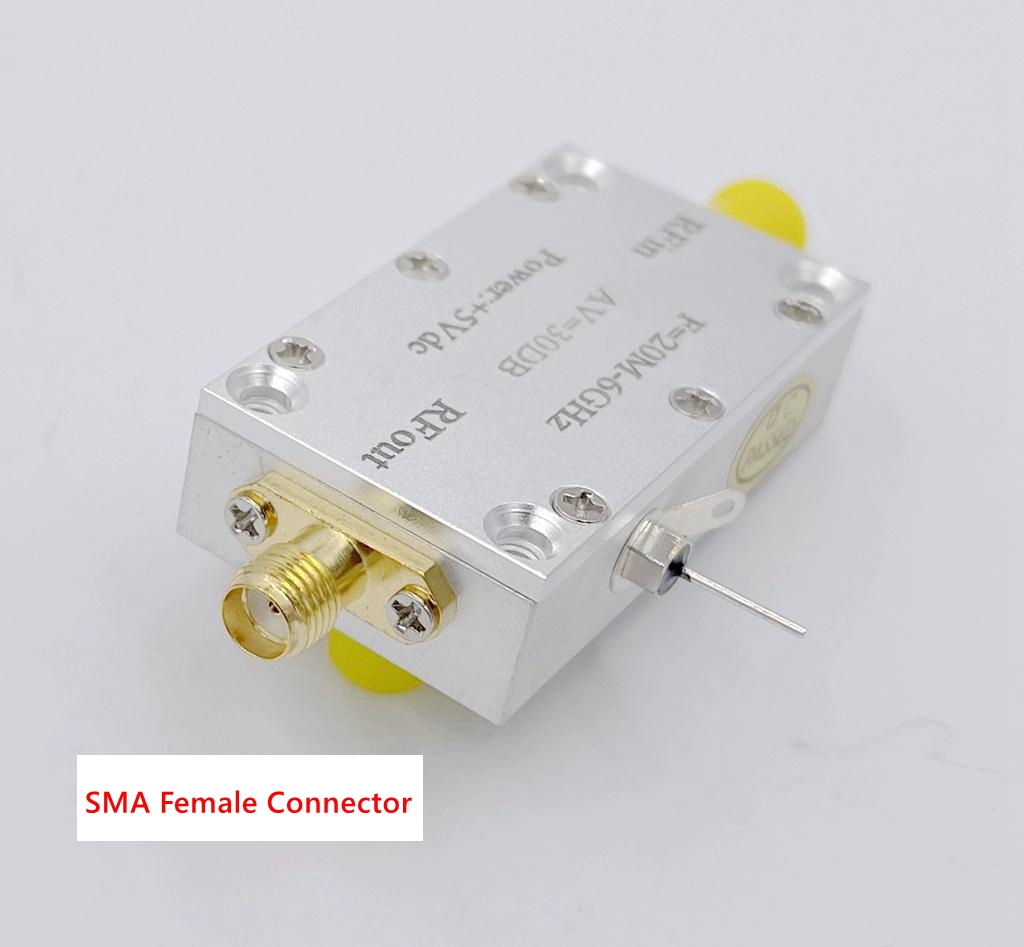

- Size: 45 x 25 x 12mm (excluding the SMA connector length)

Package Included:
- 1 x Low Noise Amplifier
