Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $213.37 | $209.01 | $202.48 | $193.77 | Contact US |
Description:
- 15W-20W FM stereo PLL broadcast transmitter radio station +Range Max Pro 1/4 Gp Antenna + DC Power
- 1/4 wave Professional GP Antenna for 5w,7w,15w,30w,50w,100w FM Transmitter BNC or NJ with 8meters 26ft. cable
- Connector: There are 3 types antenna interface for this product, BCN, TNC & NJ interface.
- Default shipping item is with BNC interface.
- To
make sure you can use this product, before your purchasing, please
tell us your transmitter's model number so that we can send you the
right item with correct antenna interface. Many thanks! e.g:
- CZH-05B,CZH-5C,CZH-7C,CZH-15A:BNC type interface;
- CZH-01A,CZH-15B:TNC type interface ;
- CZH-10A:NJ type interface;
Specification:
- Dual MIC / 4-way adjustable volume /
- DC input: 2.5mm
- Input voltage: DC12V - 13.8V
- Operating current: 2.5A
- Frequency: 88.0~108.0MHz
- Modulation: WFM
- Frequency Step: 0.1MHz
- Frequency stabilization method: PLL
- Deviation: ±75KHz
- RF Output: 15W-20W (Max 20W )
- Output Impedance: 50Ω
- Harmonic radiation:-60db
- Frequency Response: 50~1500Hz
- Distortion: 0.2%
- Pre-emphasis delay: 50us
- Stereo Separation: 40db
- Input level:-15dbV
- Input impedance: 50KΩ
- SNR: 65db
- Match the microphone: ECM mice
- Size: 197*122*45mm
- Color: Silver

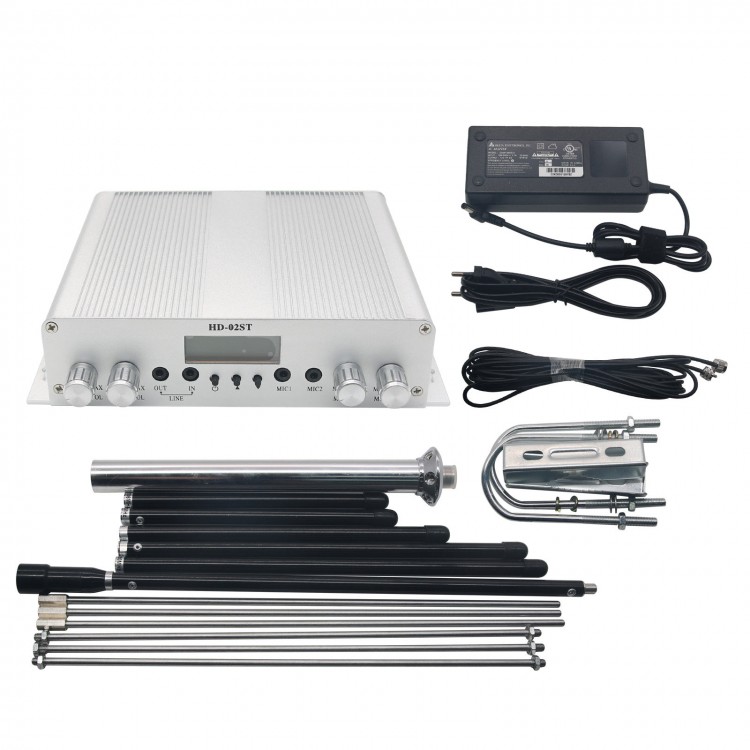

Package include:
- 1 x FM Transmitter
- 1 x DC POWER
- 1 x Professional Antenna
