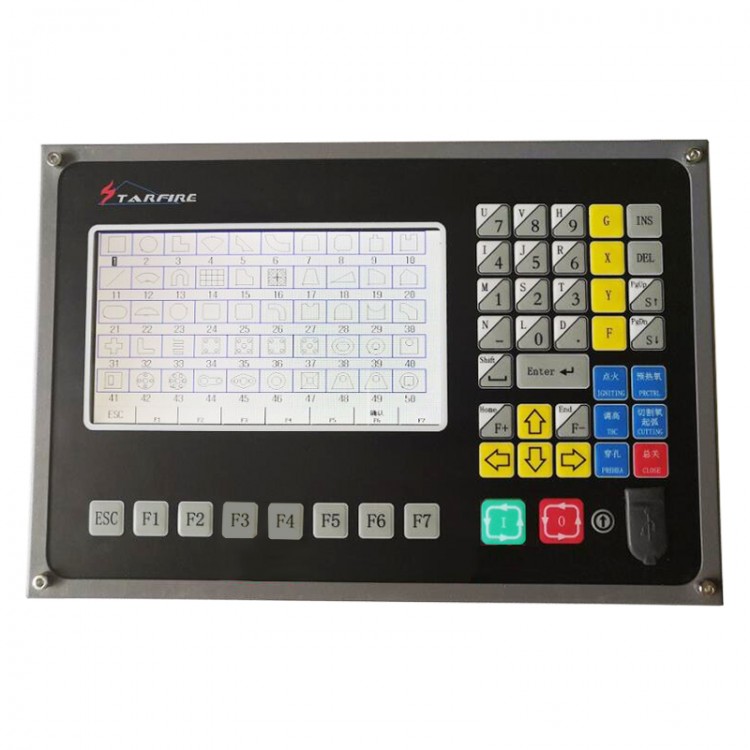

2100C 2 Axis CNC Controller CNC Motion Controller Gantry Flame Plasma Cutting Machine System
Attention:
We can weld and configure line from system motor interface to your drive, as well as the system input and output lines. Make your installation and transformation more convenient and quicker. If needed, please contact us when purchasing.
Description:
2100C system runs faster, has larger storage space, and is more convenient to operate.
Hardware Technical Indicators:
- Adopt industrial advanced performance CPU for ARM, main frequency up to 400MHz;
- Run memory 64M, can process super large processing program (2100C system memory 4G);
- Use 7-inch true color LCD screen with a resolution of 800*480;
- Large physical buttons, good hand feeling and long life;
- The pulse output frequency is not less than 500KHz, and the maximum output frequency of single-axis pulse reaches 1MHz;
- Number of linkage axes: 2 axes, can be expanded to 3 axes;
- The user program storage space reaches 4G, which can be expanded to 32G.
System Features:
★ Using industrial-grade chips for ARM, low power consumption, low heat generation, no forced heat dissipation, good three-proof performance, suitable for complex working conditions;
★ The hardware is highly integrated, the design is mature and stable, and it can prevent strong plasma interference, lightning strikes, and surges. The product has passed EMC test;
★ Standard Chinese and English operation interfaces, dynamic graphic display, simulated processing track, real-time display of cutting status and input/output status;
★ Software is rich in functions, with practical flame/plasma cutting process settings, slit compensation, breakpoint recovery, original trajectory back processing, arbitrary block start, arbitrary position adjustment and selection of torch, pre-walking contour, part rotation, mirror, Array, scaling and other processing methods;
★ Equipped with 50 kinds of libraries, with simple layout function, convenient for users to use;
★ Fully compatible with CAD/CAM nesting software for startCAM, FASTCAM, etc.; U disk reading program and software upgrade are adopted;
★ Optional wireless remote control, with control functions such as movement, positioning, acceleration and deceleration, and cutting process.
Technical Index:
★ Number of linkage axes: 2 axes, can be expanded to 4 axes;
★ The highest speed: 30m/min
★ Programming unit: 0.001mm
★ I/O control: 16 inputs (photoelectric isolation), 8 outputs (relay output)
★ User space: 4G large program storage capacity, support external memory
★ Programming method: standard ISO-G code, support manual programming
★ Display: 7 inches, 32 true colors
★ Machine box size: 300×204×93) mm
★ Working temperature: 0℃~55℃
Package Included:
- 1 x Set of CNC Controller
