220V/110V Lithium Battery Cell Balanced Charger 0-6V/0-50A Adjustable for New Energy Vehicles Lithium Battery Charging

220V/110V Lithium Battery Cell Balanced Charger 0-6V/0-50A Adjustable for New Energy Vehicles Lithium Battery Charging

Description:
- This product is not a regular charger. It has an input voltage of 220V (which can also be switched to 110V, for Mainland China users, please do not switch to 110V, otherwise it will be burned.), an adjustable output voltage of 0-6V, and an adjustable current of 0-50A. Numerical control chips have higher precision. Mainly used for lithium batteries in new energy vehicles due to uneven voltage between individual cells, resulting in short vehicle range. It is also used to supplement the voltage of single cells before assembling large capacity lithium battery packs, or to supplement the voltage of single cells for maintenance and repair of electric tricycles in new energy vehicles. Adjusting different voltages and currents can be applied to the charging balance and replenishment of lithium iron phosphate (or 32650) ternary polymer (18650) and lithium titanate battery cells or strings.

Specification:
- Working power supply: 220V/110V
- Output voltage: 0 - 6V adjustable
- Output current: 0 - 50A adjustable
- Application: charging balance and replenishment of lithium iron phosphate (or 32650) ternary polymer (18650) and lithium titanate battery cells or strings.
- Presets: 8 groups of charging voltage/current data; 3.65V/10A, 4.20V/10A, 2.7V/1A, 3.65V/50A, 4.20V/50A, 2.70V/50A, 3.75V/50A, 4.25V/50A.

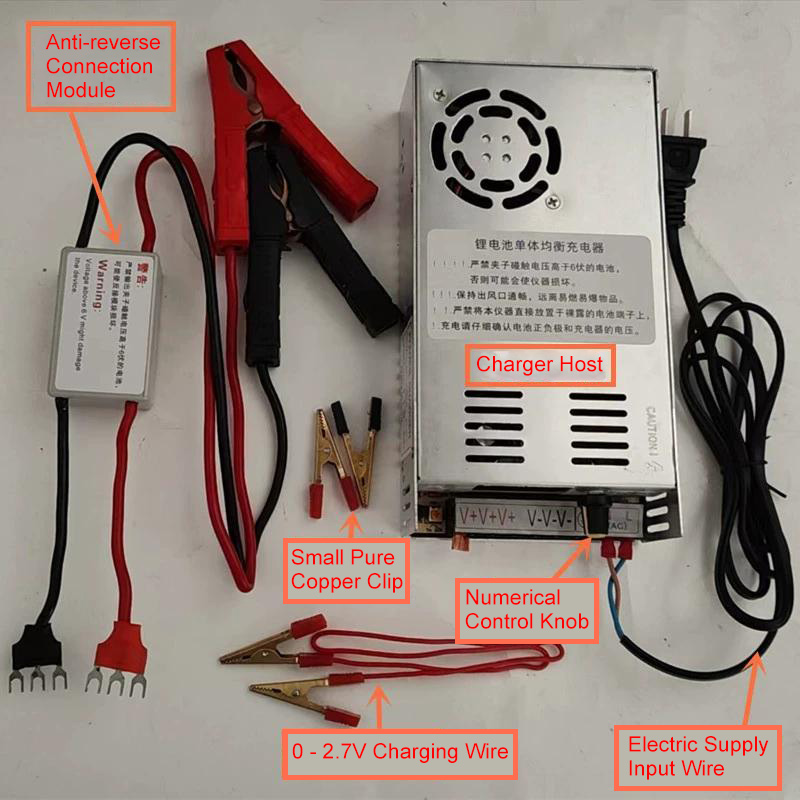

- There is a reverse connection protection module in the middle of the output line, which will automatically disconnect and protect whether the output clip is short circuited or connected to the positive and negative poles of the battery.

Instruction:

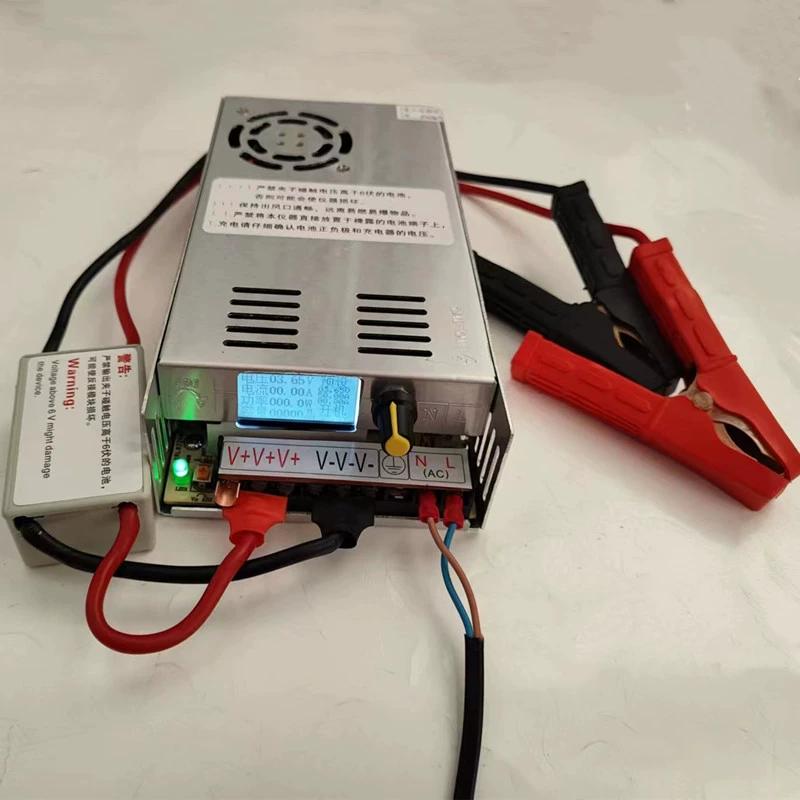

- Test running: the output clip is separated and empty, without connecting the battery. Insert the charger into 220V mains power first, and the display screen will show. Display the main interface 1-2 seconds later. The default delivery is 3.65V 10A output (or output the voltage and current values set before the last shutdown)

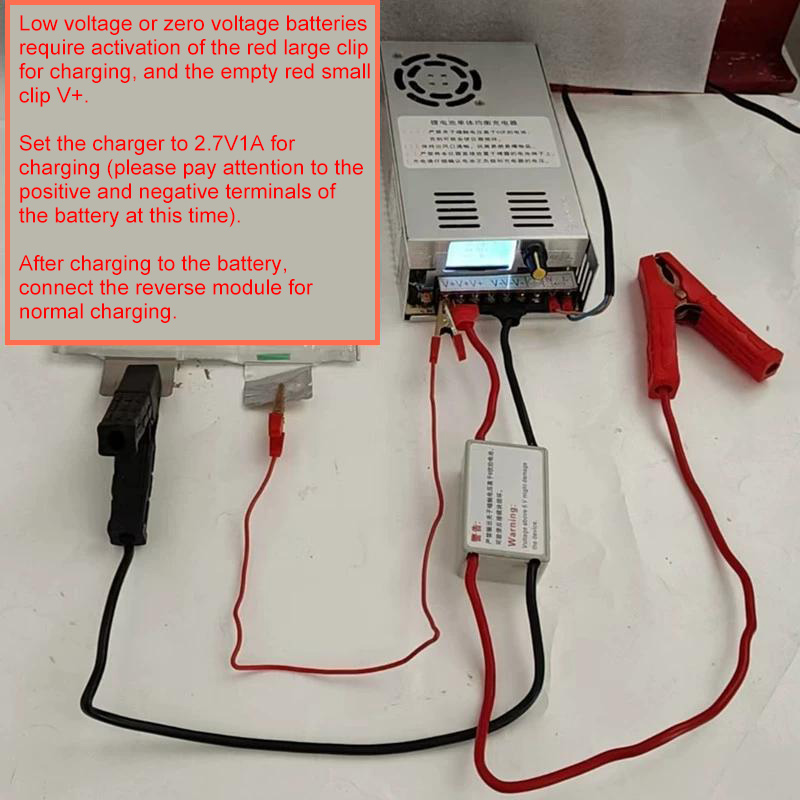

- Before charging, select the charger's output voltage and current based on the type and capacity of the battery to be charged. Lithium iron phosphate battery with a voltage of 3.65V. Ternary polymer 4.20V. Lithium titanate battery 2.70V. The charging current can be set according to the capacity of the battery. It is generally recommended to charge lithium batteries with a maximum current of 0.3C (C refers to the total capacity of the battery, for example, a 100AH lithium battery, 100 * 0.3C=30A). Actually, it doesn't matter if the current is slightly larger or smaller.
- The default shipping output is 3.65V with a maximum current of 10A. Suitable for charging lithium iron phosphate monomers. If other different voltage and current outputs are required. Press the knob twice to read the preset voltage and current data, turn the knob left and right to switch to other voltage and current data, and press the knob once to confirm. If the default 8 sets of voltage and current values are not suitable, the output voltage and current values can also be manually set.
- Method for manually setting voltage and current values: In the main interface, turn the knob to the left to see the voltage number flashing below the preset. Press down to rotate and confirm, then rotate left and right to decrease or increase the voltage value. After reaching the desired preset voltage value, press the knob again to confirm. The current can be set according to the above steps.
- After confirming that the charger voltage is correct, clip in the battery and keep it in the main interface state. The charger will display data such as charging voltage, current, power, and charging capacity. Whether it is fully charged can be directly determined by the displayed charging current. If the charging current is 0 or close to 0, it is fully charged.

Precaution:
- In the normal main interface. Press the knob once to turn off the device. At this point, the charger has no output, only the display screen lights up. Press the knob again to turn on the device.
- In the normal main interface. Press and hold the knob to enter the system settings. Change the preset voltage and current data.
- Single charger with reverse polarity protection function. When plugged in for the first time, there is no voltage (or negative voltage) on the output clamp. Only when clamped on the battery and the positive and negative poles are correct, will charging current be generated. If it is in reverse. There will still be no voltage on the output clamp, and no charging current will be generated.

Note:
- Please keep away from flammable and explosive materials when using And there must be someone on duty in the place. The power supply has a metal casing and is fixed with screws for wiring. According to electrical standards, the casing is securely grounded. This product is only suitable for professionals with professional knowledge. Those who understand electronics, batteries, and safe electricity use can purchase it.
- To prevent personal accidents, fire accidents, electric shock injuries, social damage, etc. caused by malfunctions and incorrect work, please pay full attention and take safety precautions. The product has a certain degree of danger. Please use it carefully while ensuring safety and avoid crowds as much as possible. Your purchase behavior represents that you are aware of the above situation and voluntarily assume corresponding responsibilities and risks. Our store does not assume any compensation responsibility for losses and injuries caused by improper use of the product or failure to pay attention to safety!

Package Included:

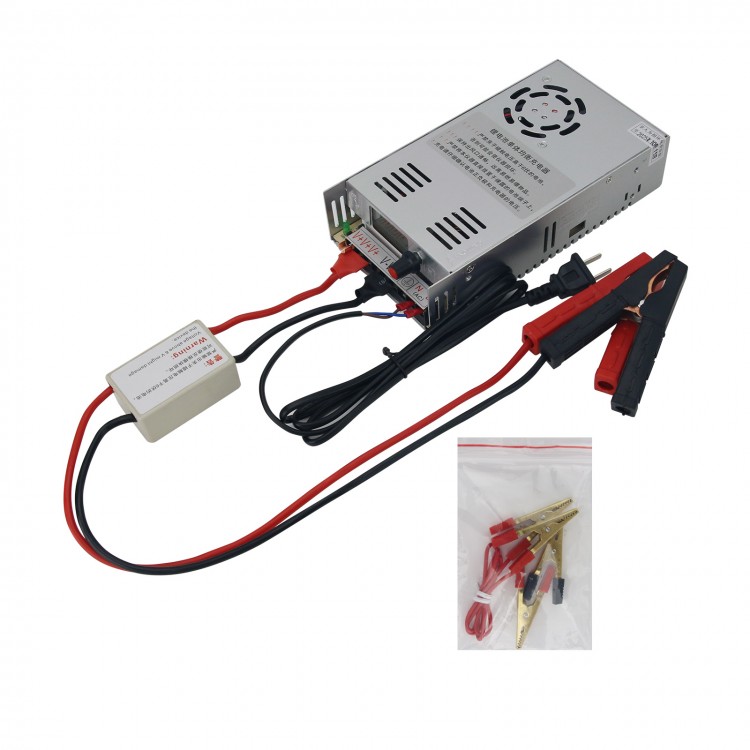

- 1 x Set of Battery Charger
