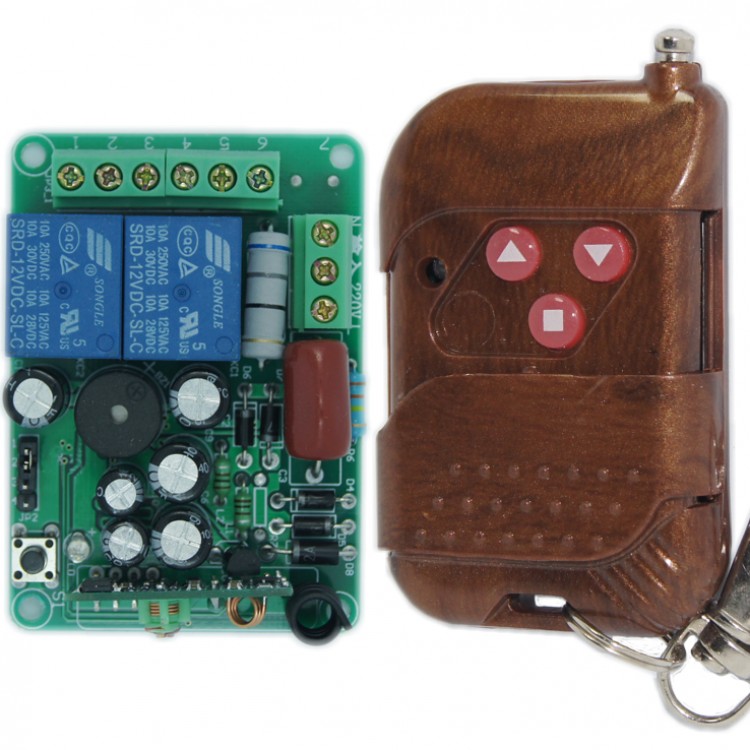

220V 2CH 315MHZ Wireless Intelligent Remote Control Switch Transmitter Receiver for CW CCW Motor

220V 2CH 315MHZ Wireless Intelligent Remote Control Switch Transmitter Receiver for CW CCW Motor

Description:
This product is for remote typrs like switch, pump, motor ,socket, LED, alarm, door, curtain, car , vehicles, MP3, lights ,car and thter security products. It is for DIY. The power supply is 220V. There are 2 independent relays for signal output. There are open ,closed and common end that have no voltage.It is applied for the following conditions. With 220V output; Series connection to the other circuit to control the switch with the open and closed end of the output end.( recommended 3v-250v, 0.1a-10a); for CW CCW motor. One channel is for the CW, the other one is for CCW.

Specifications:
Transmitter:
- Operating Voltage: DC12V (12V 3A battery)
- Operating Frequency: 315 MHz
- Shock resistance: 4.7M
- Operating Temperature: -30°C ~ +70°C
- Humidity: <95%
- Size: 60*38*13mm
- Modulation: ASK
- Encoding: Encoding group or welding
- Distance: 100m

Receiver:
- Operating Voltage: AC220V DC220V
- Operating Frequency: 315 MHz
- Working: Self-locking, Interlock,inching
- Operating Temperature: -30°C ~ +70°C
- Humidity: <95%
- Size: 68*48*17mm(inner board); 75*55*28mm(with shell)
- Code mode: Smart learning
- Output: 2 channel relay signal output
- With shell
- Max. load: inductive<=3.5A,Resistive current<=6A

Package included:
- Transmitter x 1
- Receiver x 1
