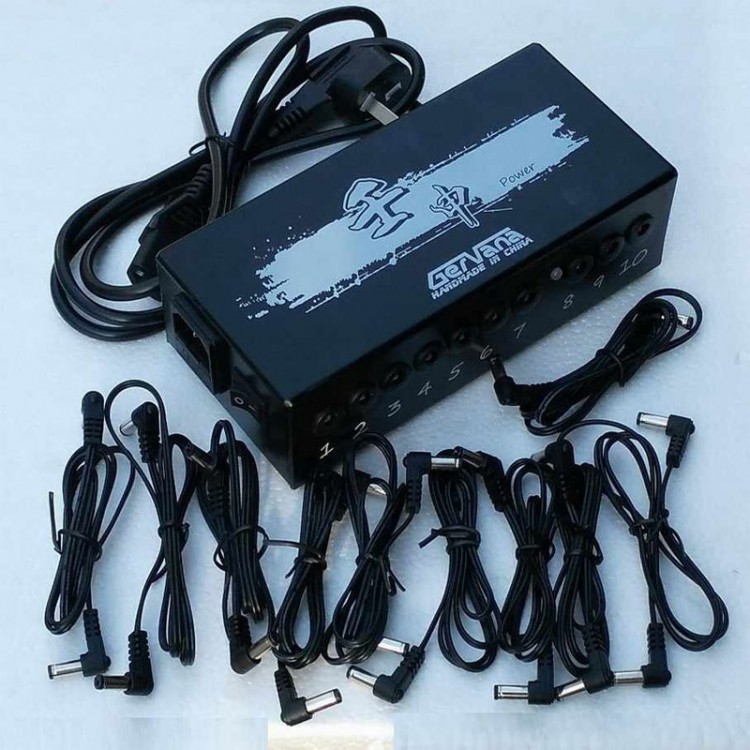

220V High Quality 10-Channel Fully Independent Regulated Power Supply for Single Effects Pedal
Specification:
- Output:
1-4 Channel: 9V 100mA
5-7 Channel: 9V 300mA
8-9 Channel: 9V can switch to 12V 500mA
10-Channel: 12V can switch to 18V 200mA
- Product size: 190 x 90 x 41mm
Package Included:
- 1 x Power Supply
Precaution:
- The switching voltage of this version of the power supply is specially designed to be in a low voltage state when the switch is not turned on, in order to avoid outputting high voltage due to poor contact of the conversion switch.
- This version uses red and blue dual color indicator lights. Red indicates high voltage, with 12V on the eighth and ninth channels and 18V on the tenth channel. Blue indicates low voltage, with 9V on the eighth and ninth channels and 12V on the tenth channel.
FAQ:
Q: Why is the noise of the effect device still very loud after using the ten-channel fully independent power supply?
A: The power supply of the effect device is used to supply power to the effect device. A good power supply must first meet the power supply requirements of the effect device. A good power supply can eliminate the noise caused by power supply, and the best effect is that a good power supply can be as good as using a battery to power. However, the power supply cannot eliminate the noise of the effect device itself, because the power supply has no other functions besides power supply. So, the noise of the effect device itself cannot be eliminated by the power supply.
Q: Why does the power supply generate heat?
A: Heating indicates that the power dissipation of the power supply itself is too high. The following reasons can cause the power supply to overheat. Firstly, there is a problem with the power supply itself. Secondly, the connected 220V AC voltage is too high. Thirdly, the output current of the power supply exceeds the rated value by too much. All these three reasons can cause overheating.
Q: Is this power supply an independent power supply? What is the total output current of this power supply?
A: It is a 10-channel fully independent power supply, not a false independent one with all negative terminals connected together. Because this power supply has ten independent outputs, the total output current cannot be calculated. If one or several of the ten outputs are less than the rated value, the remaining current cannot be simply calculated for other circuits. The current load capacity of each circuit should be checked separately.
Q: If the my effector only requires 20mA current. Which channel should I connect to use it? If the power current is too high, will it burn out my effect device?
A: The current provided by the power supply is a rated value, which means that the power supply can provide such a large value. In fact, when the effect device is connected, the specific current is determined by the effect device. However, it should be noted that the current provided by the power supply must not be less than the current required by the effector, otherwise the power supply will not be sufficient.
