220V Lithium Battery Cell Balanced Charger 3-15V/1-25A Adjustable for New Energy Vehicles Lithium Battery Charging

220V Lithium Battery Cell Balanced Charger 3-15V/1-25A Adjustable for New Energy Vehicles Lithium Battery Charging

Instructions:

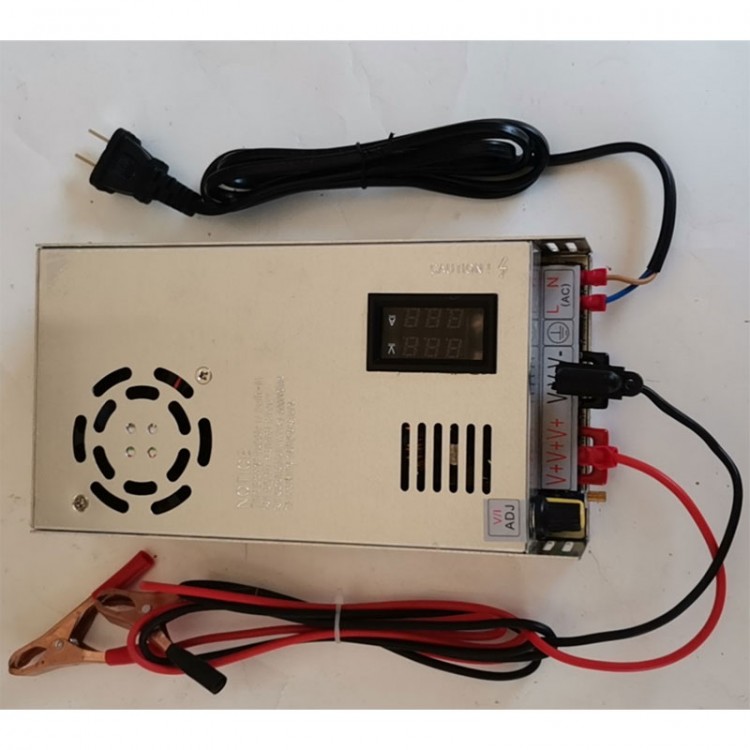

- The product comes with input and output lines and clips. Please pay attention to the positive and negative poles when charging. If accidentally reversed, it usually only burns out the fuse inside the fuse holder. Just replace it by yourself (be sure to plug it tightly and choose the same specification when replacing.)
- Adjust the voltage of the charger without load first, set the current knob in a lower position (which is important), and then clip the battery for charging.
- Lithium batteries are usually charged with a current of 0.3C. You can adjust the current knob according to the battery capacity, and then increase the current knob according to the battery capacity. (C refers to the total capacity of the battery, for example, a 100AH lithium battery, 100 * 0.3C=30A)
- The voltage and current can be adjusted according to the type of battery and the tolerance of the protective board. General usage method: Do not connect the battery, plug the charger into 220V first, as there is no load and the current display is 0. Adjust the voltage knob according to the type of battery being charged. For single cell charging, adjust the iron lithium to 3.65V and the polymer to 4.2V. Do not adjust it too high! Setting too high may cause lithium battery explosion and fire!
- After clamping the battery, do not adjust the voltage knob again. Charge 3S polymer to 12.5-12.7V, charge 4S lithium iron phosphate to 14.5-14.7V. Adjust the voltage before charging the battery. The charger will stop charging the battery to a certain voltage when it reaches the setting value. So the fully charged self stop function is only suitable for single lithium batteries, which have a voltage not exceeding 4.2V (without the need for a protective board). However, when charging multiple strings with a 3-15V (or 0-15V) charger without a protective board or in a disconnected state, the battery must have a properly functioning protective board on it, otherwise it is easy to damage the battery! Do not work at full capacity during the hot season.

Note:
- Please keep away from flammable and explosive materials when using And there must be someone on duty in the place. The power supply has a metal casing and is fixed with screws for wiring. According to electrical standards, the casing is securely grounded. This product is only suitable for professionals with professional knowledge. Those who understand electronics, batteries, and safe electricity use can purchase it.
- To prevent personal accidents, fire accidents, electric shock injuries, social damage, etc. caused by malfunctions and incorrect work, please pay full attention and take safety precautions. The product has a certain degree of danger. Please use it carefully while ensuring safety and avoid crowds as much as possible. Your purchase behavior represents that you are aware of the above situation and voluntarily assume corresponding responsibilities and risks. Our store does not assume any compensation responsibility for losses and injuries caused by improper use of the product or failure to pay attention to safety!

Package Included:
- 1 x Set of Battery Charger
