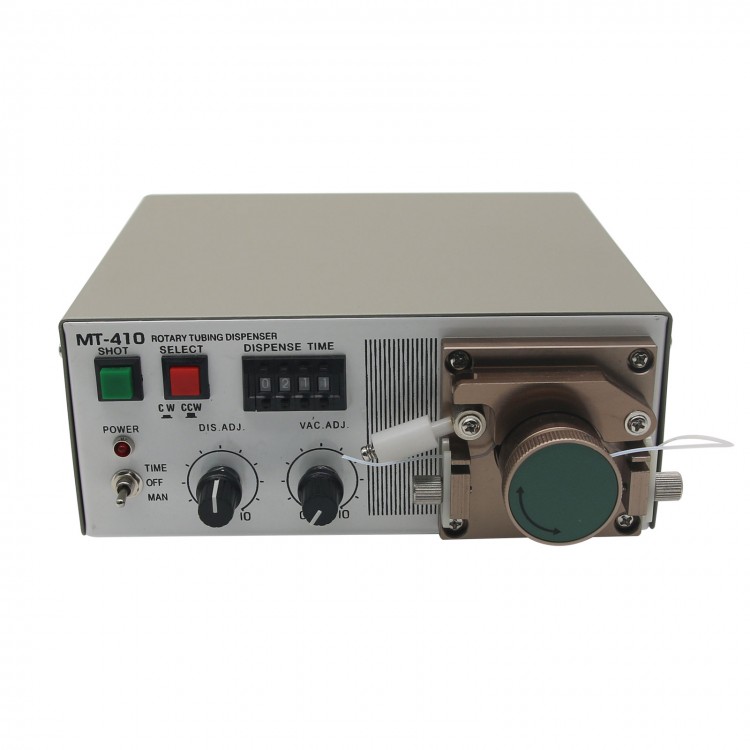

220V MT-410 Auto/Manual Rotary Tubing Dispenser Peristalsis Dispenser With Pedal

220V MT-410 Auto/Manual Rotary Tubing Dispenser Peristalsis Dispenser With Pedal

Application:
1. Plug connector, the phone keypad, remote control buttons, VCD, DVD shaved head, head, rubber solution and other precision machinery sub decorate precision spit plastic operations
2. For fast rubber, cyanoacrylate, electrolyte, ink, liquid, oil viscosity 10000PCS less liquid
3. Suitable: adhesive, fixed, point-shaped coating, linear coating, etc.
Feature:
1. Paint shell, easy to clean, long-lasting shine bright
2. Vacuum controller, peristaltic dispensing
3. Automatic suction function to prevent leakage
4. Easy removal

Features:
1. Input voltage:220V   (this item only support 220V)
2. Power:30W
3. Minimum throughput: 0.0001ml
4. Spit glue Adjustment range: 0 to 999.9
5. Snuffback glue Adjustment range: 0 to 400
6. Suitable material viscosity: 10000PCS less
7. Spit modes: steady operation mode / manual control mode
8. Dimensions: 188 * 168 * 88mm
9. Weight: 3.5kg

Operation method:
Manual mode:
1. Connect the power select switch to MAN position, the indicator lights
2. Install the tube
3. Set Reversible CW / CCW key switch, select CCW key transition, we selected CW clockwise
3. Set the suction VAC, ADJ, select the desired value, manual mode, the proposed closure of reverse snuffback
4. Adjust the DIS, ADJ knob to set the optimum speed (best speed of 50 ~ 120RPM)
5. "SHOT" button, or manually switch, foot switch complete
Automatic mode:
1. Turn the switch to "TIME" position, the indicator lights
2.Dispenser Time key to set the dispensing angle
3.2.3.4.5.6 work program

Note: The moment dispenser in the state rotated counterclockwise, (Dispenser Time) function key to switch back to suck, suck back button (VAC, ADJ) into the set dispensing angle

Package Included:
1 x MT-410 Rotary Tubing Dispenser Machine
1 x Dispenser Pen
1 x Pedal
