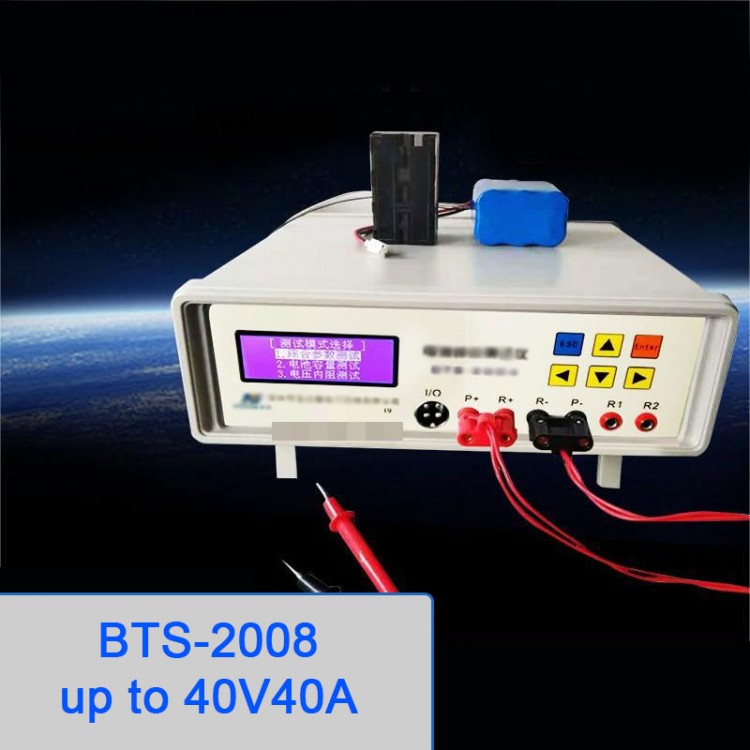

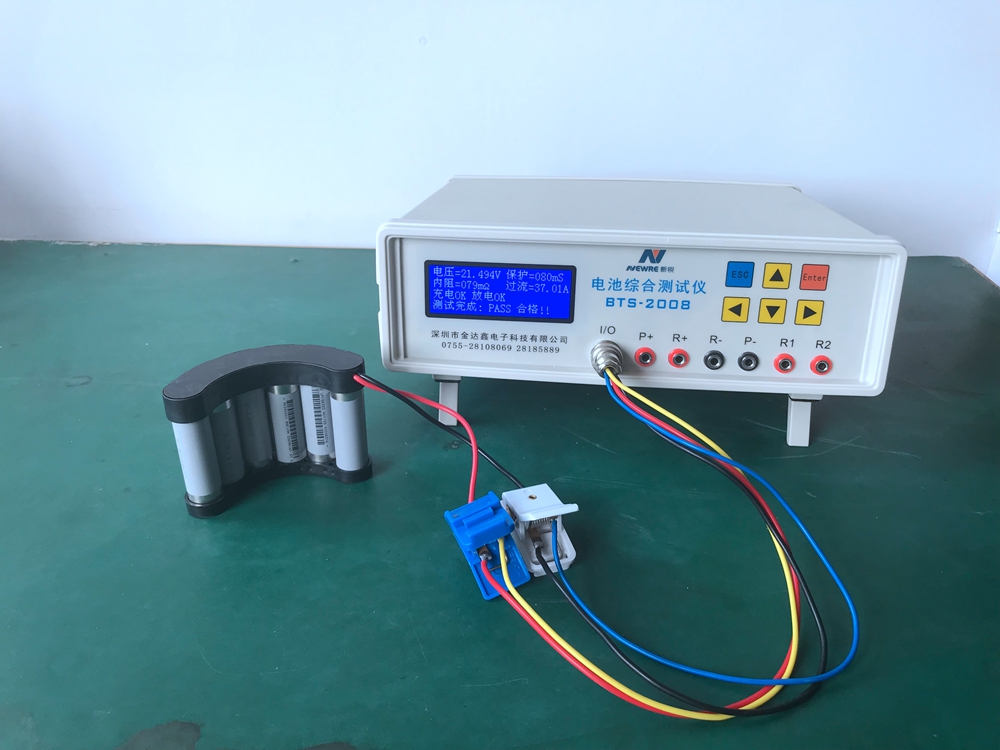

220V NEWRE BTS-2008 0-40V 0.1-40A Digital Comprehensive Battery Tester 1-6S Battery Group Detector
Specification:
- Battery voltage measuring range: 0 - 40V; resolution of 1mV
- Charging/discharging current measuring range: 20mA - 2000mA; resolution of 1mV
- Over-current measuring range: 0.1 - 40A; resolution of 0.01mA
- Internal resistance testing range: 0 - 1000m; resolution of 1mohm
- Recognition resistance testing range: 0.1 - 999.9K; resolution of 0.1K
- Capacity testing range: 0 - 60000mAH; resolution of 1mAH
- Application: 18650 and other cylindrical and square lithium batteries, polymer batteries, nickel cadmium, nickel hydrogen batteries, lead-acid batteries, etc.
Testing Speed:
- Static test (voltage, internal resistance, short-circuit protection, charge, discharge, over-current): 0.1 - 0.3s
- Capacity test (1c current charge/discharge): 3 - 4 hours (pay attention to heat dissipation)
Measuring Precision:
- Voltage measuring precision: 10.00V, 0.1% + 2mV (after calibration)
- Current measuring precision: 2000mA + 0.1% + 2mA
- Internal resistance measuring precision: 1000m + 2% + 10m
- Recognition resistance measuring precision: 10K + 2%
- Battery capacity measuring precision: 10AH + 2%
- Power supply voltage: 220V + 10% 50Hz
- Power consumption: > 120W
Package Included:
- 1 x Battery Tester
- 1 x Testing Probe
- 1 x Testing Clip
- 1 x Power Cord
- 1 x User Manual
Note:
- Battery is not included.
