| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $341.37 | $334.41 | $323.96 | $310.02 | Contact US |

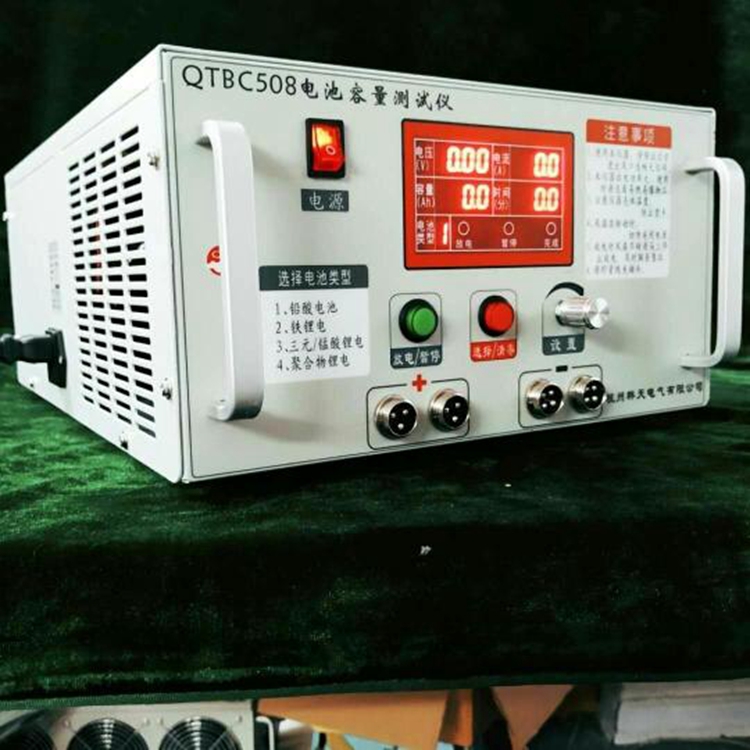

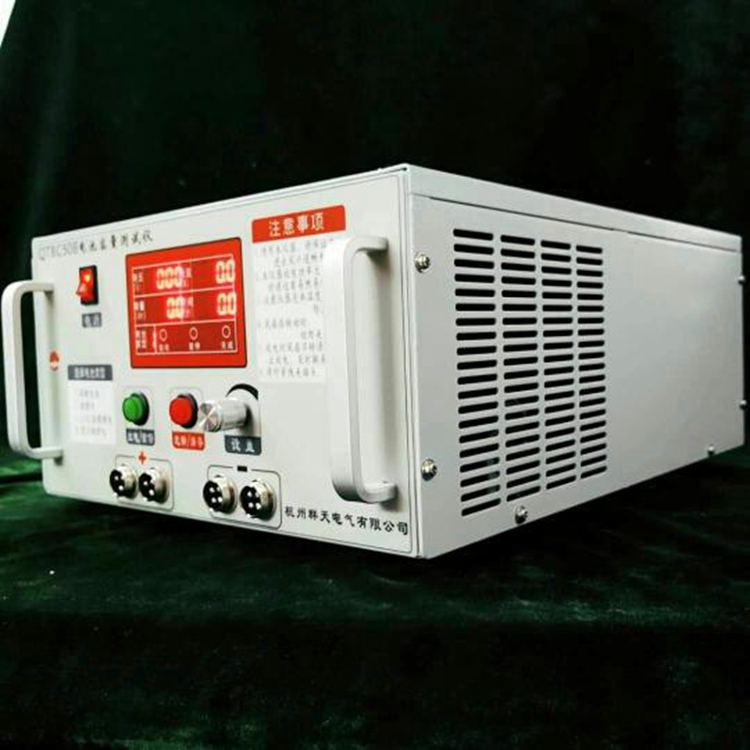

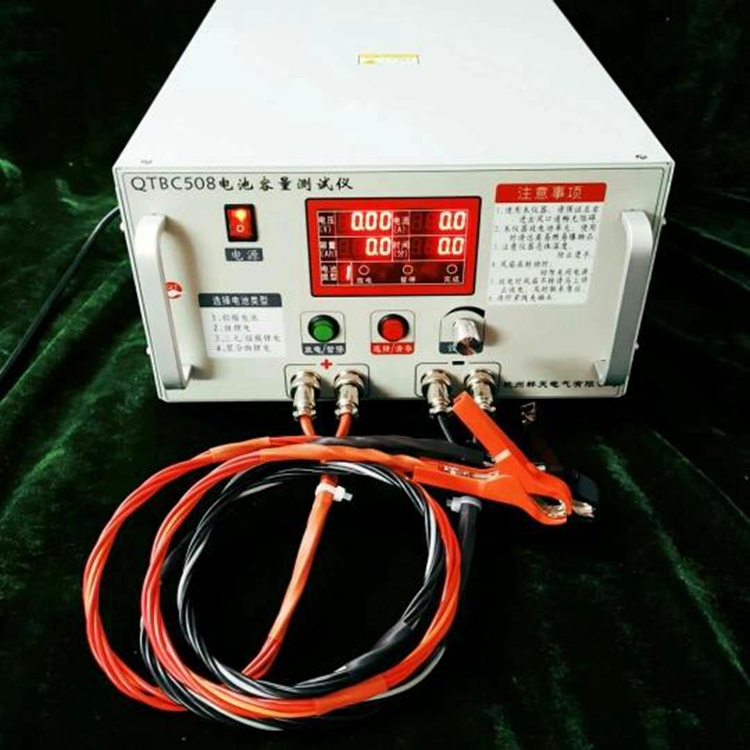

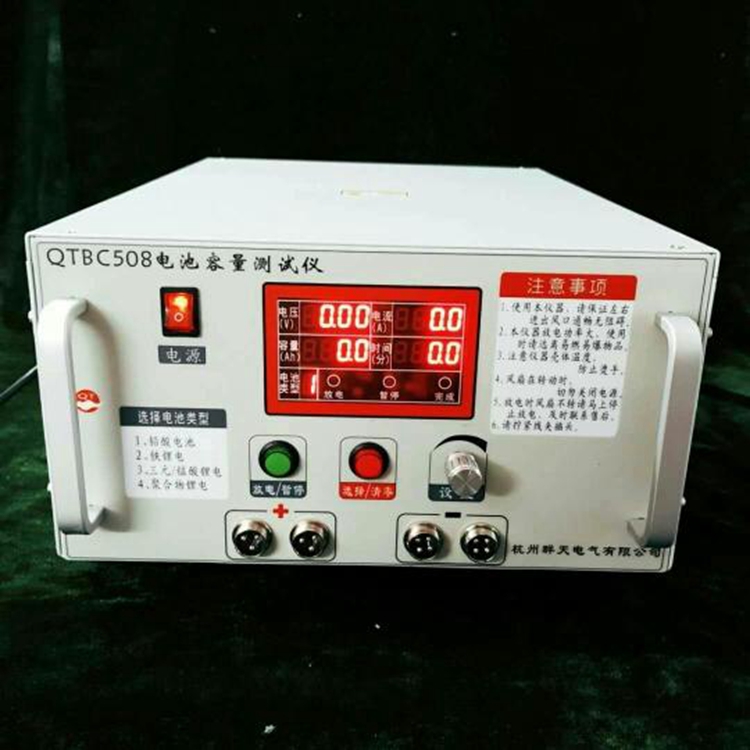

220V QTBC508 Battery Capacity Tester 1-20A Adjustable for 12V/24V/36V/48V/60V/72V Ternary/Lead-acid/Lithium Iron Discharge Meter
Features:
- Constant current discharge throughout the entire process, and the highest discharge voltage is 98V.
- Applicable battery pack: 12V, 24V, 36V, 48V, 60V, 72V
- Discharging current: adjustable from 1A to 20A; the termination voltage is automatically identified and set, and it can be set manually if necessary.
- The instrument display content is complete, directly display: battery voltage, discharge current, discharge time, battery capacity, etc.
- This tester is widely applicable, and you can choose 4 types of battery packs for discharge (lead-acid batteries, iron-lithium batteries, ternary/manganese lithium batteries, polymer lithium batteries); other types for battery test, you can set the discharge data by yourself.
- Automatically identify the voltage values of 4 battery packs: 12V 16V 24V 36V 48V 60V 72V, and automatically set the termination voltage, which brings great convenience to users.
- Testing other types of batteries or non-standard battery packs requires manual setting.
- The size is 39cm long (plus the front handle 43.5cm) 29cm wide and 15.5cm high.
- Instrument weight: 8.5KG
- Power supply: 220V 50/60Hz

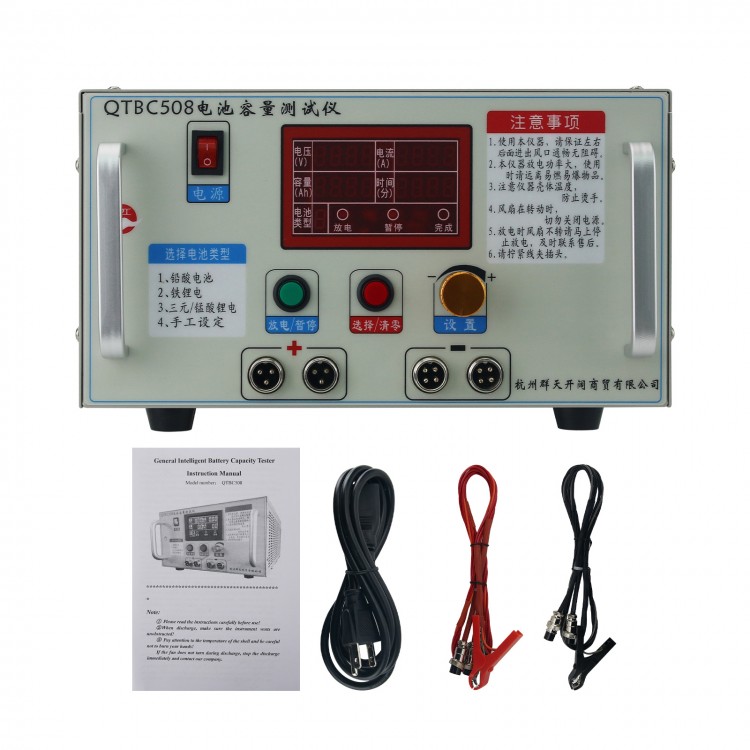

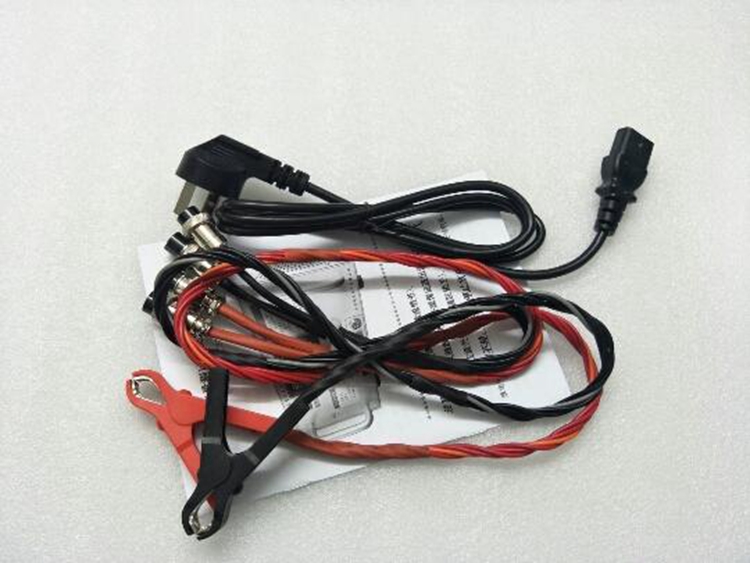

Package Included:
- 1 x Tester
- 1 x Power Cable
- 1 x Aviation Cable Clip
- 1 x User Manual
