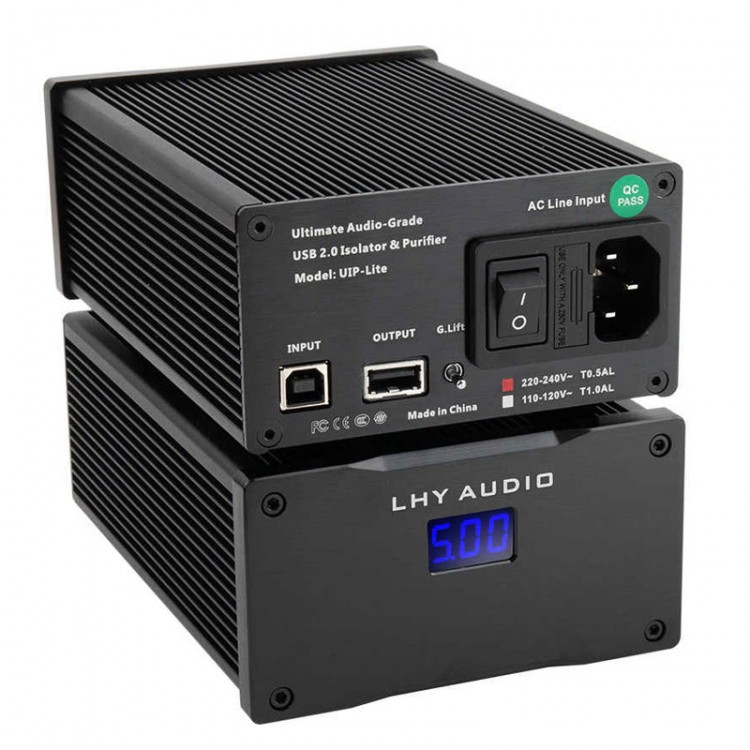

220V UIP-Lite USB2.0 HiFi Isolation Power Purifier Built-in 25W DC Linear Power Supply for Signal Filtering

220V UIP-Lite USB2.0 HiFi Isolation Power Purifier Built-in 25W DC Linear Power Supply for Signal Filtering

Description:
- UIP-Lite is a high-speed signal isolator that fully complies with the USB2.0 specification. It has complete physical isolation, and the front-end device and the subsequent DAC can achieve GND full isolation, eliminating noise interference from the PC power supply. As a repeater for USB audio signals, it can perfectly forward audio data without causing transmission bottlenecks to any audio system with a bandwidth of 480Mbp/s.
- The UIP-Lite input terminal is equipped with advanced USB input port ESD protection. The core adopts a USB2.0 high-speed 480Mbs ADuM3165 isolation chip, with an isolation voltage of up to 3.75kv rms, and is equipped with a high-precision and low jitter silicon crystal oscillator, as well as a 3042+pnp uV level pure linear power supply, which can effectively isolate the power and ground interference of the USB port, effectively isolate the complex noise and electromagnetic interference of the front-end, purify the USB signal, and replace the power supply of the output port with a linear power supply.
- The USB output terminal can continuously and stably output current up to 3A, with output noise as low as 20uV.
- The UIP-Lite front-end supports various devices such as computers, PCs, data broadcasting, and web broadcasting, while the back-end supports various USB interfaces, DAC decoders, USB drives, USB hard drives, and USB network cards.

Selling Points:
- 480Mbs ADuM3165 isolation chip
- LT3042+PNP uV level power supply (5V3A)
- Silicon based low jitter crystal oscillator
- Ground loop isolation to eliminate audible ground loop hum
- Adopting aluminum shell to enhance cooling effect and durability

Instructions for using the ground wire switch:
- Switch up: ISOLATED ground wire isolation (factory default), the DC negative pole is isolated from the AC ground to avoid ground loops, making it suitable for most usage scenarios.
- Switch downwards: the GND ground wire is connected, and the DC negative pole is connected to the AC ground wire. It is used in situations where certain equipment requires grounding.

Specification:
- Input interface: USB2.0 B-type interface
- Output interface: USB2.0 A-type interface (signal + power supply)
- Isolated chip: 480Mbs ADuM3165 isolated chip
- Active crystal oscillator: silicon low jitter crystal oscillator
- Output stabilization: LT3042 + PNP
- Power supply bottom noise: <1uV at no-load; <20uV at load 2A
- Technical specification: DSD 512 / PCM 768
- Input voltage: AC 110/220V (optional)
- Output power: DC5V 3A
- Static power consumption: 5W
- Voltage specification: 3bit blue LED digital display
- Voltage range: ±10%
- Product size: 155 x 110 x 63mm
- Net weight: 1.1kg

Package Included:
- 1 x Power Purifier
- 1 x AC Power Cord
- 1 x USB2.0 Cable
