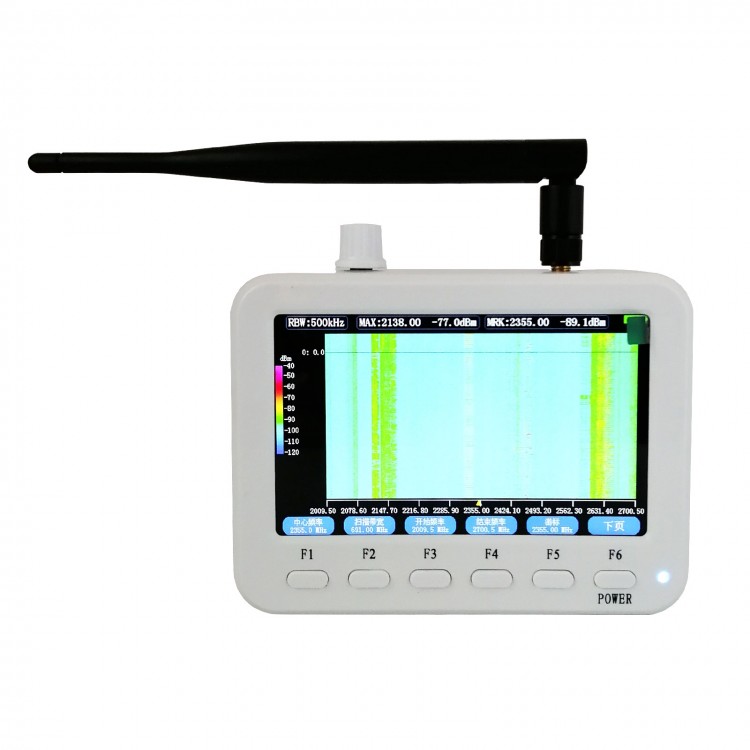

2300-2900MHz Portable Spectrum Analyzer Handheld RF Spectrum Analyzer Measuring Instrument XT-239

2300-2900MHz Portable Spectrum Analyzer Handheld RF Spectrum Analyzer Measuring Instrument XT-239

Features:
- This spectrum analyzer can be used in radio frequency testing, wireless optimization, on-site network layout, interference query and so on. It can be used to test the spectrum distribution of signals.
- Small in size, light in weight, compact structure, easy to carry, suitable for field measurement.
- It can be charged by standard 5V charger of mobile phone.
- The detection frequency ranges from 2300 to 2900MHz. It can detect real-time spectrum, frequency spectrum and thermodynamic spectrum in the frequency band. It is easy to use.
- Real-time spectrum analysis function, real-time spectrum scanning, support for SPAN/RBW/CENT/MARKER function, MAXHLOD function, maximum power automatic detection.
- The function of frequency chromatogram shows the whole time and spectrum characteristics in a period of time. It can record all the spectrum distribution in 5 minutes, which is convenient for viewing the frequency interference or emission leakage.
- The function of spectrum thermograph shows the overlapping density of spectrum outline in a period of time, and the display of more repetition times tends to be red, which is convenient for analyzing the spectrum statistical characteristics in a period of time.

Specifications:
- Model: XT-239
- S11 (Typical): -31dB
- Frequency Range (MHz): 2.3-2.9GHz (2300-2900MHz)
- In-Band Unevenness: 0.5dB (After Calibration)
- RBW (KHz): 20, 30, 50, 100, 200, 300KHz
- DANL: -110dBm (Typical)
- Amplitude Accuracy: ±0.5dBm
- Scanning Time: 200ms
- MAXHOLD Function: Support
- Adjustable Reference Level: Support
- Display Refresh Rate: 5Hz (5 Screens Per Second)
- LCD Resolution: TFT 800x480
- LCD Size: 5"
- RF Interface: SMA-K
- Chromatogram: Support
- Thermodynamic Diagram: Support
- Built-In RTC Clock: Support
- Charging Time: 4 - 5 Hours
- Charging Interface: Micro USB Interface
- Operating Temperature: - 20 to 45℃
- Storage Temperature: - 20 to 70 ℃
- Signal Measurement Range: -100 to -10dBm (For Large Signal Plus Attenuator)

Package Included:
- 1 x Spectrum Analyzer
- 1 x Power Adapter
- 1 x SMA Adapter
- 1 x 2.4G Antenna 5DBI
- 1 x Charging Cable
