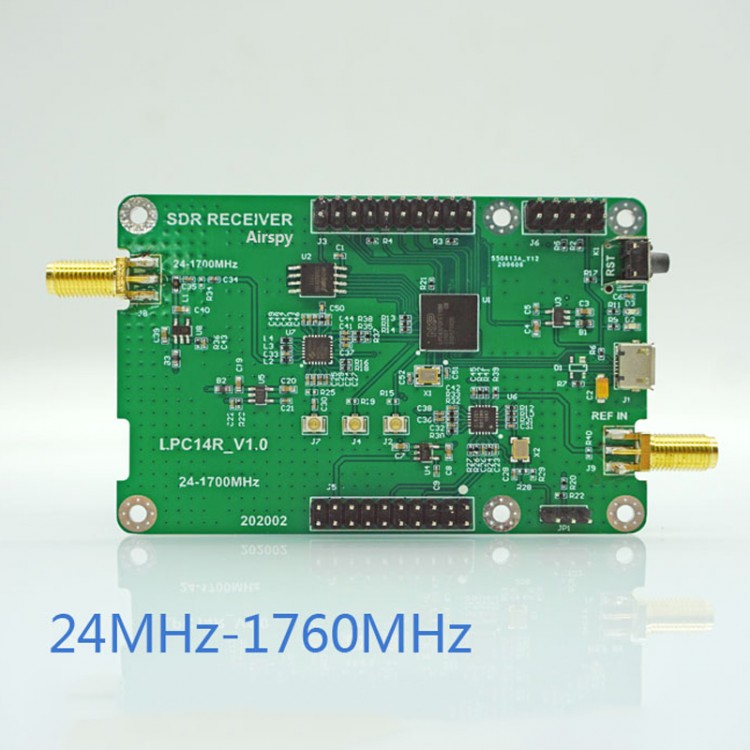

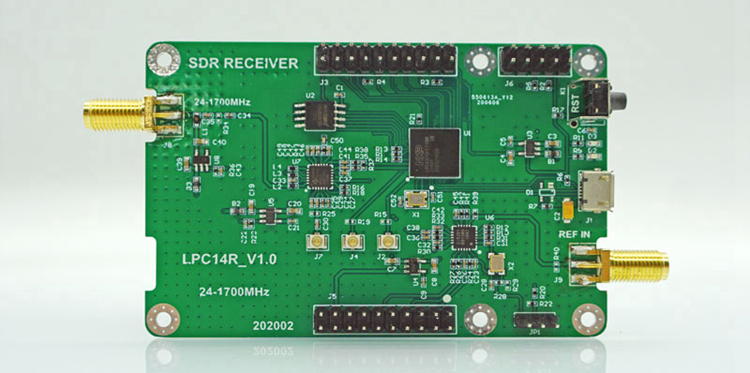

24-1700MHz SDR Receiver SDR Development Board 12Bit Perfect Replacement For RTL-SDR HackRF
Why did users choose our SDR receiver?
1. Using chip LPC 4370 for NXP as core processor, superior performance

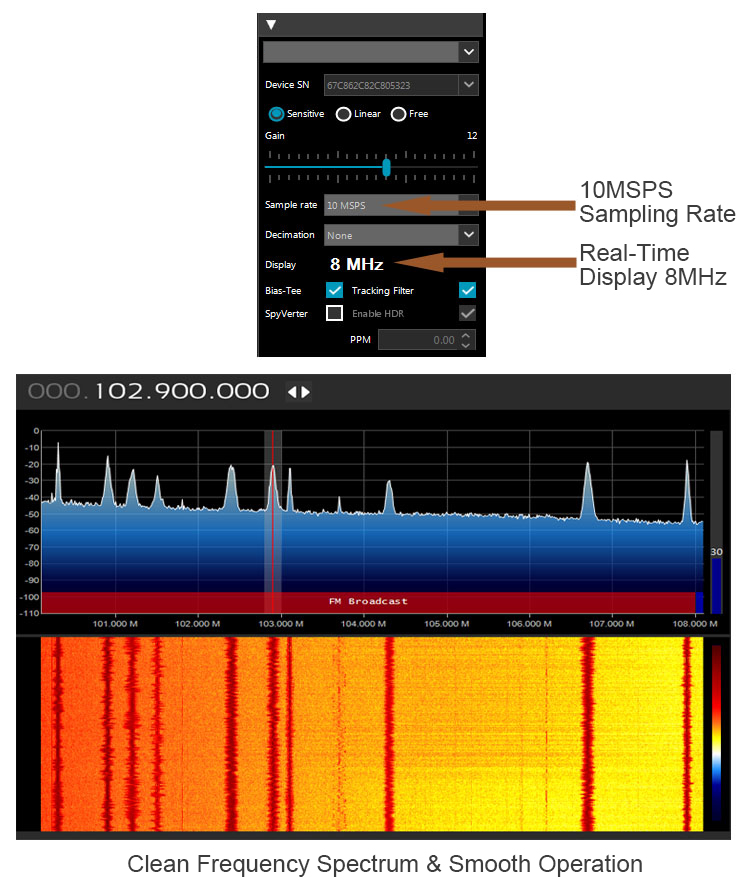

2. Perfect support SDR# runs smoothly at full rate, good gain, clean spectrum
3. The reception quality is super good, which can be used as a good VHF/UHF wireless transmission test tool
4. Abundant extension, suitable as a module for spectrum detection
5. 4-layer board design, in line with EMC standards
6. Use imported components and radio frequency plates to ensure product quality
7. The size and hole position are the same as that for Raspberry Pi 4th generation, which can be installed together to facilitate the formation of a portable receiver
8. It can be used as a high-quality radio when connected to a computer and controlled by SDR SHARP
Technical Parameters:
• Continuous 24 – 1800 MHz RX range with no gaps
• 3.5 dB NF between 42 and 1002 MHz
• Tracking RF filters
• 35dBm IIP3 RF front end
• 12bit ADC at 20 MSPS (80dB Dynamic Range, 64dB SNR, 10.4 ENOB) – Yeah, size does matter.
• 10MSPS IQ output
• Experimental 2.5MSPS IQ output for low power devices (For Raspberry Pi, Odroid, etc.)
• Up to 80 MSPS for custom applications
• For Cortex M4F at up to 204MHz with Multi Core support (dual M0)
• 1.5 ppm high precision, low phase noise clock
• 1 RTC clock (for packet time-stamping)
• External clock input (10 MHz to 100 MHz via MCX connector) – Ideal for phase coherent radios
• 10 MHz panoramic spectrum view with 9MHz alias/image free
• IQ or Real, 16bit fixed or 32bit float output streams
• No IQ imbalance, DC offset or 1/F noise at the center of the spectrum that plagues all the other SDRs
• Extension ports: 16 x SGPIO
• 1 x RF Input (SMA)
• 1 x RF Output (Loopthrough, U-FL)
• 2 x High Speed ADC inputs (up to 80 MSPS, U-FL)
• 4.5v software switched Bias-Tee to power LNA’s and up/down-converters
• No drivers required! 100% Plug-and-play for Windows Vista, Seven, 8 and 8.1
Package Included:
- 1 x SDR Receiver Development Board
