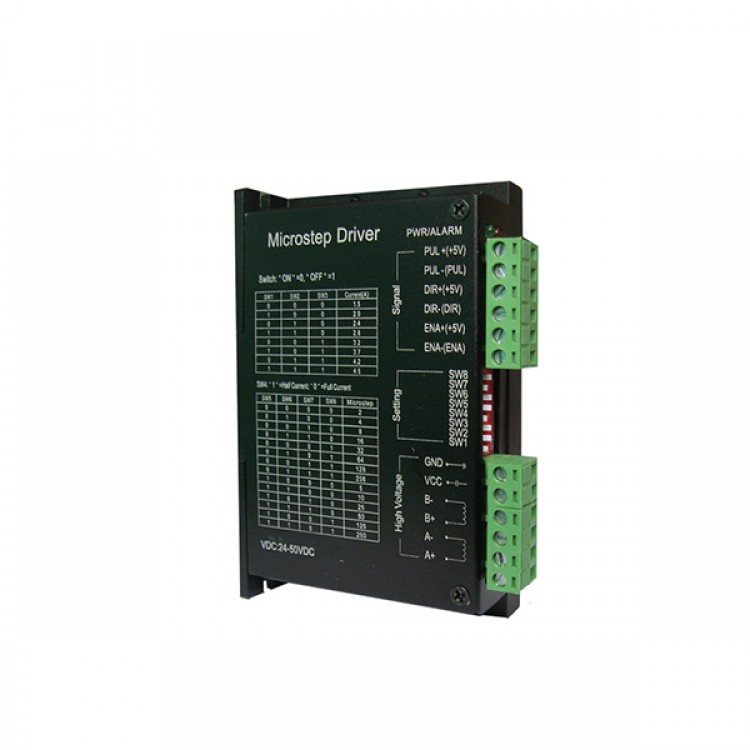

24-60VDC 200 Subdivision M542 CNC Micro-Stepping Name23 57 Stepper Motor Driver M542 Bi-polar 2phase 4.5A

Availability: Out Of Stock

  • Price:$37.84
  • Price in reward points: 378 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $37.08 $36.33 $35.19 $33.68 Contact US
Quantity:

24-60VDC 200 Subdivision M542 CNC Micro-Stepping Name23 57 Stepper Motor Driver M542 Bi-polar 2phase 4.5A

Description:
- M542 is a cost effective,hig performance bi-polar two phase micro-stepping drive applying pure-sinusoidal current control technique .It is best suited for the applications that desired extreme low noise and heat. It operates well in an environment,where electricity supply experience instability and fluctuation.
- With an automatic optimization speedctrol technique,the Powerstep series drive output is very stable,with almost zero vibration and noise,performing close to a servo system,allowing the motor to operate smoothly. That helps to fulfill a design requirement of low noise,low heat nd high performance.

Features:
- Suitable for 2-phase hybrid stepper motors (Outer diameter: 57,86mm).
- H bridge bipolar constant phase flow subdivision driver.
- Speed self-adjustment technology.
- Easy current subdivision setting.
- 2--64 resolutions,16 operation modes.
-  ENA mode.
- 8 dial switch for different functions.
- Undervoltage, Shortvoltage, overvoltage, overcurrent protections.
- Subdivision:2,4,8,16,32,64,128,256. 5,10,25,50,125,200

Specification:
- Technical Parameter:Supply Voltage: 24~60V DC (Typical 36 V).
- Output Current (peak): Min 1.0 A, max 4.5A.
- Supports Fourteen sub select, up to 256 Subdivision;
- Logic Input Current: Min 7, typical10, max 16 mA.
- Pulse Frequency: Max 200 KHz.
- Pulse Low Level of Time: 2.5 US.
- Cooling: Natural /mandatory.
- Working Surrounding: Avoid dust, oil mist and corrosive gas.
- Storage Temp: -10---80 deg.
- Working Temp: Max 65 deg .
- Surrounding Humidity: <80%RH without condensing and frost.
- Vibration: 5.9m/s2.
- Model: M542.
