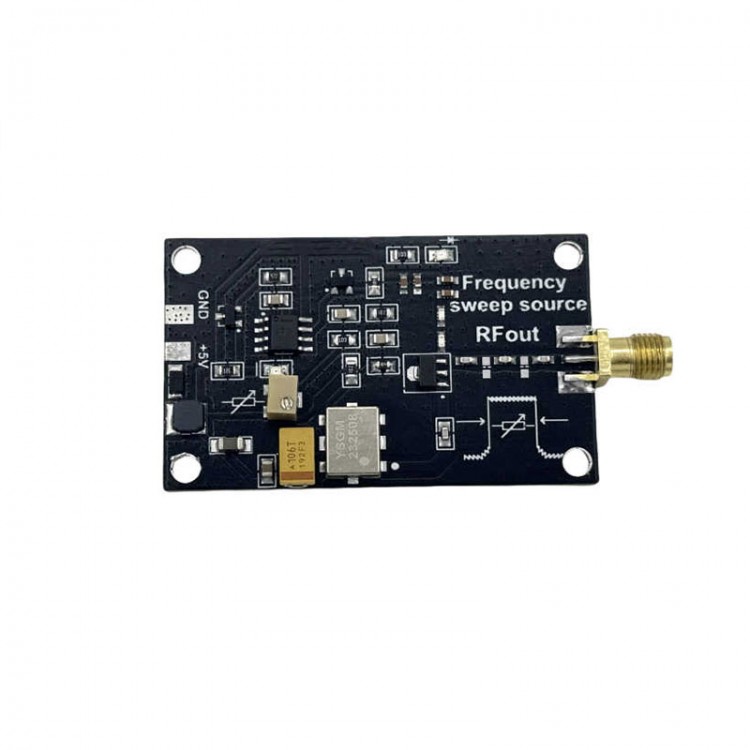

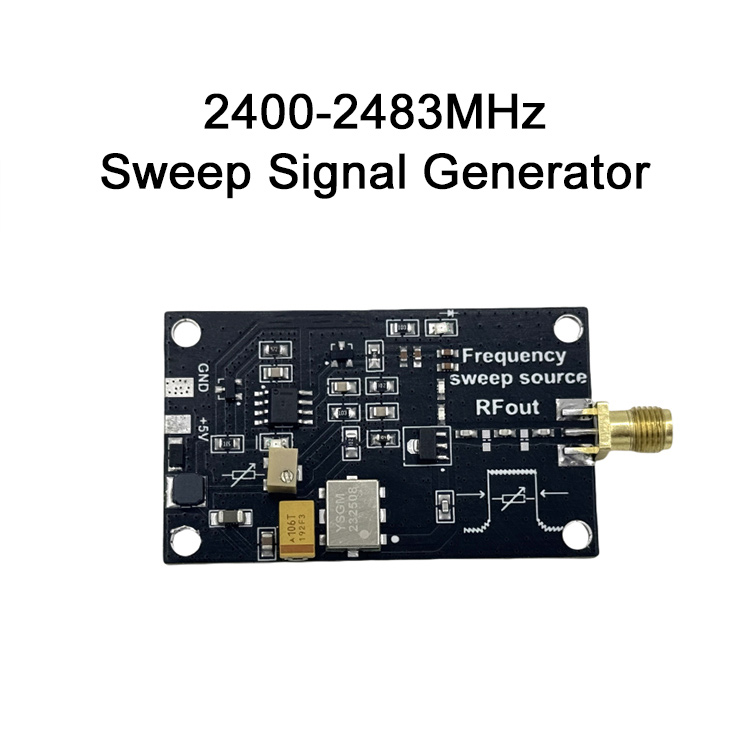

2400-2483MHz Sweep Signal Generator 2.4GHz Signal Source Frequency Sweep Source for UAV Remote Control
Specifications:
- Item name: 2400MHz-2483MHz Sweep Signal Generator
- Output impedance: 50Ω
- Output power: 17dBm (50mW) (the output power can be changed by soldering a π resistor attenuator to the output side)
- The frequency range can be adjusted by a potentiometer
- Operating voltage: 5V
- Operating current: 78mA

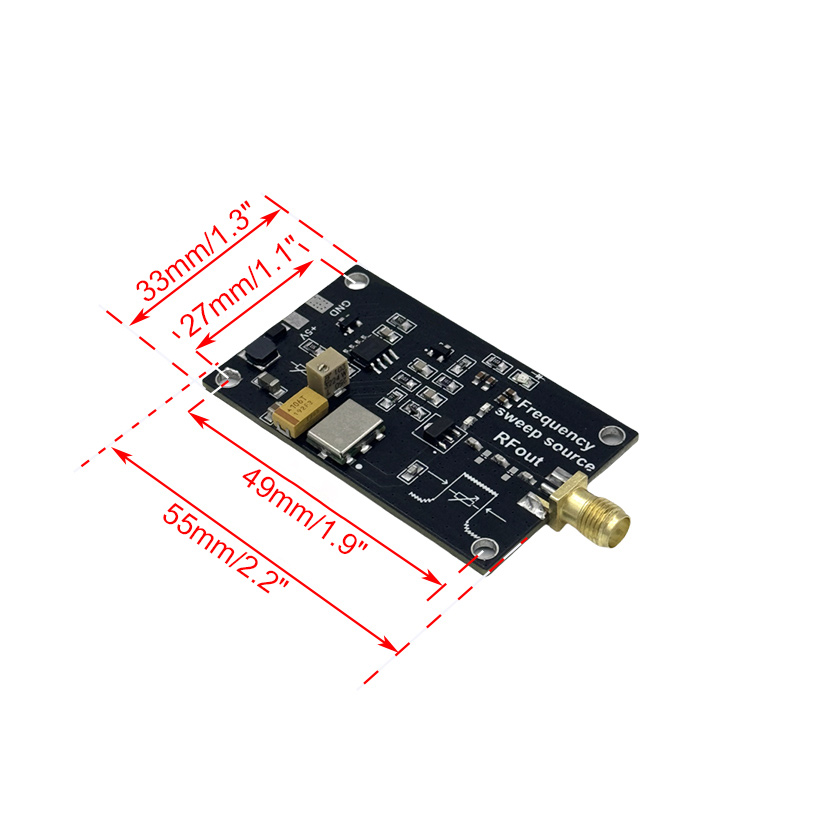

- Module size: 55mm*33mm (without the sizes of connectors)
- Connector type: SMA female connector

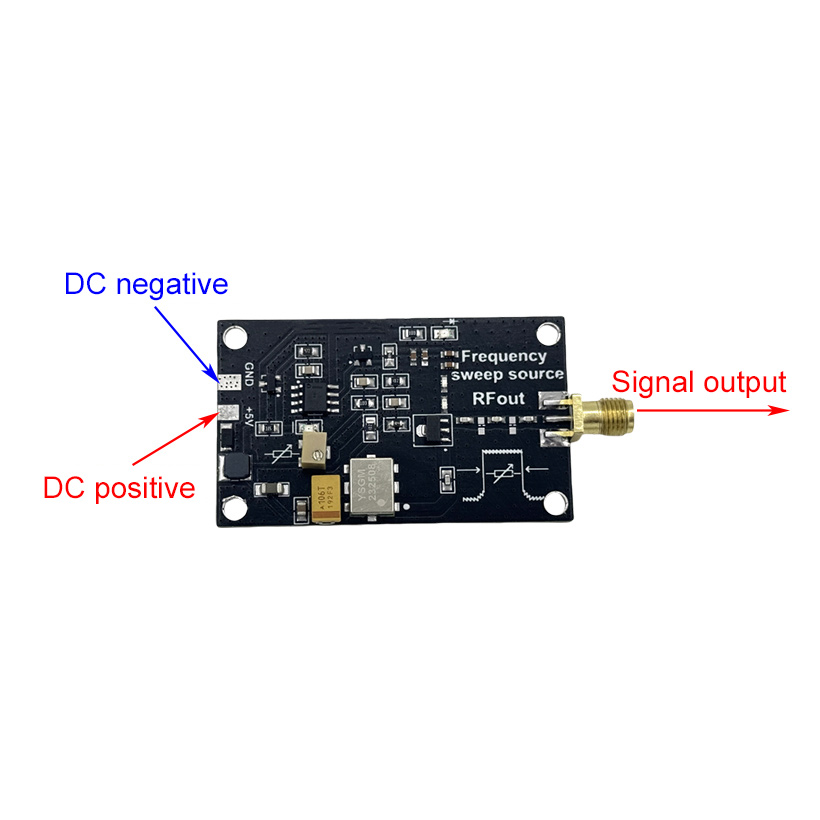

Connection:
GND connects to the negative pole of the DC zero potential.
+5V connects to the positive pole of the DC power supply.
Application:
- It is used in drone remote control, WIFI, Bluetooth and other signal isolation.
Package Included:
- 1 x Signal Generator
Packaging Details:
- Weight: 0.15kg
