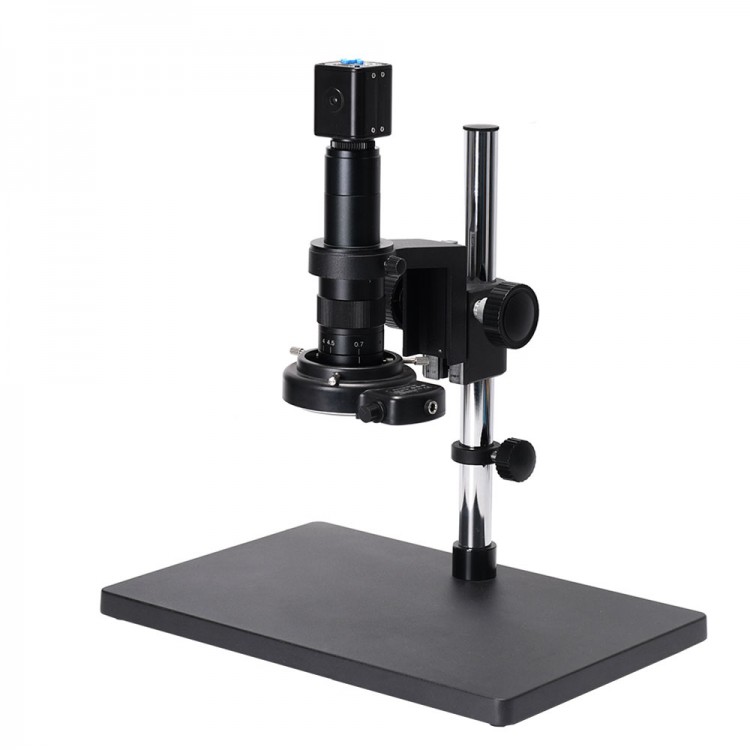

24MP HDMI Microscope Video Camera Kit 180X C Mount Lens 144-LED Ring Light Big Stand For PCB Repair
Features:
1. PC supports for multiple system, supports for Windows XP/7/8/10 system
2. Comes with a 180X C-mount zoom lens for industrial microscope camera
3. This 24MP industrial microscope camera is suitable for repairing industry
4. Adopts high quality metal housing, sturdy, durable and has long life
5. High resolution and dual output, which makes it more convenient to use
Microscope Camera:
- Image sensor: for SONY CMOS 1/2.9
- Pixel size: 2.85μm x 2.85μm
- Video output: Full HD 1080p (for HDMI)
- Image resolution: 5640x4232 (for HDMI)
- Video recording: 1080p (for HDMI)
- Image format: jpeg
- Lens: C/CS
- Resolution:1920*1080 at 60fps (for HDMI), 720p* 160 at fps (for HDMI)
- TF card interface: max. 64G
- PC support: for Windows XP/7/8/10 system, HAYEAR measure software
- Digital zoom: 4 times digital zoom
- AWB:WB color correction/Automatic /Manual
- R.G.B value setting independent
- Exposure: Automatic/Manual. AE value can set
- Cross lines: 8 lines. Can set color & width & position
- Scale mark lines: 2 lines
- Dotted lines: 2 lines. Can set color & width & position
- Sharpness Contrast Color gain: Support
- Mono Negative: Support
- Mirror: Horizontal vertical mirror
- Language: English, Chinese, Japanese, French, Germany, Italy, Korean, Turkey, Russia
- Shell size: 42x42x60mm
- Working temperature: -40℃ to 65℃
144-LED Adjustable Compact Microscope Ring Light:
- Provides intense and focused shadow-free illumination
- 144 bright white LED bulbs
- Lighting direction changeable
- Variable intensity control
- Intense and focused shadow-free illumination
- 100,000 hours of life
- Power input: 100-240V, 50-60HZ, automatic switching
- Inside diameter of the ring light: 1.0" (27mm)
- Overall outside diameter: 1.77" (45mm)
- Working Distance: 27mm-45mm
180X C-Mount Lens:
- Working distance: 95mm
- Zoom c-mount Lens
- 0.5X C-mount adapter
- Zoom ratios: 6.5:1
- Objective Magnification Power by 0.7-4.5X (about 10-180X on the display)
- Size: 180mm (L) * 50mm (DIA.)
- Working distance: 11cm
Package Included:
- 1 x Set of Microscope Camera
Note:
- Battery for the remote control is not included.
