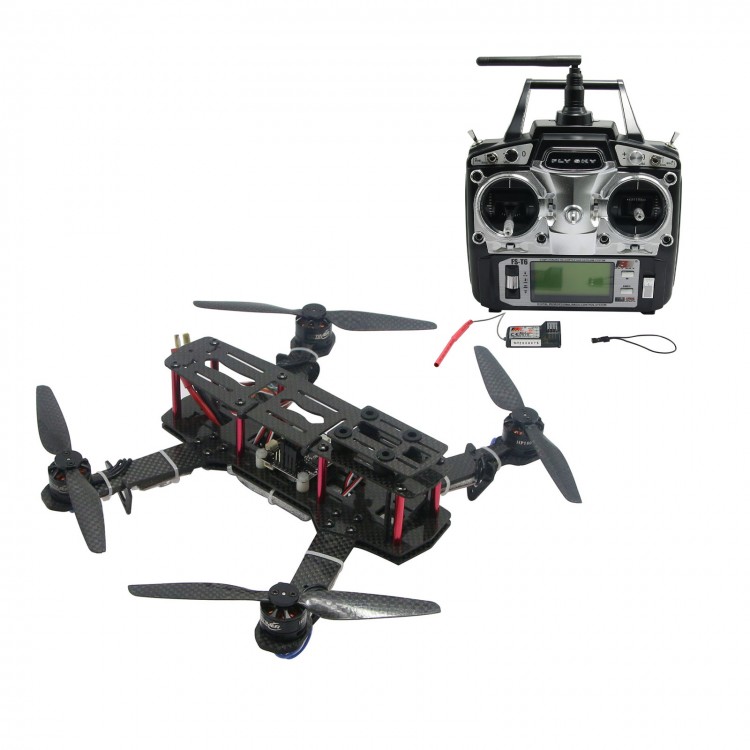

250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & TX RX & MT2204 & HobbyWing 10A ESC

250mm Carbon Fiber 4 Axis Mini Quadcopter + CC3D Flight Controller & TX RX & MT2204 & HobbyWing 10A ESC



















Location Test Flight:













Description:
- Frame Weight: Version 1: 90 grams, Version 2: 123 grams w/ Anti-Vibration Mount
- Materials: 3k Weave Carbon Fiber
- Fasteners: Stainless Steel & Black Nylon 6/6
- Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
- Maximum Propeller: 5"
- Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)
- Flight Controller Mount: 30.5mm x 30.5mm
- Board Camera Mount: 32mm x 32mm
- 1.5mm carbon fiber fuselage
- Machine arm 3.0mm
- Aluminum Jin Zhuzai
- AV shockproof ball
- FPV installed by edition
- Screw
- Carton packaging 177g (Only Frame Kit)

MT2204 Motor:
- KV: 2300
- Max thrust: 440G
- No.of cell: 2-3S
- Framework: 12N14P
- Prop: 5-6 inch
- Length: 31mm
- Weight: 27g
- Shaft: 3mm
- Dia: 27.5mm

Hobbywing XRotor-10A-opto ESC:
- Multirotor professional programme, very quick throttle response speed, surpass all kinds of open source software
- Specially designed for disc motor optimized firmware, has excellent compatibility
- Highly intelligence, well adaptive ability, easy operation
- Throttle signal cable is twisted pair, can effectly reduce the serial interference transmitted through  cooper wire, making the flying more stable
- Max support 621Hz throttle signal, compatible with all kinds of flight control
- Adopting MOSFET professional driving chip, performance and stability will surpass driver circuit made by seperated components
- Super low internal resistor MOSFET, strong current resistance
- Transient current: 15A
- Continuous current: 10A
- BEC: NO
- Battery pack: 2-3S
- Weight: 6.5g
- Dimension: 36.5*16.4*4.1
- Application: wheelbase 250mm multirotor

FlySky FS-T6 2.4GHz Digital Proportional 6 Channel Transmitter and Receiver System:
- If you need FS-T6 Manual,  please leave your email to us!
- FlySky Introduces its newest 6 channel 2.4GHz system, The FS-T6. After years of success with the CT6B, FlySky presents the new FS-T6 with loads of cool and convenient features making the operation of this transmitter simple and instinctive.
- The 6-channel FlySky FS-T6 is the perfect transmitter for sport modelers who want the power of a programmable transmitter but don't necessarily need a lot of excess features they do not use. It includes all of the important features and programmable parameters to support a variety of helicopters, gliders, and airplanes. It even has the ability to store 20 models allowing the user to save a whole fleet of aircrafts.
- Programming the FS-T6 is very easy and intuitive. It is implemented with a simple click and scroll dial allowing quick and easy menu navigation and manipulation. The large backlite LCD screen with large fonts is easy to read and the simplified menus will immediately put first-time programmers at ease. Many programming functions like throttle curves and expo are graphically depicted to give you a clearer picture of the changes you're making.
- FlySky AFHDS (Automatic Frequency Hopping Digital System) 2.4GHz system offers a lot of advantages. It is equipped with a super active and passive anti-jamming capability and has very low power consumption with high receiver sensitivity. The 2.4GHz system puts the radio out of the frequency range by any generated by other electronic components in your model such as the brushless motor, speed controller, servos, or other metal to metal noise. This eliminates interference and glitching that can plague a traditional radio system. Extreme rigorous testing by FlySky engineers makes this AFHDS system solid and worthy.

Recommended installation:(Not include)
- Battery: 4S 1300mah 45C/90C Nanotech, 4S 1400mah 40C/80C Nanotech, 4S 1500mah 35C/70C Nanotech
- CCD Camera: SONY Super HAD CCD 600TVL Board Camera w/ 2.8mm lens - Settings to use on camera
- HD Camera:  Action Camera
- Video Transmitter: ImmersionRC 600mw Video Transmitter
- Antenna: ImmersionRC SpiroNet V2 (SMA)

Package List:
- 250mm Carbon Fiber 4 Axis Mini Quadcopter  X  1pcs
- Openpilot CC3D Flight Control  X  1pcs (SKU:30743)
- MT2204 KV2300 Brushless Motor CCW   X  2pcs
- MT2204 KV2300 Brushless Motor CW   X  2pcs
- Hobbywing XRotor-10A-opto Series Multiroter ESC  X 4pcs (SKU:31350)
- 6*3 6030 Carbon Fiber Propeller X 2 pairs
- BEC ESC Power Distribution Board
- FlySky FS-T6 2.4GHz Digital Proportional 6 Channel Transmitter and Receiver System  X  1pcs (SKU:30361)
