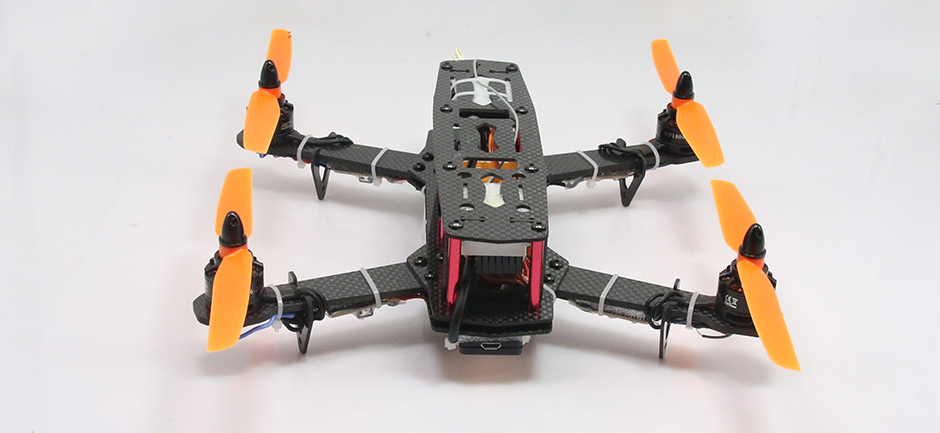

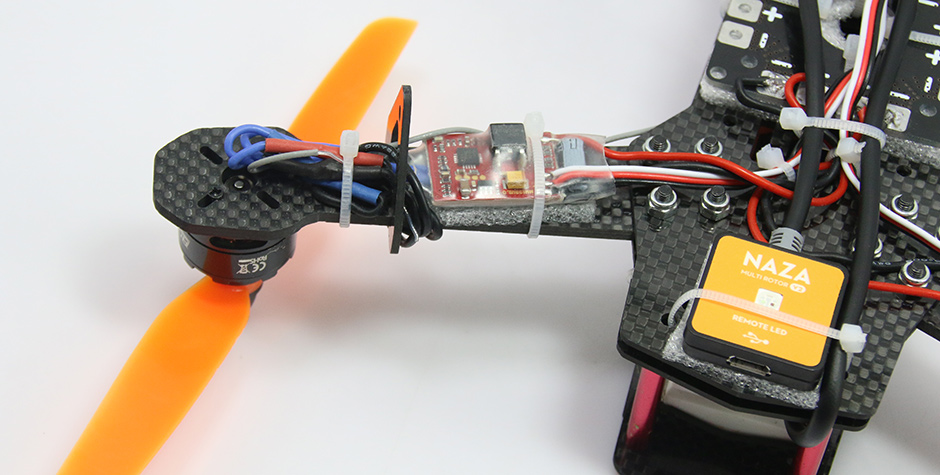

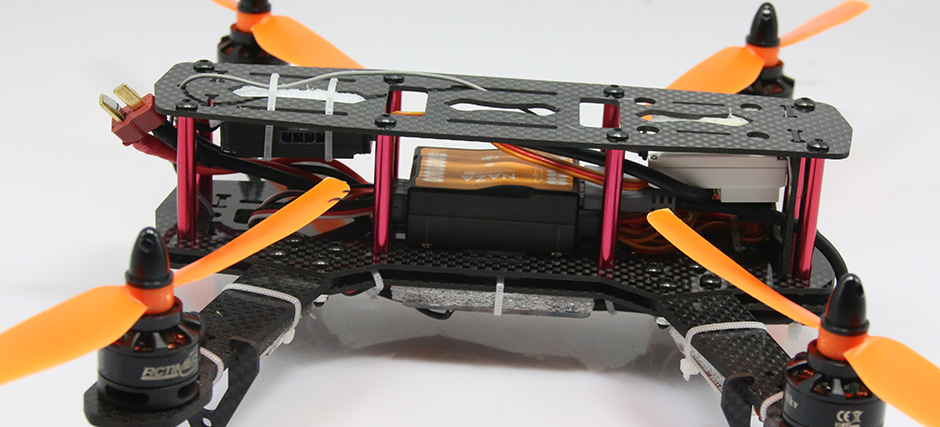

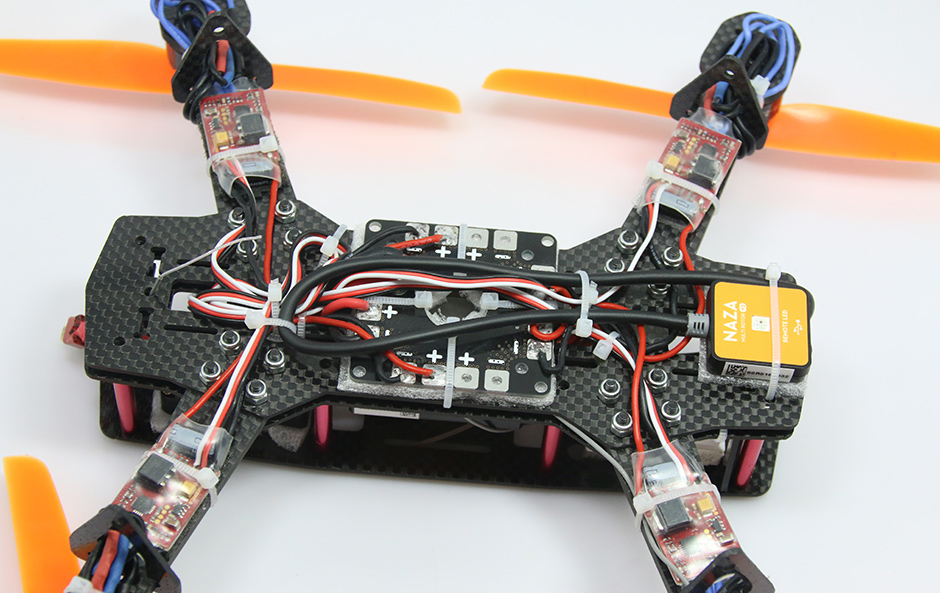

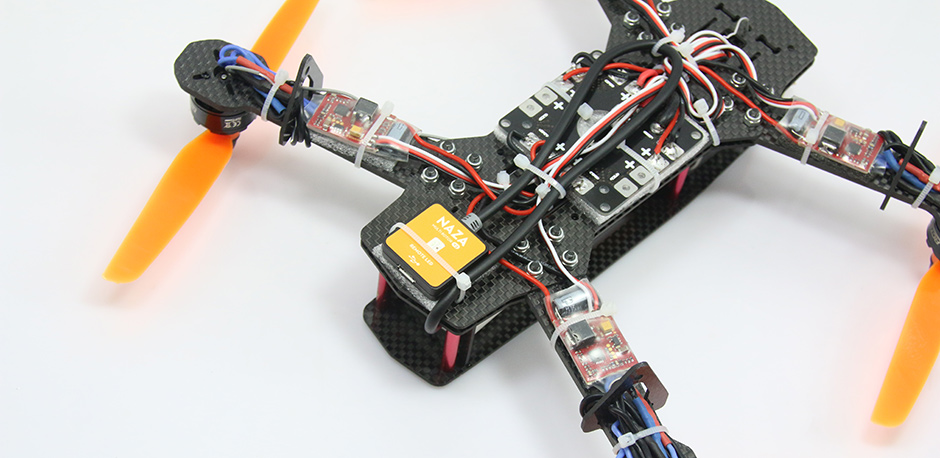

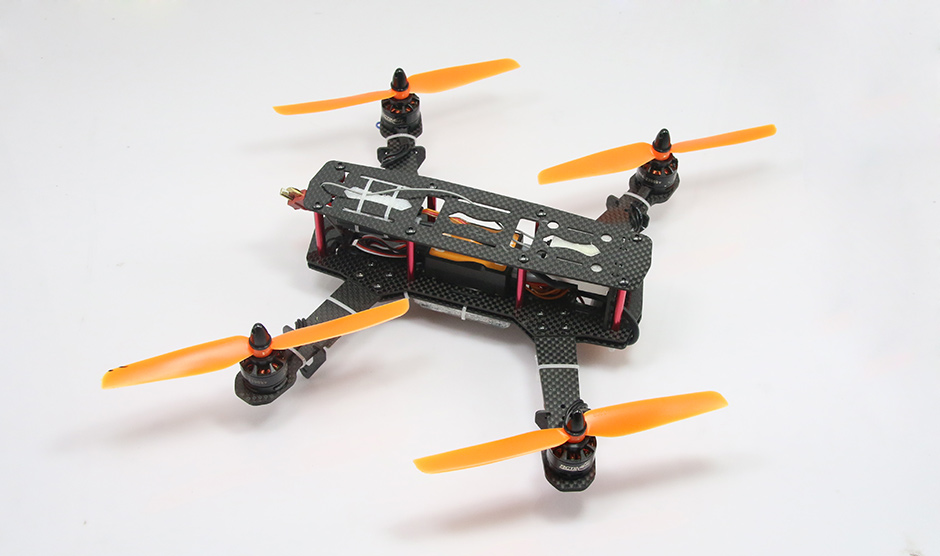

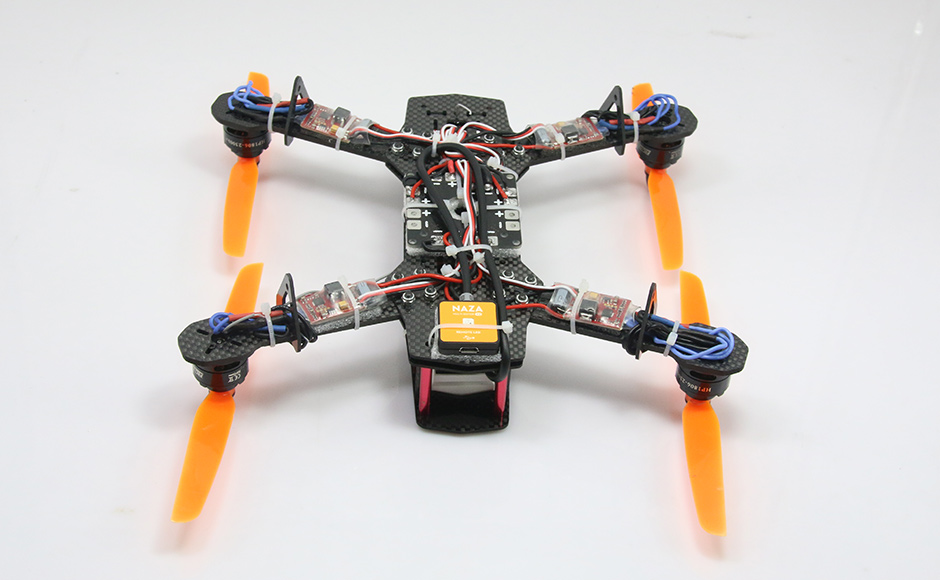

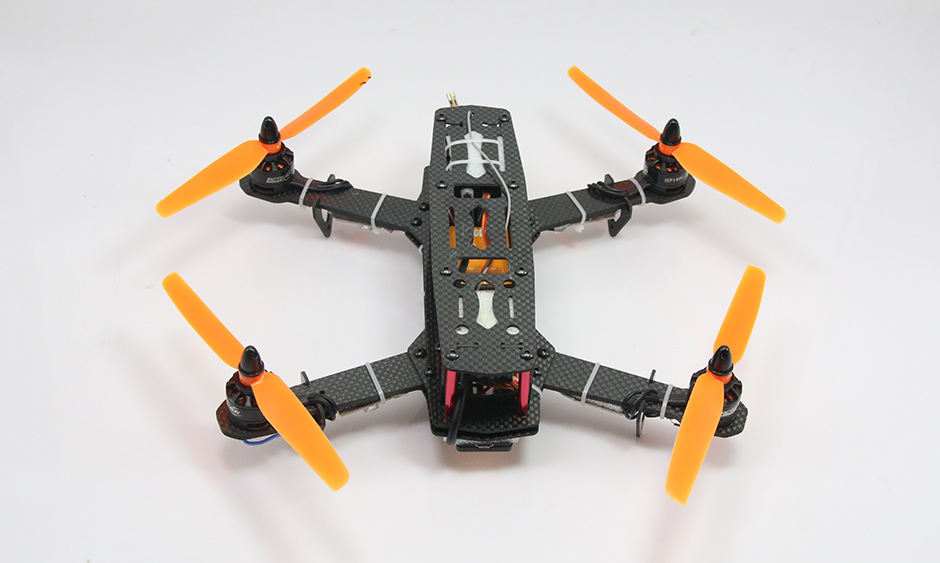

250mm Carbon Fiber 4 Axis Mini Quadcopter + Naza Lite(GPS) & DYS BE1806 & Hobbywing XRotor 10A ESC

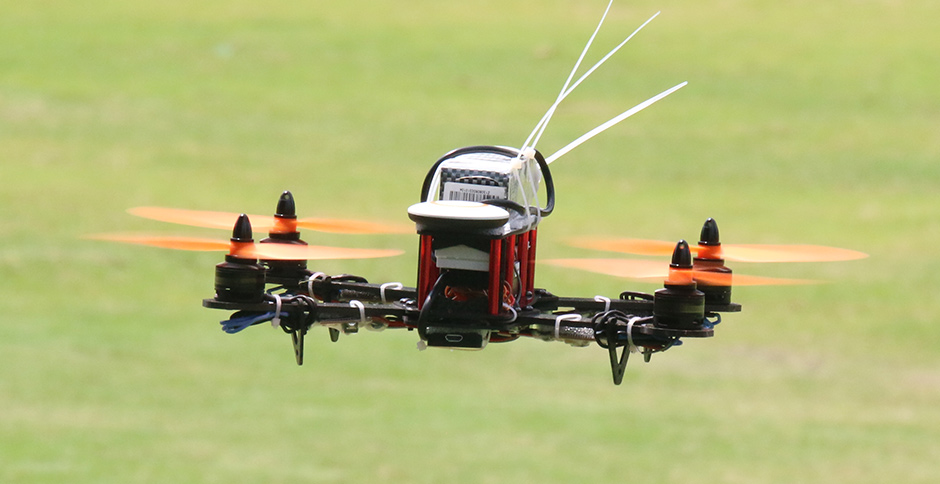

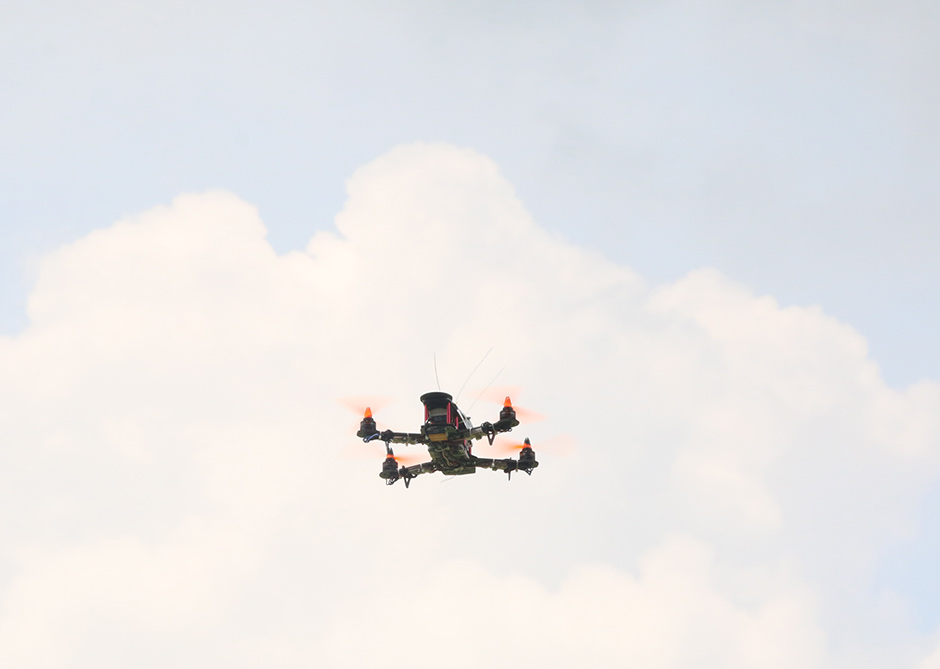

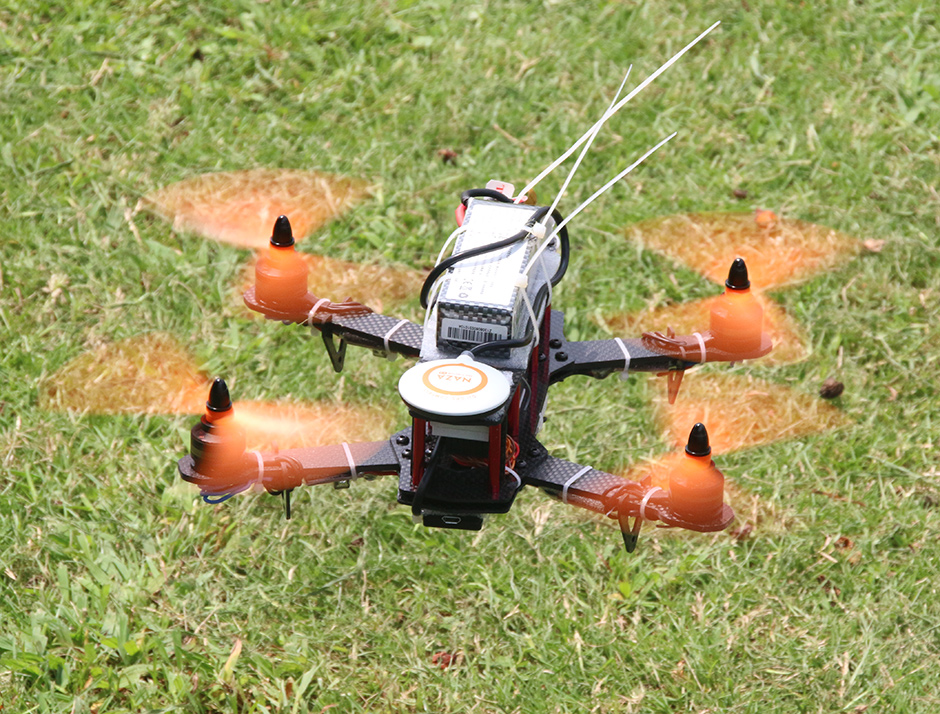

Location Test Flight:
Description:
- Frame Weight: Version 1: 90 grams, Version 2: 123 grams w/ Anti-Vibration Mount
- Materials: 3k Weave Carbon Fiber
- Fasteners: Stainless Steel & Black Nylon 6/6
- Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
- Maximum Propeller: 5"

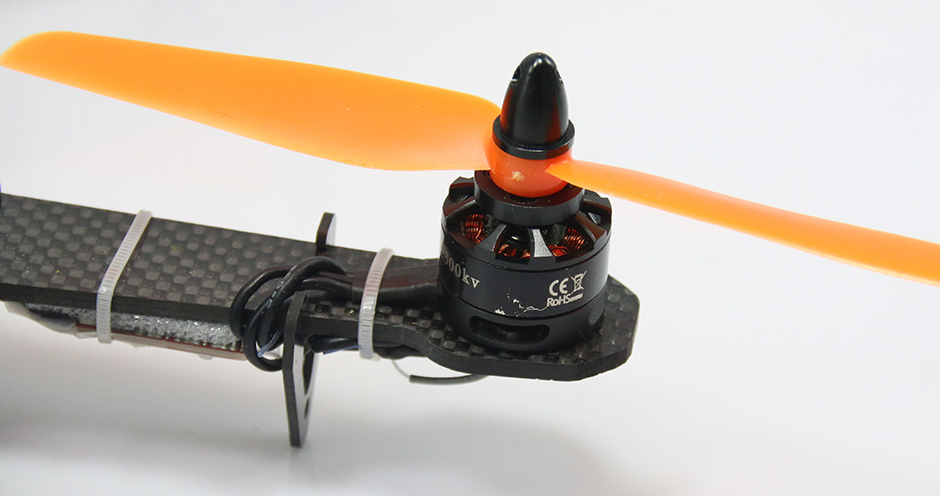

- Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)
- Flight Controller Mount: 30.5mm x 30.5mm
- Board Camera Mount: 32mm x 32mm
- 1.5mm carbon fiber fuselage
- Machine arm 3.0mm
- Aluminum Jin Zhuzai
- AV shockproof ball
- FPV installed by edition
- Screw
- Carton packaging 177g
Recommended installation:(Not include)
- Battery: 3S 1300mah 45C/90C Nanotech, 3S 1400mah 40C/80C Nanotech, 3S 1500mah 35C/70C Nanotech
- Walkera Devo 7 or Walkera Devo 10 or Futaba Remote Control
- Receiver: FrSky D4R-II receiver
- CCD Camera: SONY Super HAD CCD 600TVL Board Camera w/ 2.8mm lens - Settings to use on camera
- HD Camera: Action Camera
- Video Transmitter: ImmersionRC 600mw Video Transmitter
- Antenna: ImmersionRC SpiroNet V2 (SMA)

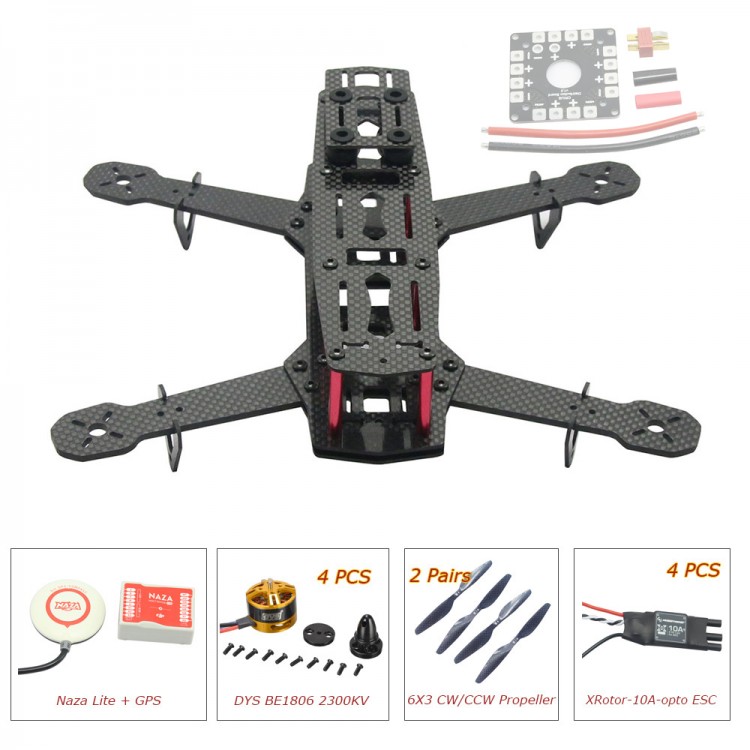

Package List:
- 250mm Carbon Fiber 4 Axis Mini Quadcopter X 1pcs
- DJI Naza Lite + GPS X 1pcs (SKU:25935)
- DYS BE1806 2300KV Multicopter Motor X 4pcs (SKU:29997)
- Hobbywing 10A ESC X 4pcs (SKU:30765)
- 6*3 6030 plastic Propeller X 2 pairs(2pcs CW + 2 PCS CCW)
- BEC ESC Power Distribution Board X 1pcs (SKU:28801)
