Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $72.09 | $70.62 | $68.41 | $65.47 | Contact US |

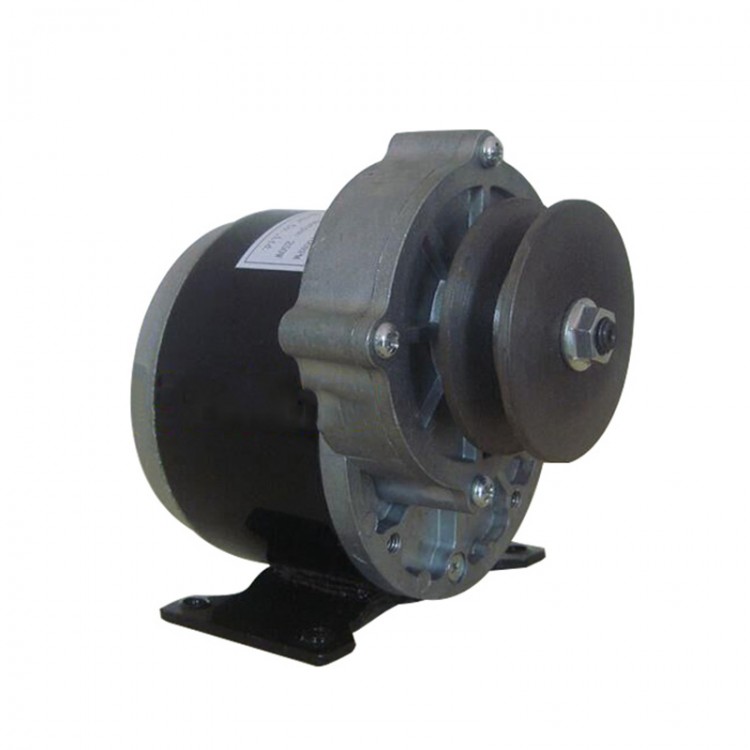

250W 24V DC Electric Motor Electric Scooter Motor w/Belt Pulley for eBicyle eBike Electric Wheelchairs
Description:
This electric scooter motor will be an excellent replacement for MY1016Z2. It can achieve the same outstanding performance as MY1016Z2 does.
Dimensions of 250W 24V Motor:
- Diameter: 102mm
- Length (with the size of shaft): 140mm
- Shaft Screw Thread: M8
- Weight: 2.7kg
- Fixing Hole Spacing: 95 x 42mm (L*W)
- Base Plate Size: 110 x 55mm (L*W)
V-Type Belt Pulley:
- Material: Cast Iron
- Core Hole Diameter: 11mm
- Groove Width: 4mm
- Compatible with type A triangular belt
Package Included:
- 1 x DC Brush Electric Motor
