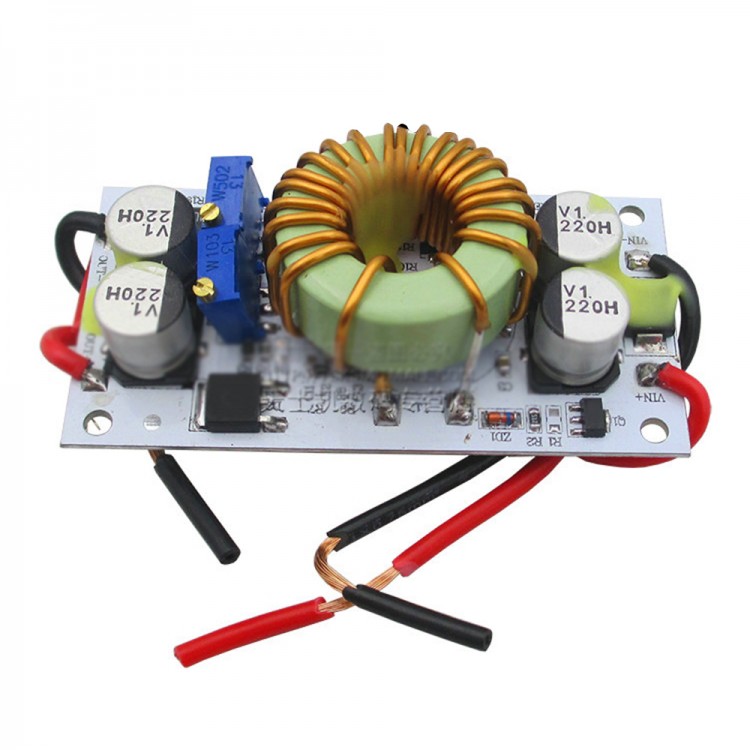

250W Adjustable Step Up Boost Converter Power Supply Module LED Driver for Car
Specification:
- Non isolated boost module
- Input voltage: DC8.5V-48V
- Input current: 10A (MAX). if over 8A, please add a radiator
- Static operating current: 10mA (when 12V to 20V, the higher the output voltage, the more current will be)
- Output voltage: 10-50V continuously adjustable,12-80V fixed output
- Output current: MAX 10A , if over 6A, please add a radiator
- Constant current range: 0.2-8A
- Output power: = input voltage *10A, (for example: input 12V*5A=60W)
- If you need more power, you can use two modules in parallel
- Operating temperature: -40~+85 degrees
- Frequency: 150KHz
- Conversion efficiency: Maximum 96%
- Over current protection: Yes
- Input back protection: Yes
- Installation: 4 *3mm screw holes
- Module size: L 70mm W 36mm H 13mm
- Weight: 50g
Package List:
- 1 x Power Supply Module
