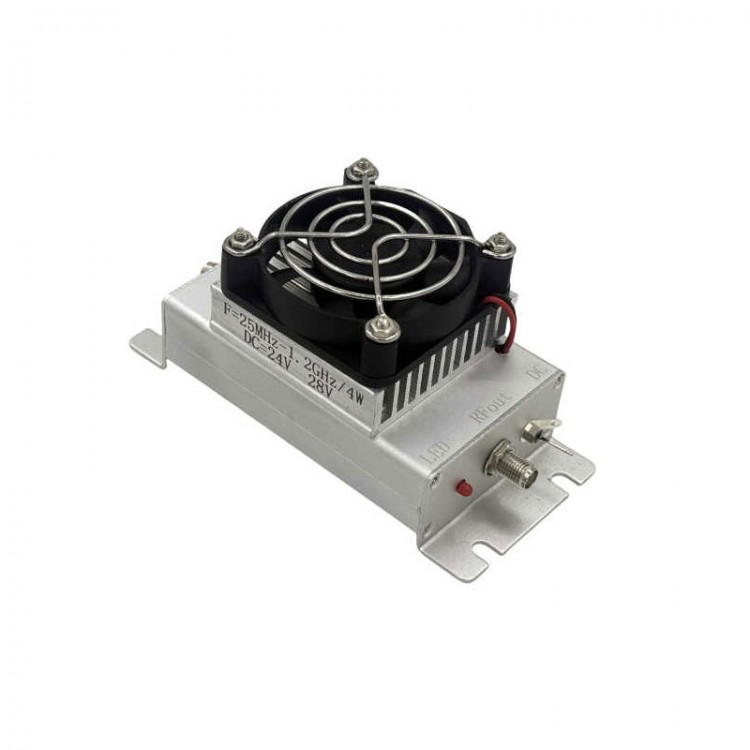

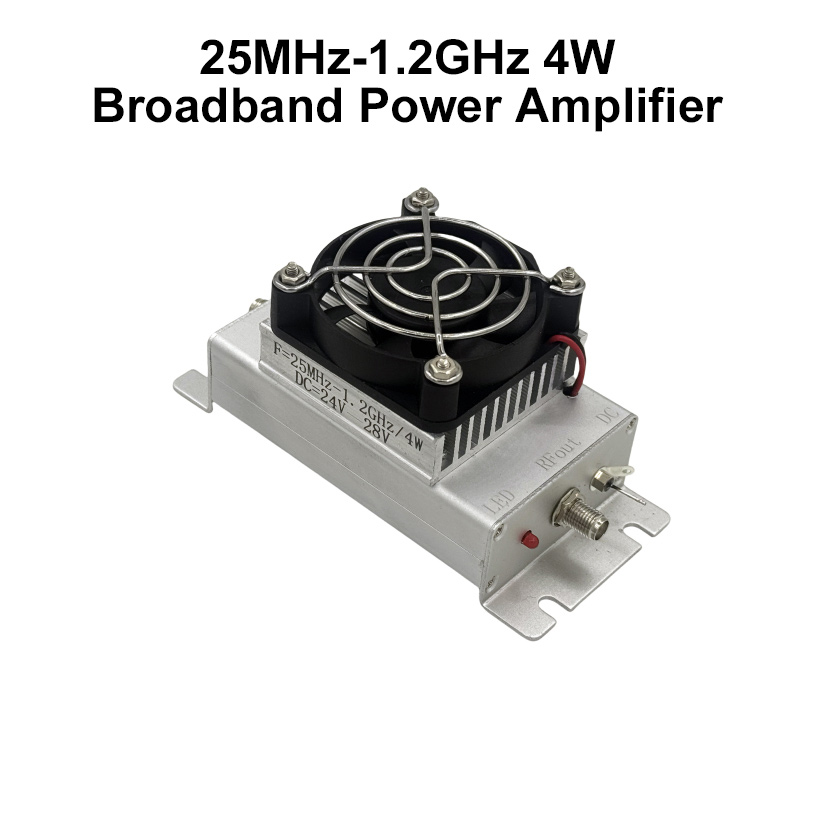

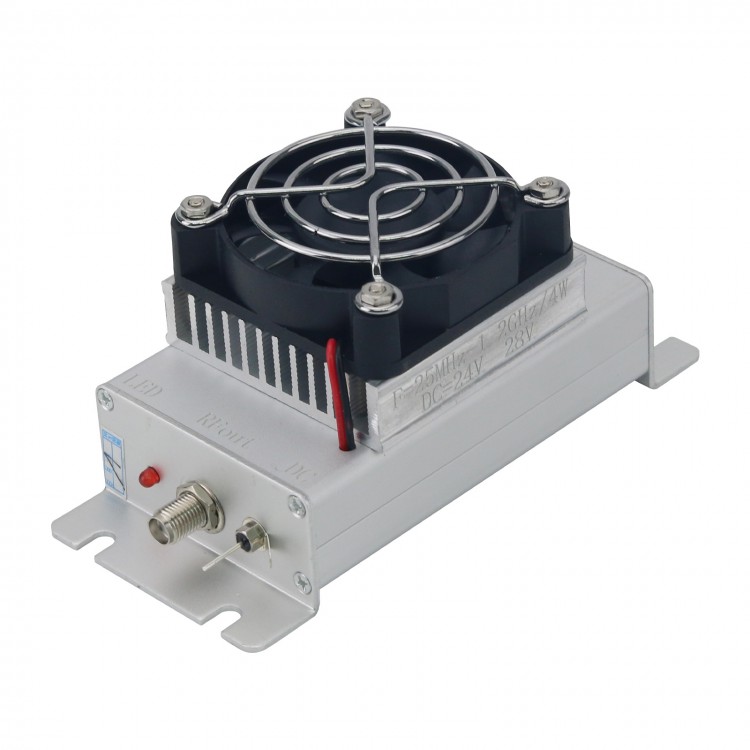

25MHz-1.2GHz 4W Broadband RF Power Amplifier RF Power Amp Module with 40dB Gain Heat Sink and Fan
Attention:

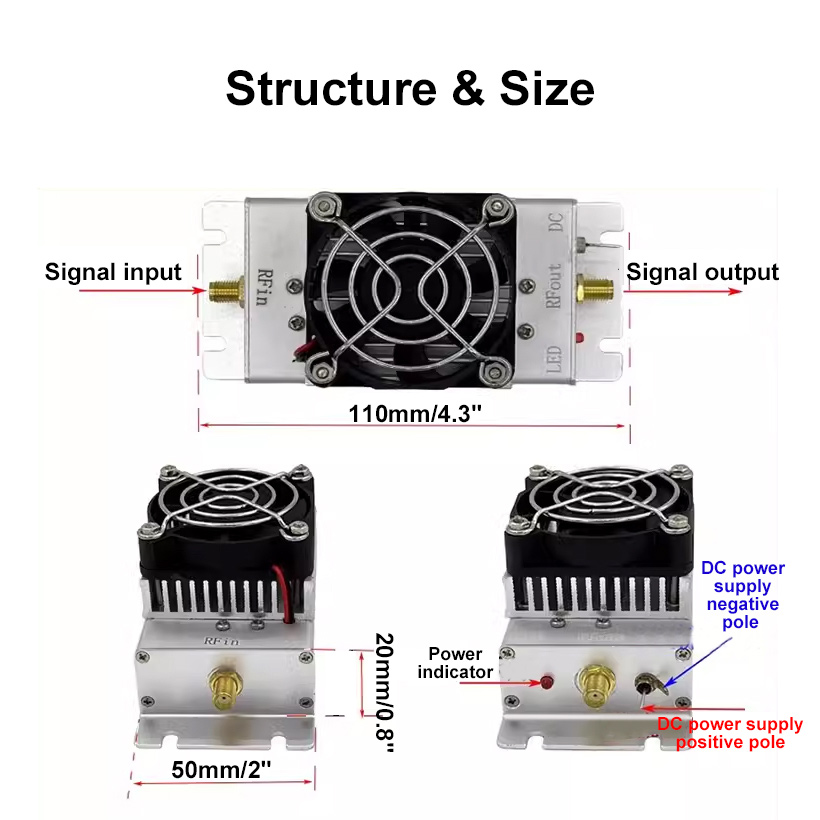

1. The input terminal (RF in) and the output terminal (RF out) of the module must be connected first. And then connect the module to a DC power supply.
2. Be sure to connect the positive and negative poles correctly when the module is powered by a DC power supply. Reverse connection is not allowed because the module will be damaged.
Specifications:
- Operating frequency: 25MHz~1200MHz (25MHz-1.2GHz)
- Input and output impedance: 50Ω
- Gain: 40dB (typical)
- Input power (MAX.): 7dBm (5mW)
- Output power (MAX.): 36dBm 4W
- Supply voltage (DC): 24V-28V
- Operating current: 1.1A (typical)
- Classic input power: 3dBm (2mW) at 24V
- Classic output power: 34.5dBm-37dBm (2.5W...5W) at 24V; varies with frequency
- Recommended supply voltage: 24V
- Connector type: SMA female
- Heat dissipation: heat sink + fan (normally on)
- Housing material: Aviation aluminum alloy
- Weight: 24g/0.05lb
Attention:

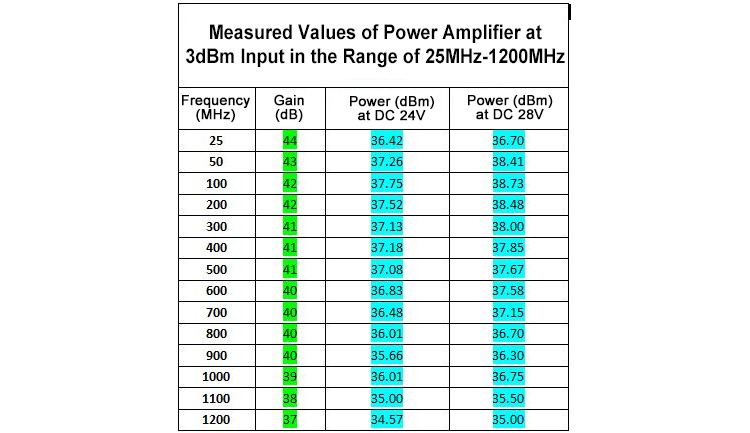

- For specific parameters, please refer to the measured values below
Package Included:
- 1 x RF Power Amplifier
Packaging Details:
- Weight: 0.25kg
