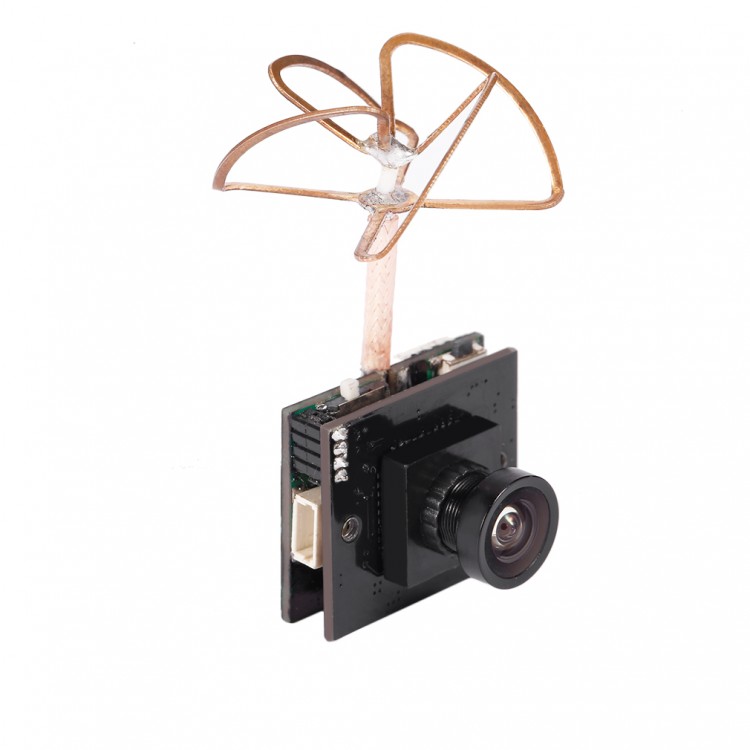

25mW 200mW 600mW Camera Module Switchable Power 5.8G 48 CH FPV 800TVL Built in Transmitter

25mW 200mW 600mW Camera Module Switchable Power 5.8G 48 CH FPV 800TVL Built in Transmitter

Product Features:

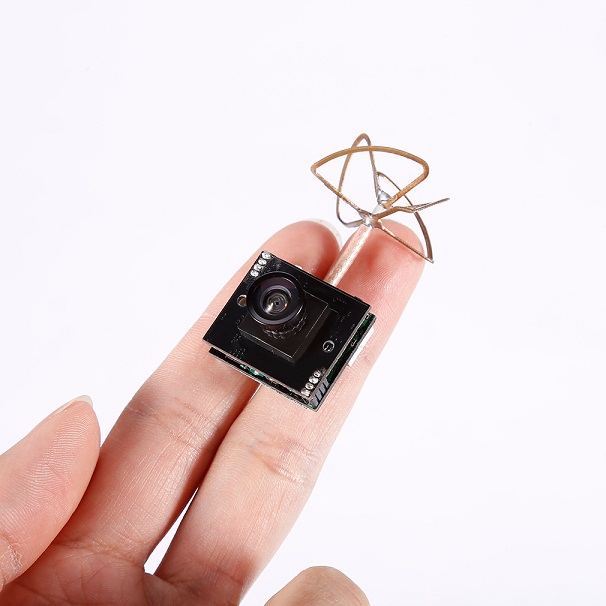

- Ultra-small size 5.8G 25/200 / 600mW third gear power switchable 48 frequency band transmission

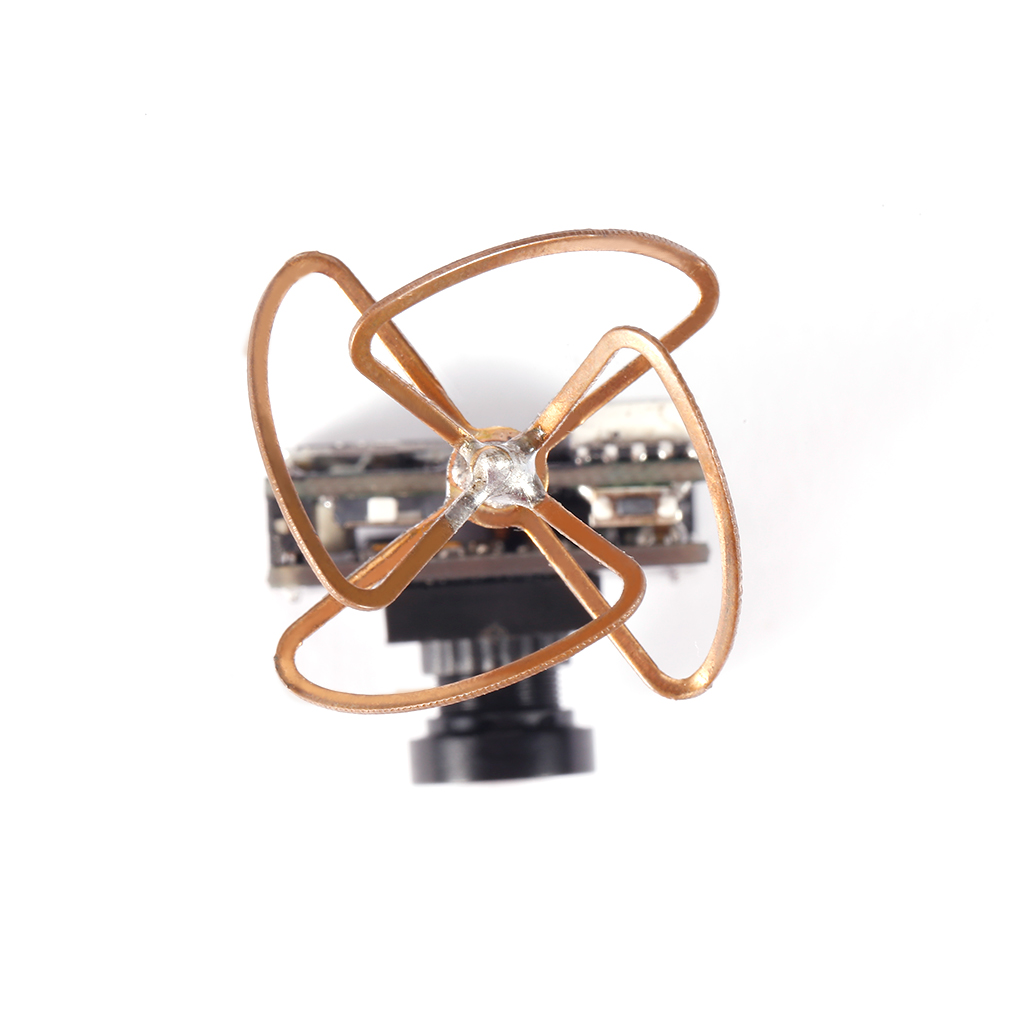

- With 800TVL high-definition analog camera program, with welded 3DBI omnidirectional four-leaf antenna,suitable for Indoor hollow cup and brushless machine,can also achieve a better map pass effect through the wall.
- Support single-button frequency selection and power switching, support NTSC / PAL system switch.
- Remote Control Peripherals/Devices :Other
- Tool Supplies :Assembled class
- Material :Composite Material
- Upgrade Parts/Accessories :Other
- Four-wheel Drive Attributes :Assemblage
- For Vehicle Type :Airplanes
- Technical parameters :Value 2
- RC Parts & Accs :Transmitters

Specifications:
- Working voltage: 7.4v ~ 18v
- Working current: 100 ~ 300mA (DC 12v power supply)
- Transmission power: 25mW / 200mW / 600mW
- Frequency: 5.8G 48CH

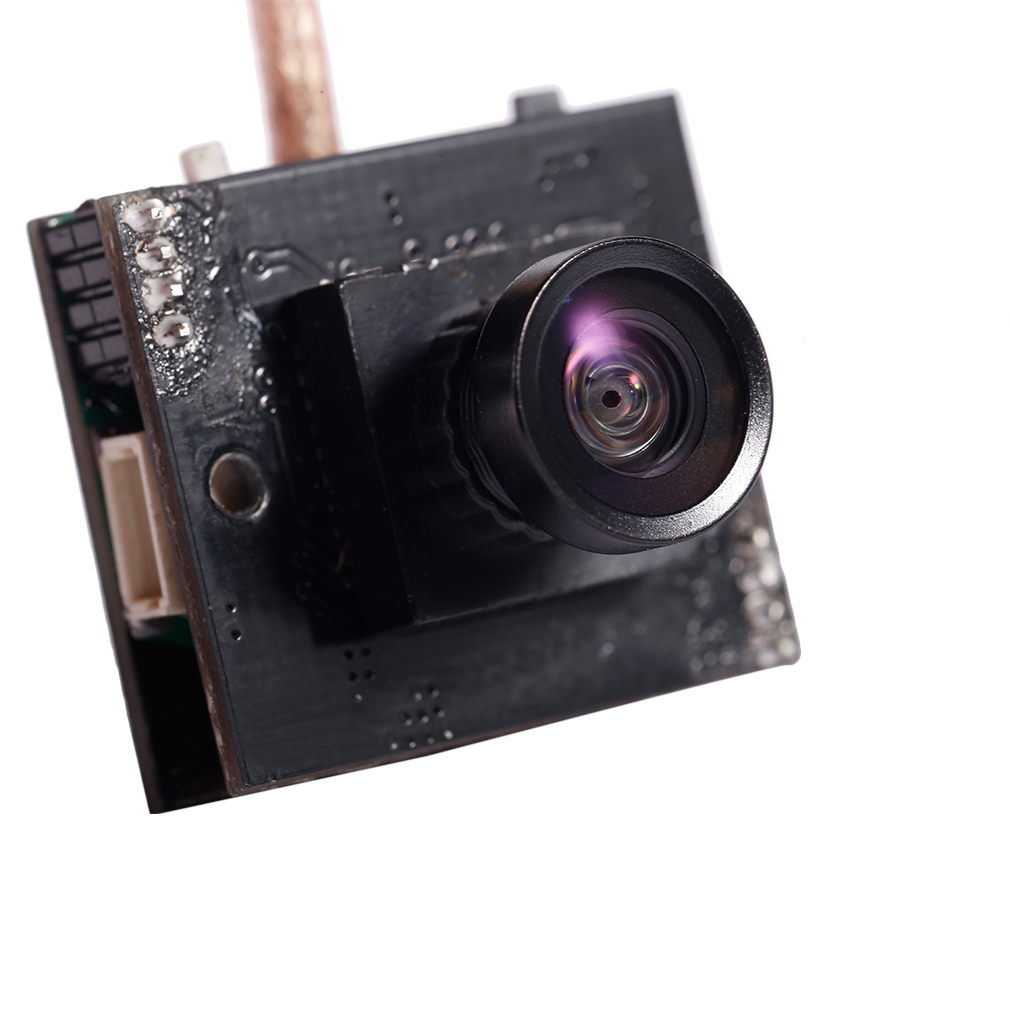

- Camera: 800TVL resolution
- Effective pixels: PAL: 720X540 / NTSC: 640X480 1/3 "
- Sensor chip: 1/3 inch HD Color CMOS
- Lens angle: H: 120degree / V: 100 degree

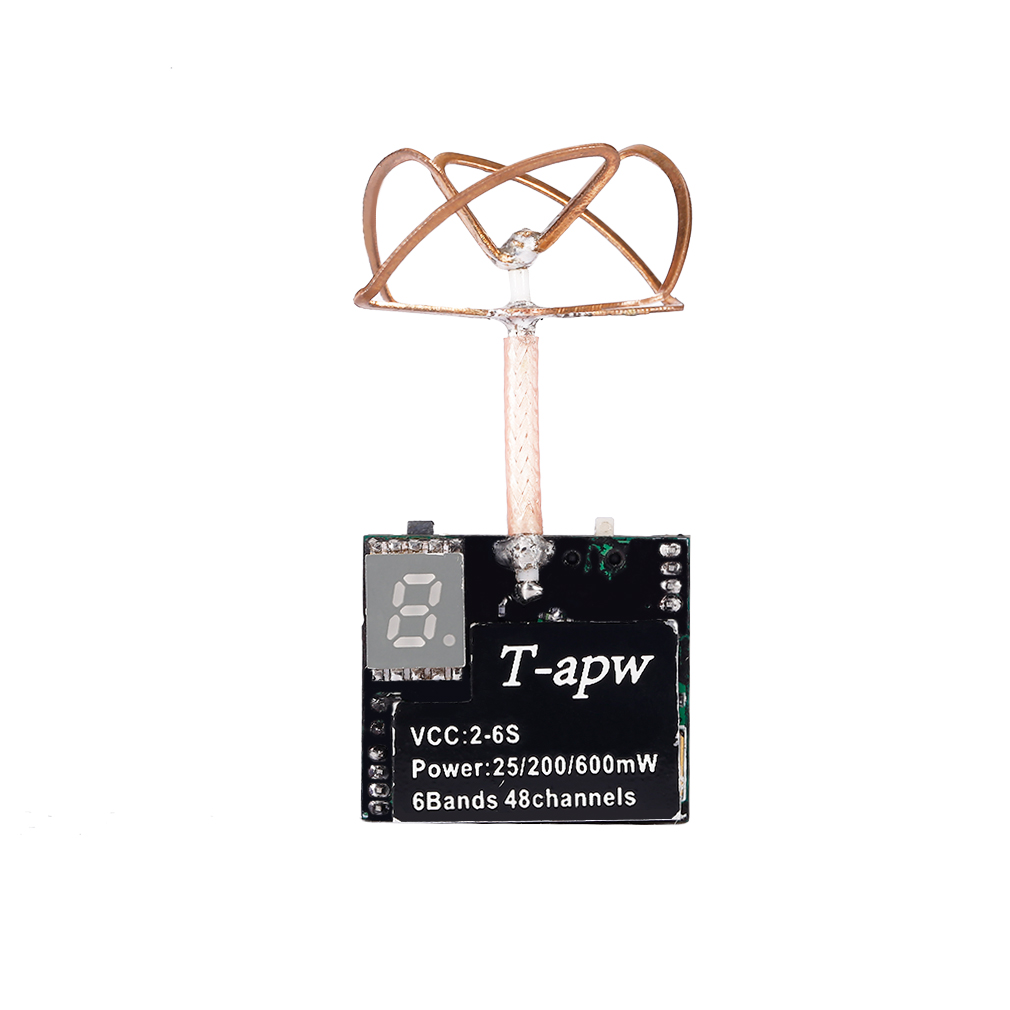

- Digital tube alternately displays channel / frequency / power information
- Operating temperature: -10 degree ~ +60degree

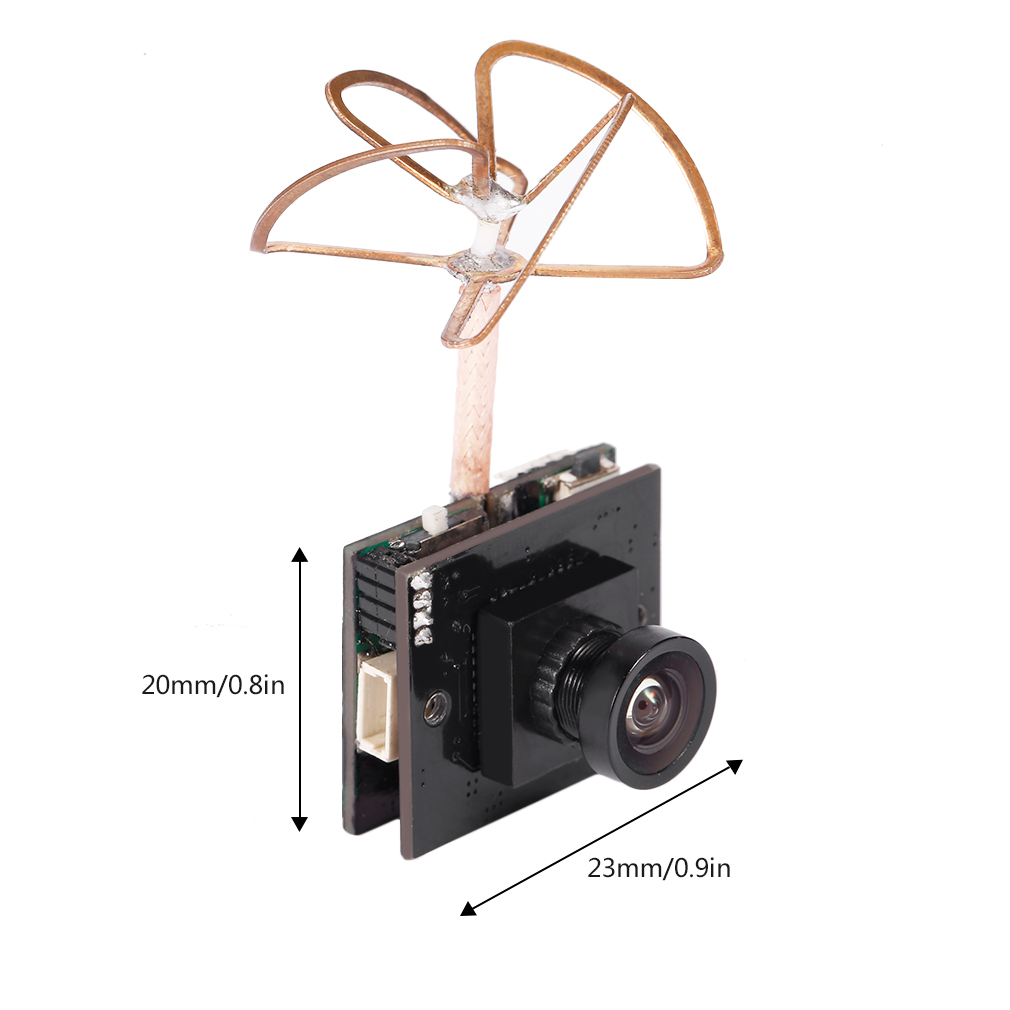

- Size: 23X20X20mm/0.9X0.8X0.8inches(excluding the antenna)
- Lens size: 11X 11 X 10mm/0.4X0.4X0.4inches
- Package size: 120X80X25mm
- Weight: 9g

Package List:
- 1  X  FPV Camera
- 1  X 4-pin cable
