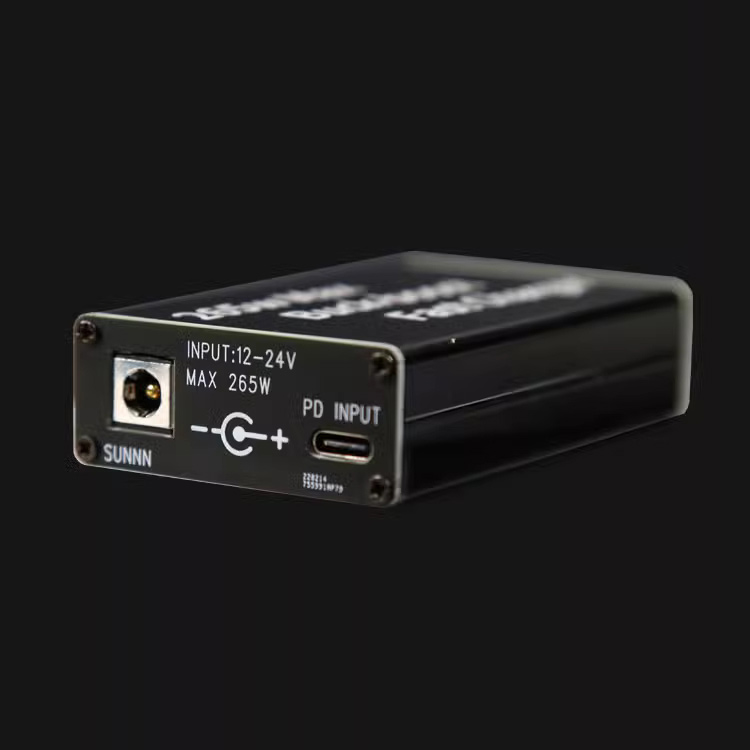

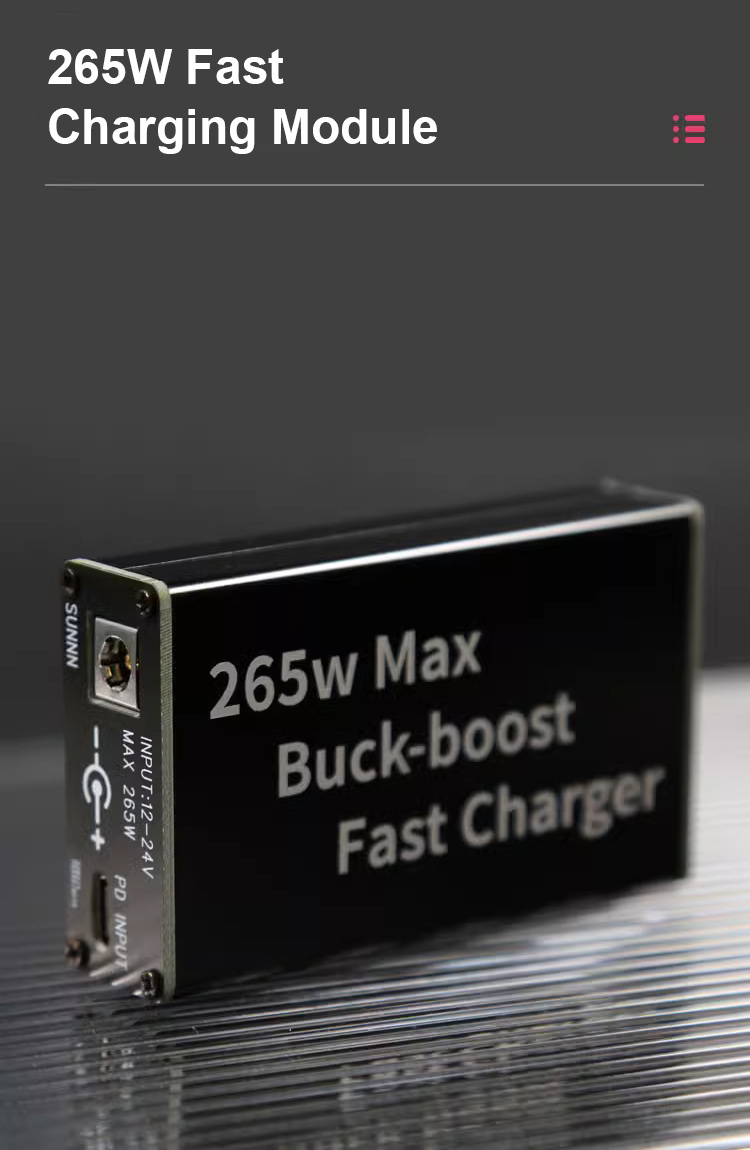

265W 3CH Buck-Boost Fast Charger Full Protocol Fast Charging Module Desktop Charger for QC3.0 QC5+
Attention:
This module is a buck-boost module. When there is no load, the module will also generate heat about 40°C. Its static power consumption is 3-4W.
Features:
- Full-protocol fast charging module: It is a desktop charger, not a power bank. It supports SuperVOOC. It is a buck-boost fast charging module and car charger.
- Input voltage is DC 12V-24V, and the input interface is type-c or DC55-2.1.
- The output is three independent outputs (power is independent and not shared). The interfaces are type-c, type-c and USB-A. And the output power is 100W, 100W and 65W respectively. Among them, the C1 port adopts a buck-boost design (that is, when the input is 12V, it can also generate a PD voltage output of 20V). Port C2 and port A are designed for step-down (the protocol of port C1 and port C2 is the same).
- Supports almost all mainstream protocols, such as pd3.0 (100W), QC5+, 965W SuperVOOC, Huawei 40W and AFC for Samsung.

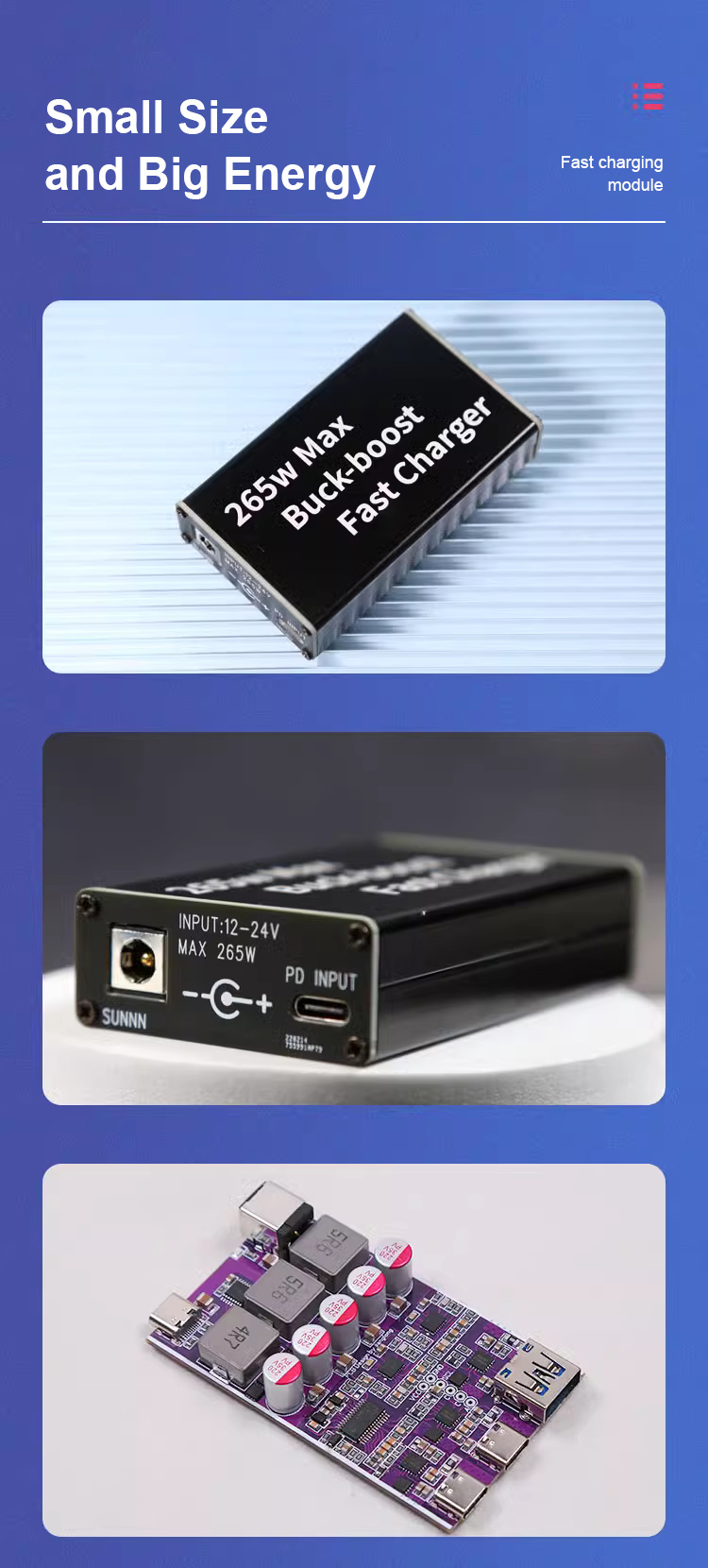

- With an aluminum alloy anodized shell. The product dimensions are 86mm x 50mm x 20mm / 3.4" x 2" x 0.8". Small size and big energy.

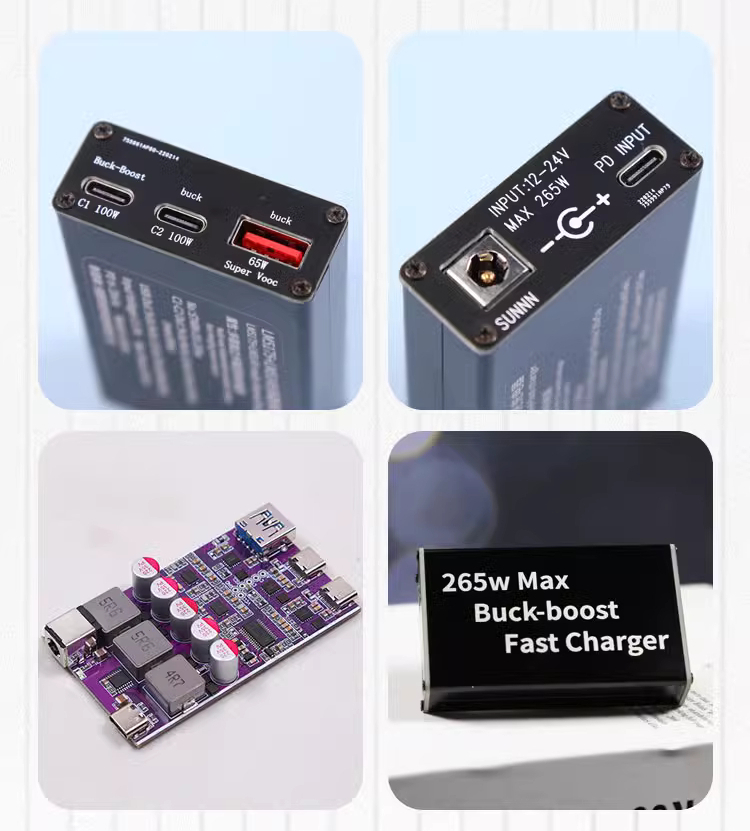

- Premium components: 3pcs Cooper 5.1 uh inductors, solid-state capacitors from Taiwan, Krconn's latest type-c port, imported power chip for TI, original MOSFETs for ON Semiconductor and the latest protocol chips.
Specifications:
- Product name: Full Protocol Fast Charging Module
- Input voltage: DC 12-24V
- Input interface: Type-C/DC55-2.1
- Output power: 100W / 100W / 65W
- MAX. power: 265W
- Output ports: 2 type-c and 1 USB ports
- Supports PD input: Yes

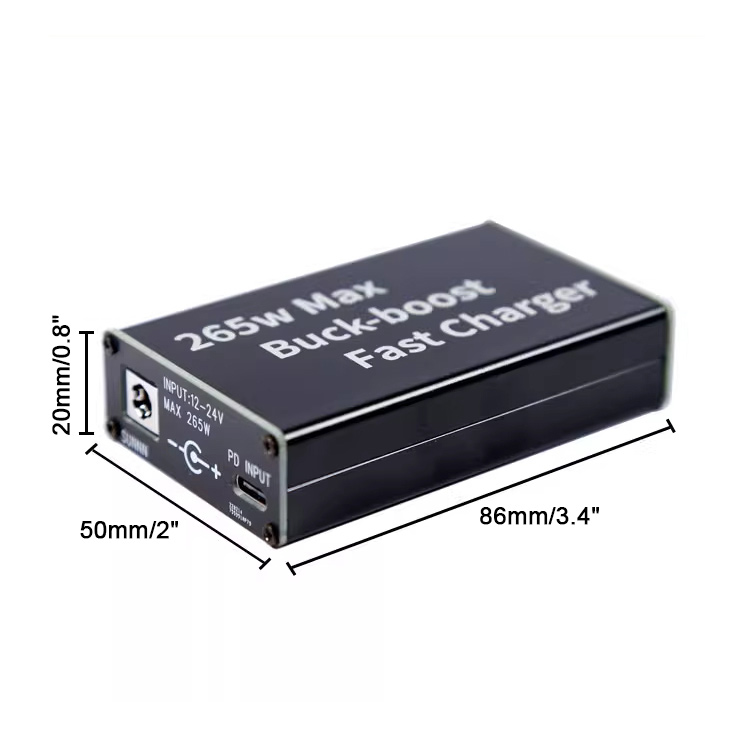

- Dimensions: 86mm x 50mm x 20mm / 3.4" x 2" x 0.8"
- Weight of the main unit: 85g/0.2lb
- Multi-channel fast charging at the same time: 3CH
- Features: small size, high power, supporting USB and with buck-boost output
Package Included:
- 1 x Desktop Charger
Packaging Details:
- Weight: 0.35kg
