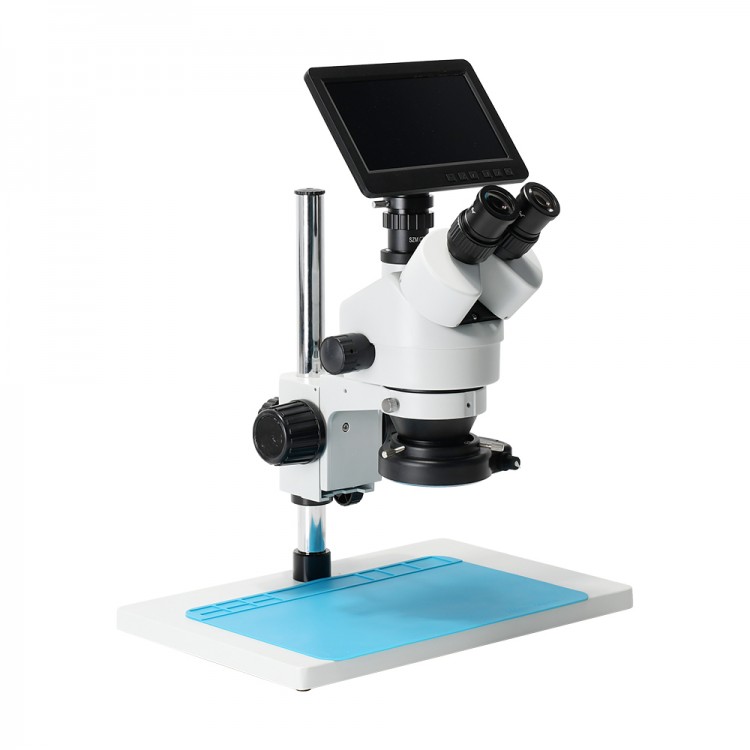

26MP Trinocular Microscope HDMI Stereo Microscope Video Camera With 7" LCD Screen For Phone Repair

26MP Trinocular Microscope HDMI Stereo Microscope Video Camera With 7" LCD Screen For Phone Repair

Features:
- 7X to 45X Continuous Zoom Magnification Power
- 45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
- Trinocular port for adding photo or video capability
- 30mm/1.2" Super Widefield WF10X Eyepieces with 20mm/0.8" Field of View
- High Resolution with Great Flatness and Contrast
- Sharp Stereo Erect Images over a Wide Field View
- Crystal Clear Original True Color Images
- Large Working Distance
- Accurate Alignment Ensuring a Fatigue-Free Viewing
- Full Optical Glass Elements
- Precise Ground Glass Lens
- All Metal Mechanical Components
- Adjustable Interpupillary Distance
- Manufactured under ISO 9001 Quality Control Standard
- Stand Size: 38 x 20 x 30cm/15 x 7.9 x 11.8" (LxWxH)

Trinocular Stereo Specifications:
- Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
- Eyepiece: 30mm super widefield high-eyepoint WF10X/20
- Objective: 0.7-4.5X
- Zoom Range: 6.5:1
- Trinocular Port: 23mm photo port
- Interpupillary Distance: 54-76mm/2.1-3"
- Field of View: 33mm/1.3"
- Working Distance: 7X-45X (100mm/3.9"); Use 2.0x objective lens 7X-90X (40mm/1.6")
- Head Mounting Size: 76mm/3" diameter
- Accessory Mounting Size: 48mm/1.9" female thread in diameter

7-Inch Microscope Camera:
- Image Sensor: 26 Megapixel HD Sensor for CMOS
- Video Output: 1080P Full HD (for H'DMI); 1080P (for USB)
- Video Format: MP4
- Magnification: Standard optical Magnification 150X (Max up to 300X), digital magnification 2100X
- Photo Resolution: 26MP (5888x4416), 20MP (5120x3840), 16MP (4608x3456), 10MP (3648x2736), 8MP (3264x2488), 5MP (2592x1944) and 2MHD (1920x1080P)
- Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages
- Cross line: 8 lines, color, width, position can be set
- Photo Format : JPEG
- Working distance : 5cm to 12cm/2-4.7"
- Video Output: HDMI/USB
- RGB: RGB value setting is irrelevant
- Microphone: Support
- Storage: TF card storage, 128G max
- PC Support: Support for Windows XP/7/8/10 system
- Other features (for HDMI): White Balance: Automatic/Manual; Color: standard /black&white /Sepia; Exposure: Automatic / Manual; Sharpness: Manual; Saturation: Manual; Mirror Set: Normal/Mirror/Flip/Mirror + Flip; Contrast: Manual; Frequency: 50hz/60hz
- Screen Size: 7 inch
- Power for remote control: CR2025 battery (built-in)

144 bright LEDs:
- Variable lighting direction
- Variable power control
- Strong and concentrated shadowless lighting
- 100,000 hours of life
- Power Input: 100-240V, 50-60HZ, automatic switching
- The Inner Diameter of The ring Light: Approx. 27mm/1.1"
- Overall Outer Diameter: Approx. 45mm/1.8"
- Working Distance: Approx. 27-120mm /1.1-4.7"

Problem & Solution:
LCD with no video or flickering
1. Check the power supply. Check if the red LED lights up. Press Power Key to move it up.
2. Check the lens cover. Increase lighting.
3. Check the camera and lens, find the dust, and then cleanly it with absolute ethanol or detergent

Packing Included:
- 1 x Trinocular Stereo Zoom Head
- 1 x Pair of Super Widefield 10X20MM Eyepieces
- 1 x 1/2CTV C-mount Adapter
- 1 x 144-LED Ring Light
- 1 x Table Stand
- 1 x Pair of Eye-Guards
- 1 x Dust Cover
- 1 x 7-Inch HDMI Video Camera
- 1 x HDMI Cable
- 1 x USB Cable
- 1 x IR Remote control
- 2 x Power Supply Adapters
- 1 x 2.0X Auxilliary Objective Lens
- 1 x High Temperature Resistant Working Pad
