2800W ZVS Induction Heater with Overload Protection Pedal Switch Regular Version

2800W ZVS Induction Heater with Overload Protection Pedal Switch Regular Version

Description:

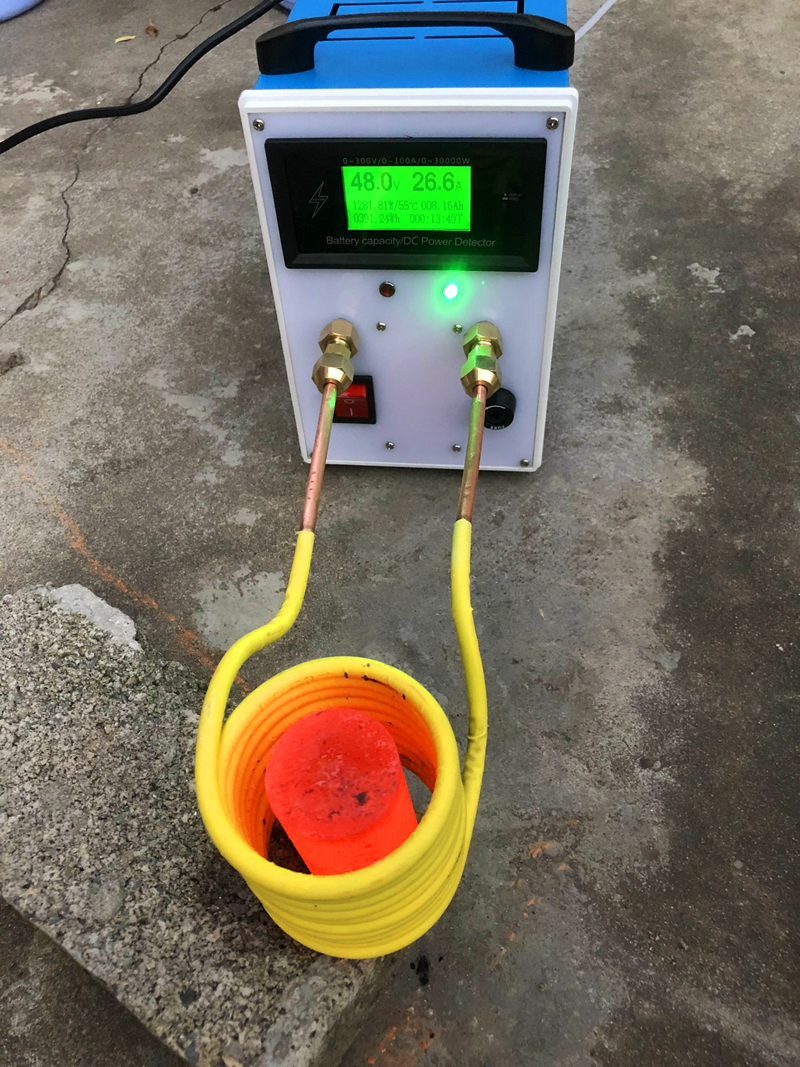

Powered by AC110V-220V, it is a ZVS induction heater mainly used for the heating and quenching of small ferrous metal materials.

Features:
- Integrated metal shell for easy carrying and excellent heat dissipation performance
- Integrated power supply avoids complicated wiring
- The heating coil is wrapped with high temperature resistant thermal insulation material to prevent short circuits during heating
- Built-in water cooling cycle system to stop heating coil from being over-temperature
- Dual high-power fans for heat dissipation
- Digital current overload protection switch to protect the circuit
- Ultra large LCD screen displays working parameters, including voltage, current, power and main board temperature. One button to switch between Chinese and English interface. The maximum allowable current can be set through your power meter. When the maximum operating current is exceeded during operation, it immediately enters the overload protection mode.
- Metal button switch and pedal control to meet your various needs
- Water cooling system designed with water shortage protection

Specifications:
- Dimensions: 380 x 140 x 210mm (L*W*H)
- Heating Coil: 70 x 60 x 73mm (Outer Diameter*Inner Diameter*H)
- Input Voltage: AC110-AC220V 12A
- DC Operating Voltage: 48V (The displayed voltage is the voltage of internal power supply)
- Maximum DC Working Current: 58A
- Metal iron can be heated in 700-800℃
- Compatible crucible temperature up to 1600℃
- N.W.: 6kg

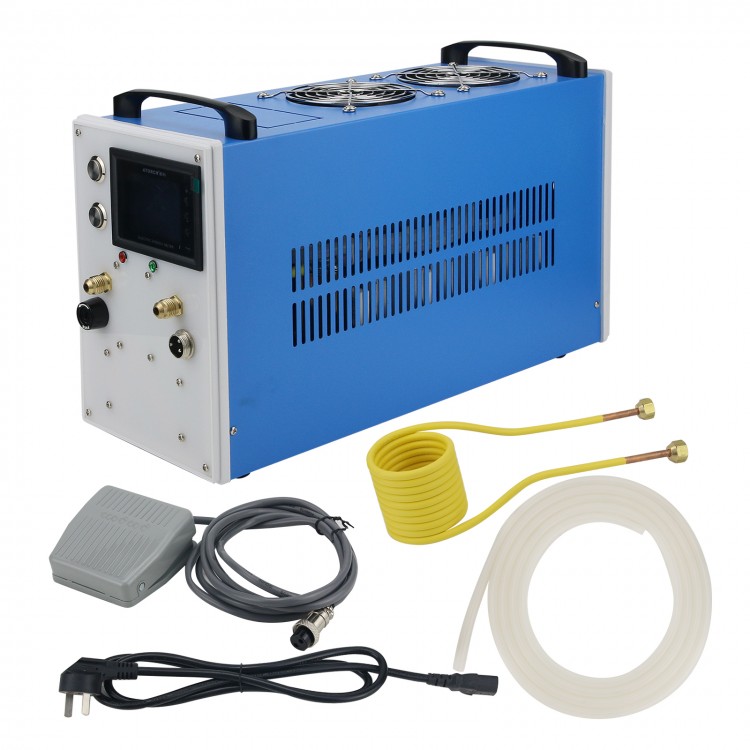

Package Included:
- 1 x ZVS Induction Heater
- 1 x Power Cord
- 1 x Pedal Switch
- 1 x Heating Coil

Note:
- If customization service for heating coil is needed, please contact us for prices and details.
- First turn on master power switch, wait for a few seconds, and then see that the fan and water pump are working normally, and then turn on the induction heating switch on the back when the displayed voltage is about 48V. Please follow the above step, or the motherboard will be directly burned and unprotected. When shutting down, turn off the heating switch before turning off the power switch. If it is turned off and not in use for a period of time, you should turn off the main power supply for one minute after turning off the heating switch to allow the cooling system to cool down and increase the service life.
- Water cooling and air cooling must work at the same time. If any of them does not work, you should immediately disconnect the power and contact the manufacturer for solutions.
- If it is possible, get cold water in and hot water directly drained without circulation, so the heat dissipation effect will be better.
- Please prepare spare crucibles by yourself.
- Please pay attention to the displayed parameters while heating. When the voltage, current and the temperature of the main board are displayed abnormally, please disconnect the power.
- It is normal that the cooling system will generate noises for high-power uses.

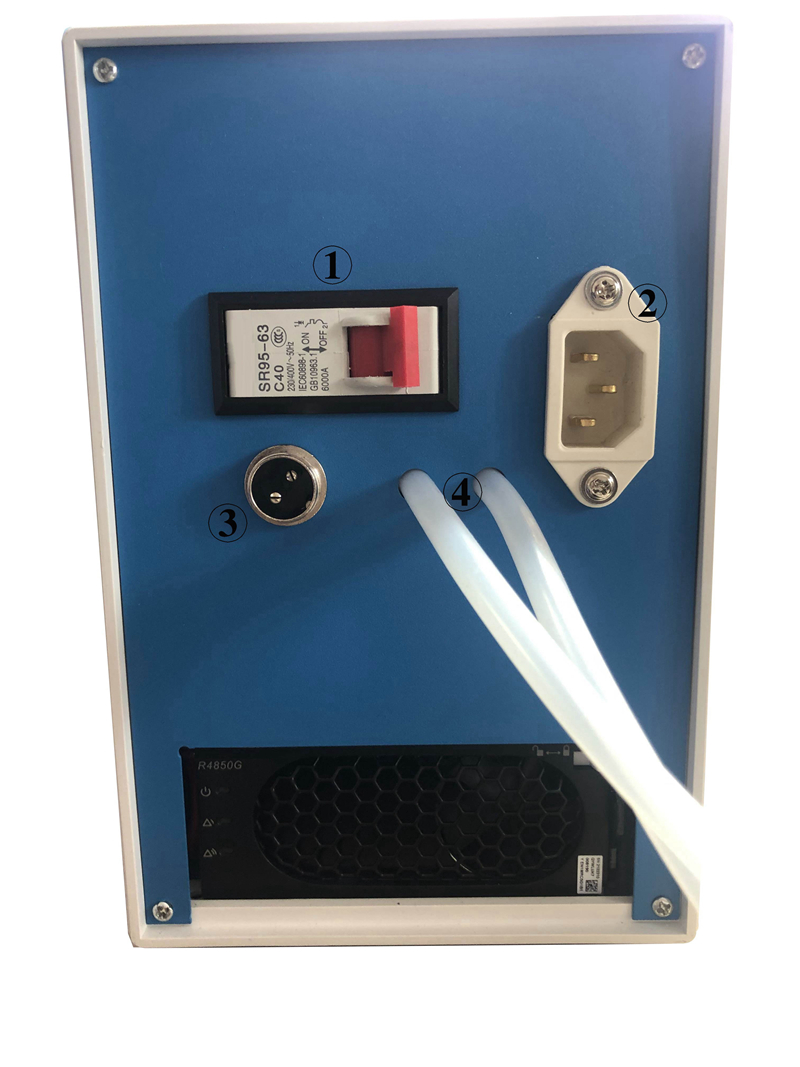

① Maser Power Switch
② AC110V-AC220V Input Interface
③ Infrared Temperature Sensor Interface
④ Water Cooling Water Pipe

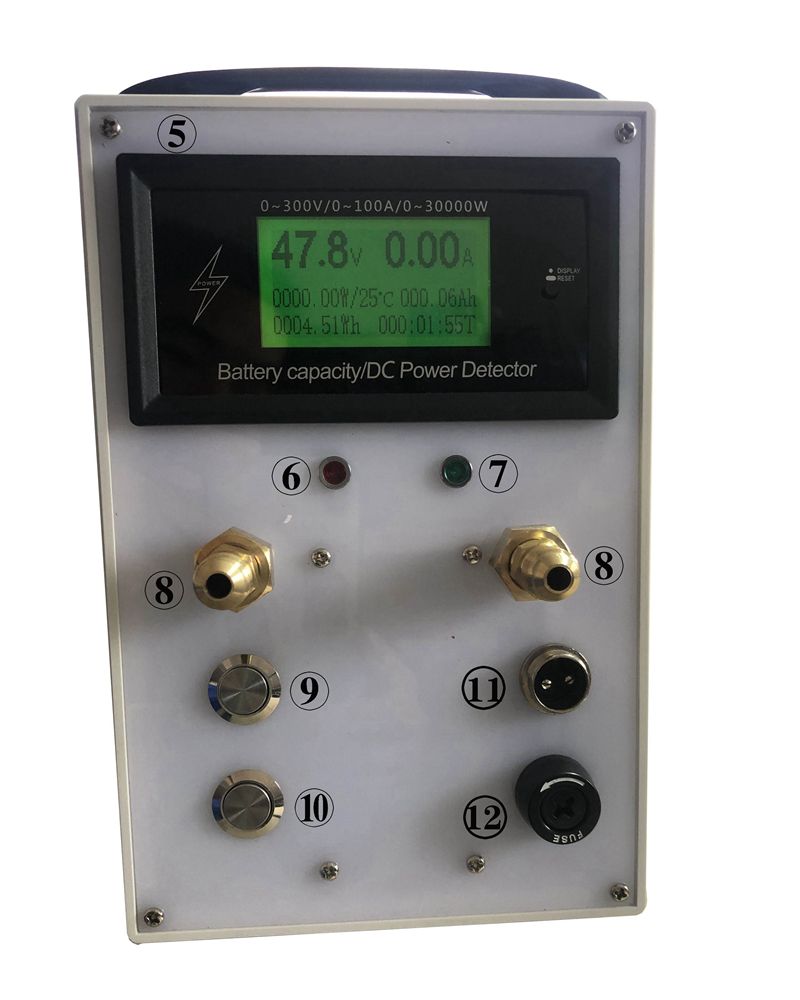

⑤ Display Screen
⑥ Overload Indicator
⑦ Heating Indicator
⑧ Output Interface
⑨ Continuous Heating Switch
⑩ Reset Switch
⑪ Pedal Switch Interface
⑫ Fuse

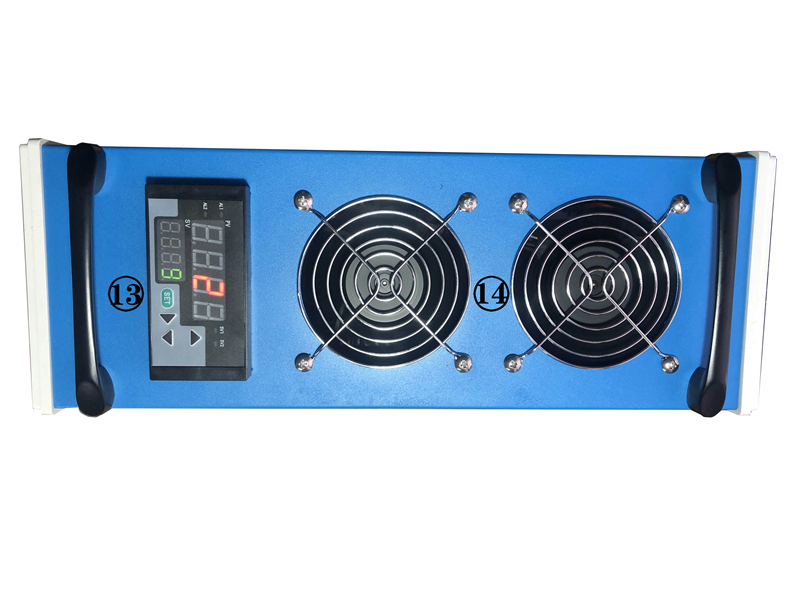

⑬ Temperature Controller
⑭ Heat Dissipation Fans
