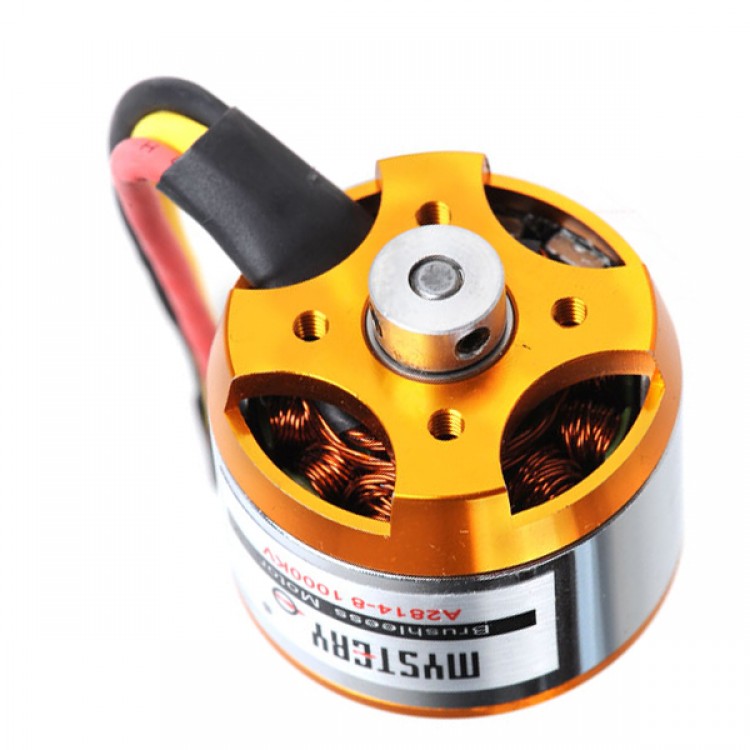

2814 1000KV Outrunner Brushless Motor for Quadcopter Multicopter 4-Pack
Specfications:
- Type: X2814-1000KV
- KV (RPM/v) : 1000KV
- No load current: 10V/2A
- Weight: 100 g
- Diameter: 30 mm
- Length: 52.1 mm / 34 mm (including axial length/excluding motor shaft length)
- shaft (mm) : 4mm
| 2814 KV1000 | |||||
| Testing Data (for reference only): | |||||
| Propeller Type | Voltage | Current | Thrust(G) | Power(W) | G/W Ratio |
| EMP12X6 | 7.6V | 21A | 1.2kg | 159.6 | 7.51 |
| 8.8V | 25.8A | 1.55kg | 227.04 | 6.82 | |
| 10V | 29.7A | 1.87kg | 297 | 6.29 | |
| 10.6V | 32.6A | 2kg | 345.56 | 5.78 | |
| 11V | 34.9A | 2.1kg | 383.9 | 5.47 | |
| APC11X7 | 7.5V | 16A | 0.62kg | 120 | 5.16 |
| 8.5V | 18.9A | 0.8kg | 160.65 | 4.97 | |
| 10V | 24A | 1.05kg | 240 | 4.37 | |
| 11V | 27.9A | 1.3kg | 306.9 | 4.23 | |
| 12V | 31.6A | 1.48kg | 379.2 | 3.9 | |
| 12.8V | 34.2A | 1.6kg | 437.76 | 3.65 | |
| 13.5V | 36.2A | 1.78kg | 488.7 | 3.64 | |
| 14V | 38.2A | 1.89kg | 534.8 | 3.53 | |
| 14.5V | 40.5A | 2.07kg | 587.25 | 3.52 | |
| 14.8V | 41.8A | 2.15kg | 618.64 | 3.47 | |
| EMP11X5.5 | 7.5V | 13.8A | 0.65kg | 103.5 | 6.28 |
| 8.5V | 16.6A | 0.85kg | 141.1 | 6.02 | |
| 10V | 21A | 1.08kg | 210 | 5.14 | |
| 11V | 24.3A | 1.32kg | 267.3 | 4.93 | |
| 12V | 27.7A | 1.62kg | 332.4 | 4.87 | |
| 12.8V | 30.8A | 1.90kg | 394.24 | 4.81 | |
| 13.5V | 32.6A | 2.10kg | 440.1 | 4.77 | |
| 14V | 34.6A | 2.28kg | 484.4 | 4.7 | |
| 14.8V | 37.8A | 2.5kg | 559.44 | 4.46 | |
