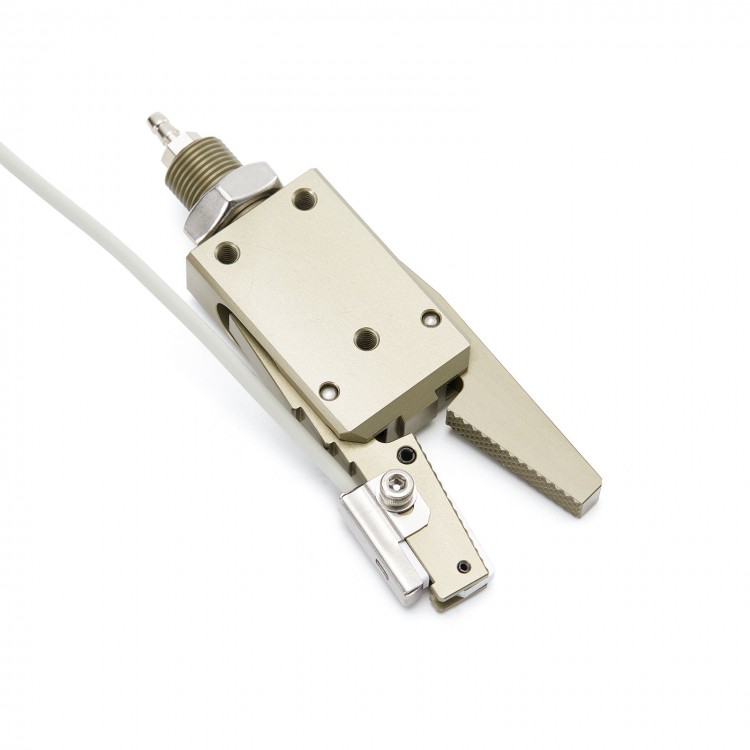

28N Mini Robot Gripper Robot Arm Gripper Two-Fingered End Of Arm Tooling Replacement For Star EINS CHK-EM-12-C External Thread

28N Mini Robot Gripper Robot Arm Gripper Two-Fingered End Of Arm Tooling Replacement For Star EINS CHK-EM-12-C External Thread

Description:
This product is made of 7 series aviation aluminum and processed by imported five-axis machining center. The product processing accuracy reaches 0.005mm. It uses a non-die casting process. The surface treatment is hard oxide and the surface color is uniform, there being no scratches and no burrs. It runs smoothly without any abnormal noise. In order to ensure the sealing and durability of the product, all parts of the product such as sealing rings and springs are imported. Each product has passed the holding pressure test and running test before shipment. We randomly inspect each batch of products, and the durability test is two million times. During the tests, the product boasts stable performance and high repeat positioning accuracy.

Features:
- Micro switch for Omron enabling long lifespan
- Through hole changed to M4 screw hole makes it more firm to install
- Enlarged cylinder body and stronger gripping force
- Enlarged opening of the gripper for wider gripping range
- You first choice for high-frequency gripping
- Hard surface oxidation treatment, uniform surface color, no scratches, no burrs
- More smooth operation

Specifications:

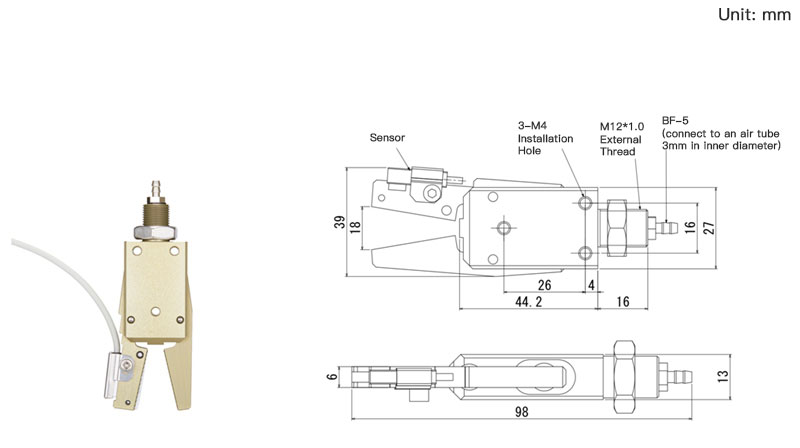

- Model: SKJ-EM-12-C (External Thread)
- Gripping force: 28N
- N.W.: 56g/0.1 lb
- Type: Aluminum gripper
- Sensor: DC two-wired

Sensor Instructions:
The working voltage of the two-wire magnetic switch equipped with this product is 10V~28V, and the maximum current is 100ma. Over 100ma will reduce the service life of the switch or burn out.

When using a two-wire magnetic switch:
(1) The general connection method of internal common positive PLC or circuit is that a brown wire is connected to a signal wire connected in series with the 24V positive pole of power supply, and a blue wire is connected to 0V.
(2) It cannot be directly connected to the positive and negative poles of a battery or a DC power supply. It must be connected to the positive and negative poles of a battery or a DC power supply after a load is connected in series at one end of the switch (the load can be a relay or PLC). Wrong wiring or not connecting the load directly to the battery or the positive and negative poles of the DC power supply will immediately burn out the switch.
(3) If the brown wire and blue wire of the switch are connected to a reverse circuit, it will output directly, and the light will not turn on.

Package Included:
- 1 x Set of Gripper

Note:
- Battery and other items mentioned are not included, for demonstration purposes only. Thank you for your understanding!
