2D Barcode Scanner Module Embedded QR Code Scanning Recognition For 1D 2D Bar Code DL-X820Y USB Port

2D Barcode Scanner Module Embedded QR Code Scanning Recognition For 1D 2D Bar Code DL-X820Y USB Port

Features:
- Compact size makes installation easier
- Support 1D & 2D barcode
- Dual lights improve scanning speed
- Latest decoding technology enables high scanning sensitivity

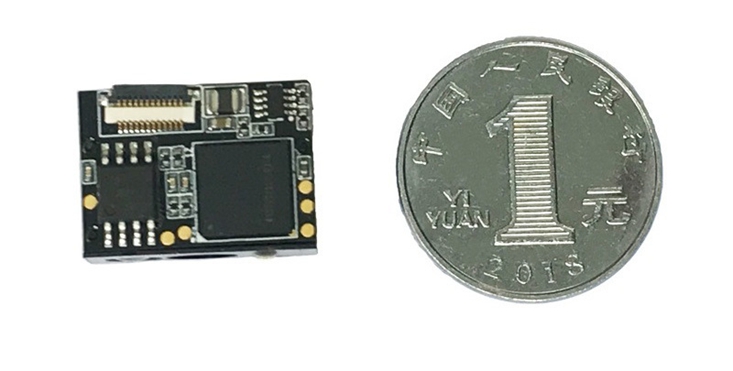

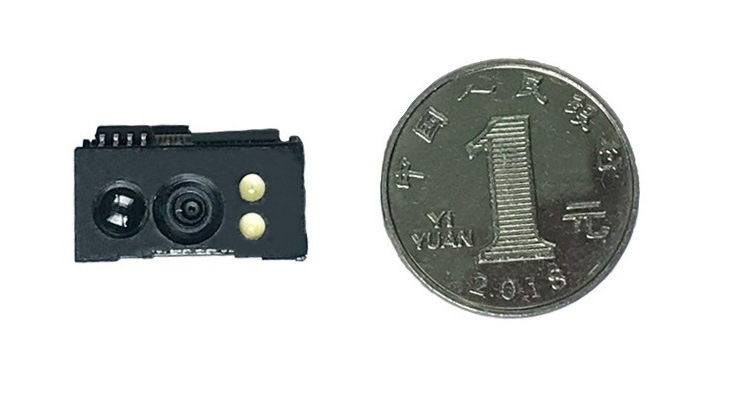

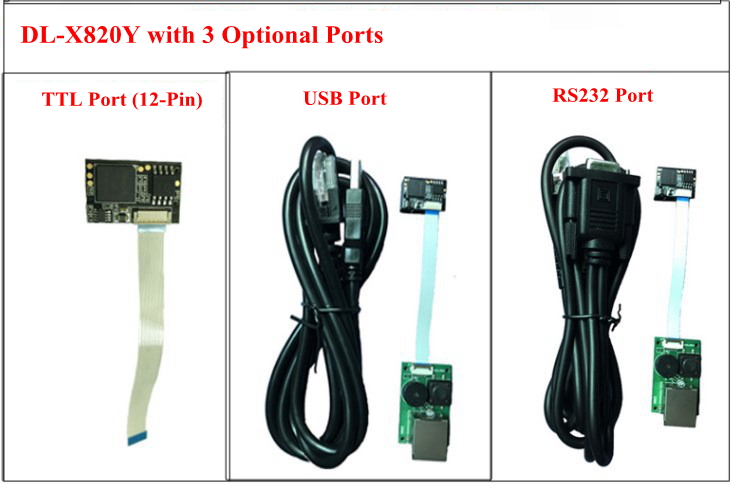

Product Pictures:

Applications:

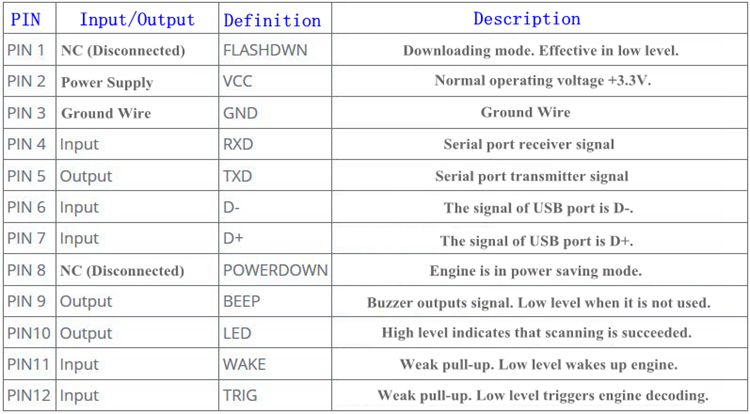

Pin Definition:

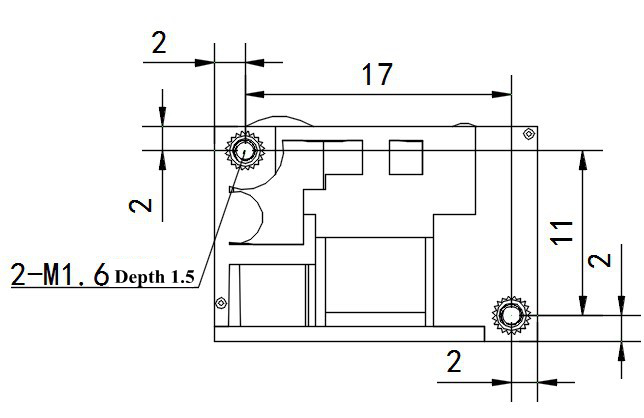

Installation (Unit: mm):


Parameters:
- Communications Way: USB
- Optical System: 620nm Red-light Emitting Diodes
- Pixel Resolution: 752x480 Pixels
- Analyzing Degree: ≥4mil/0.1mm (PCS90%, CODE 39)
- Decoding Speed: Up to 300 times /sec
- Reading Modes: Manual reading, constant reading, flashing reading, command control
- Prompt Ways: Buzzer & LED (External circuit)
- Reading Angle: Rotation : ±30°; Inclination: ±60°; Declination: ±60°
- Printing Contrast: ≥25%
- Environmental Illumination: Works in darkness and natural light indoors
- Supported Code System:
   2D: PDF417, QR Code (Model 1/2), Micro PDF417, DM Data Matrix (ECC200, ECC000, 050, 080, 100, 140)
  1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,
Inter leaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, etc.

Mechanical/Electrical Parameters:
- Optional Cable: 1.5m
- Interface Type: FPC 12PIN Pitch 0.5
- Operating Voltage: DC 3.3V
- Operating Current: 130mA
- Peak Current: 198mA
- Size: 21 x 15 x 12.5mm (L*W*H)
- N.W.: 4g

Working Environment:
- Operating Temperature: -20℃ to 50℃
- Storage Temperature: -40℃ to 60℃
- Operating Humidity: 5% to 95% (No condensation)



Package Included:
- 1 x QR Code Scanner Module

Note:
- Only barcode scanner module is included in the package. Other items in the pictures are not included.
- If 1.5m cable is needed, please contact us for more details and extra price. Thank you!
