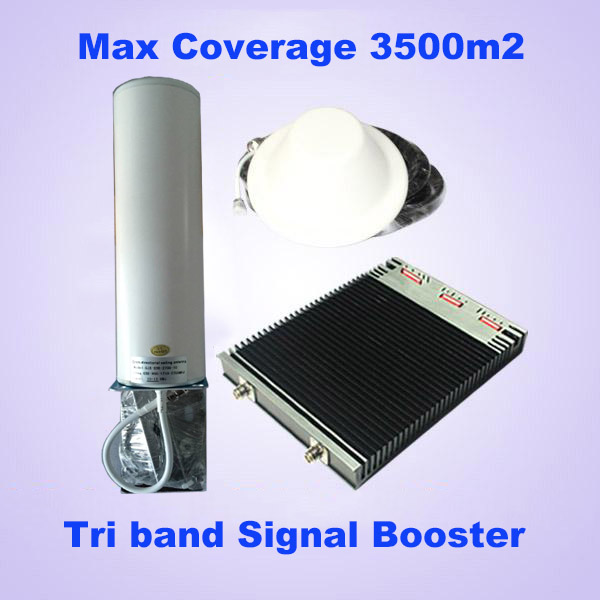

2G 3G 4G Tri Band Signal Booster Mobile Signal Repeater GSM900 DCS1800 4G 2100

2G 3G 4G Tri Band Signal Booster Mobile Signal Repeater GSM900 DCS1800 4G2100

Description:
ST Mobile Phone Signal Boosters are designed to help mobile users to amplify 2G, 3G and 4G weak signals. All amplifiers are bi-directional.
1. The donor antenna receives the signals from the cell tower and transmits to the signal booster.
2. A mobile phone booster amplifies a weak signal.
3. Then the indoor antenna receives the signal and retransmits it to your mobile device.

The signals produces by your phone are also amplified by the indoor antenna via the booster and the donor antenna.

If you're experiencing dropped calls, slow or lost internet connection, stuck text messages, poor voice quality, weak coverage, low bars, and other cell phone reception problems, a cell phone signal booster is the best solution that produces definite results.

We provide signal boosters kits for any Homes, Offices, Cars, RV's, Boats and more. All amplifier kits come with Indoor and Outdoor Antennas, Cables, Power adapters and more.

HPC-GDL-27 Dual Band Repeater Features:
1. With unique appearance design, have good cooling function
2. With MGC function, (Manual Gain Control), Customer can adjust the Gain as needed;
3. With DL signal LED display, help to install the outdoor antenna at the best state;
4. With AGC and ALC, make repeater work stable.
5. PCB with isolation function, make UL and DL signal not influence each other,
6. Low intermediation, high Gain, stable Output power

HPC-GDL-27 Repeater Inside and Outside Design:
HPC-GDL-27 Dual band repeater is to support any two mobile band existing in the world to help end users to improve mobile signals for much better phone call quality and smoother data transmission. It is designed to support coverage area max can up to 2000 square meters with proper engineering. Below are the main features.

1. The consumer repeater is an ideal solution for providing a cost effective improvement in cellular in-building coverage of a home, office, restaurant or building, in the quickest time possible.
2. Manual gain control (MGC) available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.
3. To maintain safe and specific output signal levels and give alarms on self-oscillation, the repeater has built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.
4. Auto shut off function available for both uplink and downlink to avoid deep self-oscilation from jamming the towers, saving your trouble from operators.
5. Wide band feature enables all devices operating within the wide frequency range of the repeater to see an improvement in performance.
6. Multiple phones and other handheld devices throughout a building can benefit from a wireless repeater.
7. Supports up to (500) users / calls simultaneously.
8. Extended phone battery life. (Your phone does not need to put out as much power due to improved reception.)

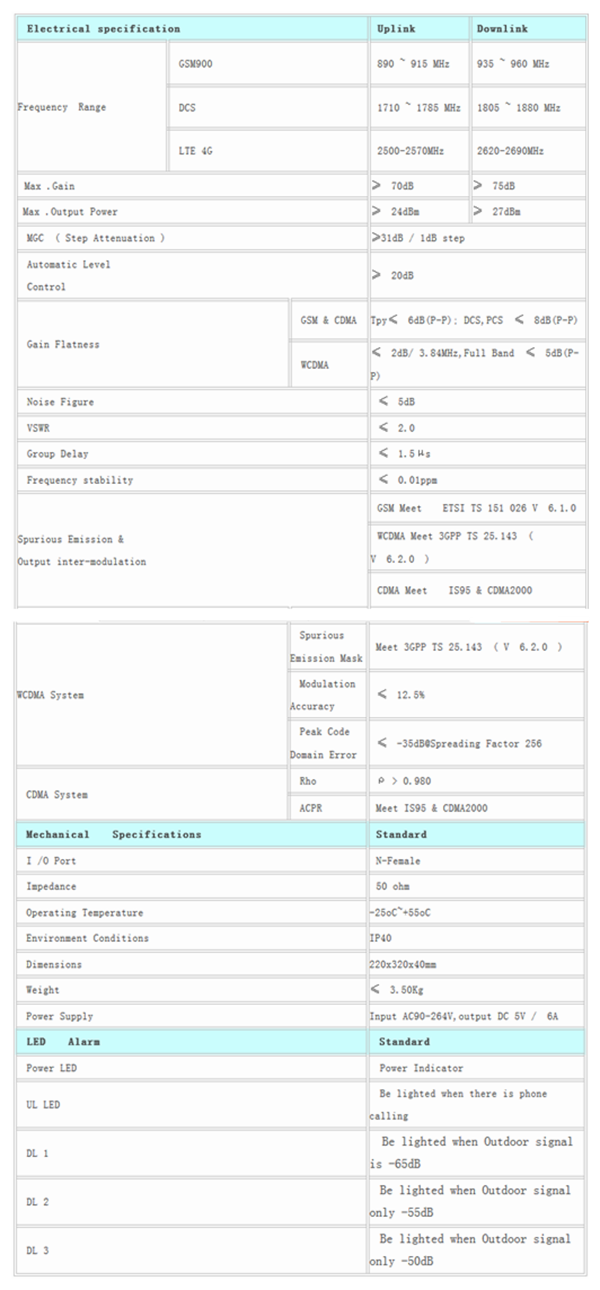

Specifications:

The installation of the Repeater
Outdoor antenna (for receiving the signal from the BTS) + Cable (transferring the received signal) + Repeater (for amplifying the received signal) + cable (for transferring the amplified signal) + indoor antenna( for shooting the amplified signal),
(Note: Omni indoor antenna is 3dBi, it can work with about 200m2. If need repeater coverage larger area, need add more antennas, the HPC-GDL-27 Max can work with 10pcs indoor antenna.  (when add antenna ,please remember to take splitters )

Installation Steps:
Step 1: Start by taking your phone up to the roof or other location outside to find where the signal is strongest.
Step 2: Temporarily mount the Outdoor (outside) antenna in that location. You may need to adjust and move the antenna later.
Step 3: Run coaxial cable into the building to a convenient location (attic, etc.) where you can also get standard power for the Signal Repeater.
Step 4: Place the Signal Repeater in that location and connect the coaxial cable to the Outdoor Side of the Signal Repeater and the Outdoor antenna.
Step 5: Mount your Indoor (inside) antenna in a productive location. You may need to adjust or move the antenna later.
Step 6: Connect coaxial cable between the Indoor antenna and the Signal Repeater output port.
Step 7: Power up the system and check for signal inside the building. If needed, tune system by moving and or pointing the Outdoor and Indoor antennas until they get the most signal possible.
Step 8: Secure all antennas and cables, securely mount the Signal repeater and clean up the installation.

Package Included:
- 1 x Booster
- 1 x Power Adapter
- 1 x Outdoor Antenna
- 1 x Indoor Antenna
- Cables with Connector
