2K Camera 7X-90X Trinocular Stereo Microscope Magnifier Stand for Jewelry Optical Tools Microscope Camera

2K Camera 7X-90X Trinocular Stereo Microscope Magnifier Stand for Jewelry Optical Tools Microscope Camera

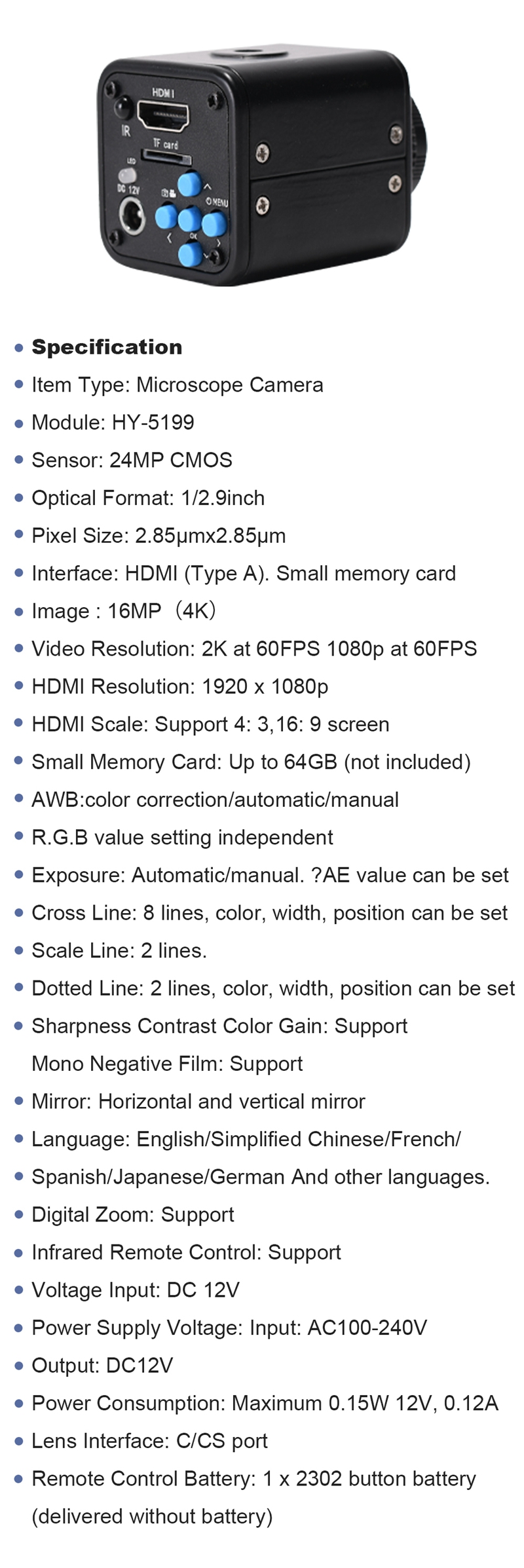

Specification:
- Model: HY-5199
- Sensor: 24MP CMOS
- Optical format: 1/2.9 inch
- Pixel size: 2.85μm x 2.85μm
- Interface: HDMI (Type-A), small memory card
- HDMI image resolution: 24MP
- Video resolution: 2K 1920 x 1080
- HDMI resolution: 1920 x 1080P
- HDMI scale: support 4 : 3, 16 : 9 screen
- Small memory card: up to 64GB (not included)
- AWB: AWB color correction/automatic/manual
- RGB value setting independent
- Exposure: automatic/manual. AE value can be set
- Cross line: 8 lines, color, width, position can be set
- Scale line: 2 lines
- Dotted line: 2 lines, color, width, position can be set
- Sharpness contrast color gain: support
- Mono negative film: support
- Mirror: horizontal and vertical mirror
- Language: English/Simplified Chinese/French/Spanish/Japanese/German and other languages
- Digital zoom: support
- Infrared remote control: support
- Voltage input: DC 12V
- Power supply input: AC100 - 240V
- Power output: DC12V
- Power consumption: maximum 0.15W 12V, 0.12A
- Lens interface: C/CS port
- Remote control battery: 1 x 2302 button battery (not included)

Feature:
- 7X - 45X continuous zoom magnification power
- 45-degree inclined trinocular simul-focal head with super wide-field high-eyepoint eyepieces
- Trinocular port for adding photo or video capability
- 30mm super wide-field WF10X eyepieces with 20mm field of view
- High resolution with great flatness and contrast
- Sharp stereo erect images over a wide field view
- Crystal clear original true color images
- Large working distance
- Accurate alignment ensuring a fatigue-free viewing
- Full optical glass elements
- Precise ground glass lens
- All metal mechanical components
- Adjustable interpupillary distance
- Manufactured under ISO 9001 quality control standard
- Bracket hole: 76mm
- Control high range: 50mm
- Spin angle:
  Horizontal: ±15°
  Straight: ±15°
- Main straight: 270°
- Material: hard aluminum alloy
- Total height: 500mm
- Expansion amount: 200 - 500
- Package size: 61 x 42 x 23.5cm
- Package weight: 12kg

Trinocular Stereo Specification:
- Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
- Eyepiece: 30mm super wide-field high-eyepoint WF10X/22
- Objective: 0.7 - 4.5X
- Zoom range: 6.5: 1
- Trinocular port: 25mm photo port
- Interpupillary distance: 2-1/8” to 3” (54 - 76mm)
- Field of view: 1 - 1/4” (33mm)
- Working distance: 7X - 45X (100mm)
- Use 0.5X objective lens: 3.5X - 22.5X (180mm)
- Use 2X objective lens: 14X - 90X (50mm)
- Head mounting size: 3” (76mm) diameter
- Accessory mounting size: 1 - 7/8” (48mm female thread) diameter

144 Bright LED:
- Variable lighting direction
- Variable power control
- Strong and concentrated shadowless lighting
- 100,000 hours of life
- Power input: 100 - 240V, 50 - 60Hz, automatic switching
- The inner diameter of the ring light: approx. 27mm/1.1 inch
- Overall outer diameter: approx. 45mm/1.8 inch
- Working distance: approx. 27 ~ 120mm/1.1 ~ 4.7 inch

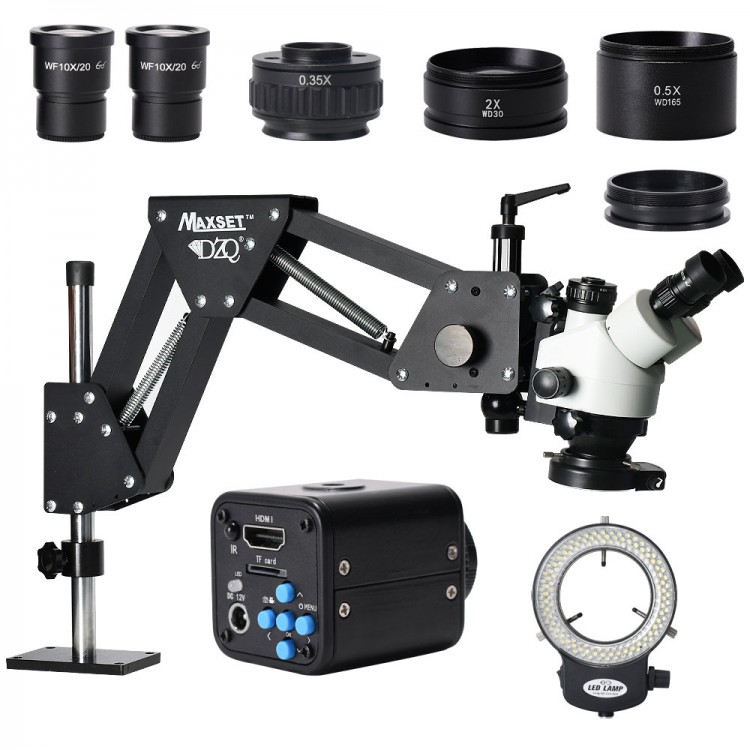

Package Included:
- 1 x Microscope Camera
- 1 x HDMI Cable
- 1 x IR Remote Control
- 2 x Power Adapter
- 1 x Trinocular Stereo Zoom Head
- 1 x Pair of Super Wide-field 10 x 22mm Eyepieces
- 1 x 144-LED Ring Light
- 1 x Microscope Bracket
- 1 x 0.35X Simul-focal Adapter
- 1 x Pair of Eye-guards
- 1 x Dust Cover
- 1 x Paper Manual
- 1 x 0.5X Microscope Auxiliary Objective Lens (Working Distance 180mm)
- 1 x 2X Microscope Auxiliary Objective Lens (Working Distance 50mm)
- 1 x 1X Objective Lens (Protection Function)
