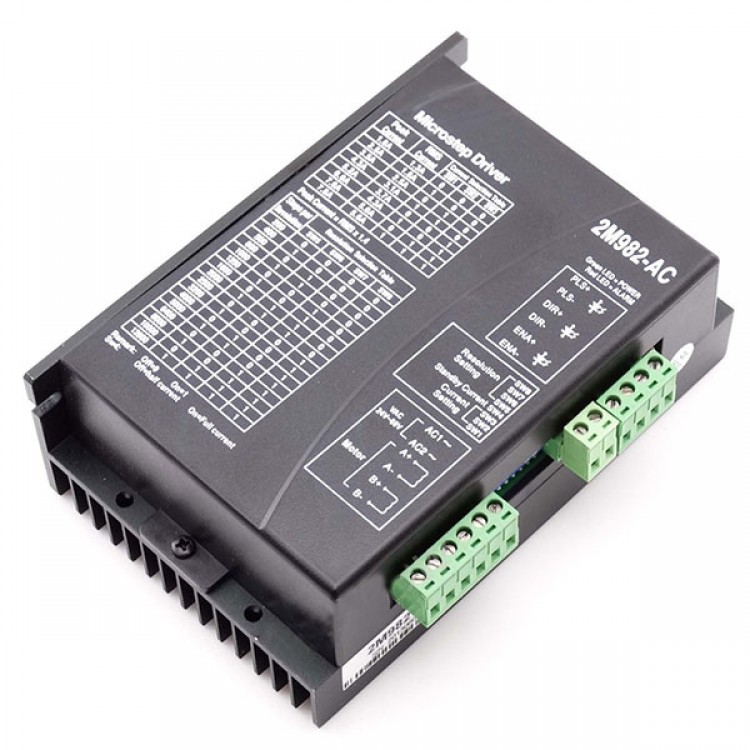

2M982-AC Stepper Motor Driver Controller 7.8A 24-60V AC for CNC Router Mill

Description:
- The driver is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving 2-phase hybrid stepping motors.
  Suitable for a wide range of stepping motors, from NEMA size 23、34. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.

Feature:
  1. High performance, cost-effective
  2. Supply voltage DC24-60 VAC
  3. Output current up to 7.8A
  4. Self-adjustment technology
  5. Pure-sinusoidal current control technology
  6. Pulse input frequency up to 200 KHz
  7. TTL compatible and optically isolated input
  8. Automatic idle-current reduction
  9. 15 selectable resolutions in decimal and binary, up to 12,800 steps/rev
  10. Suitable for 2-phase motors
  11. Support PUL/DIR and CW/CCW modes
  12. Short-voltage, over-voltage, over-current protections

 Specification:


Parameters

2M982

Min

Typical

Max

Unit

Output current(A)

1.3

-

7.8

A

Supply voltage(V)

24

48

60

VAC

Pulse input frequency

-

-

200

KHZ

Pulse Low Level Time

2.5

-

-

us



MicroStep Settings:

(0FF=0.ON=1)

Stepper per

SW5

SW6

SW7

SW8

400

0

1

1

1

800

1

0

1

1

1600

0

0

1

1

3200

1

1

0

1

6400

0

1

1

1

12800

1

0

0

1

25600

0

0

0

1

1000

1

1

1

0

2000

0

1

1

0

4000

1

0

1

0

5000

0

0

1

0

8000

1

1

0

0

10000

0

1

0

0

20000

1

0

0

0

25000

0

0

0

0
　
Package Content：
  • 1 x CNC AC Stepper Motor Driver Controller 7.8A
