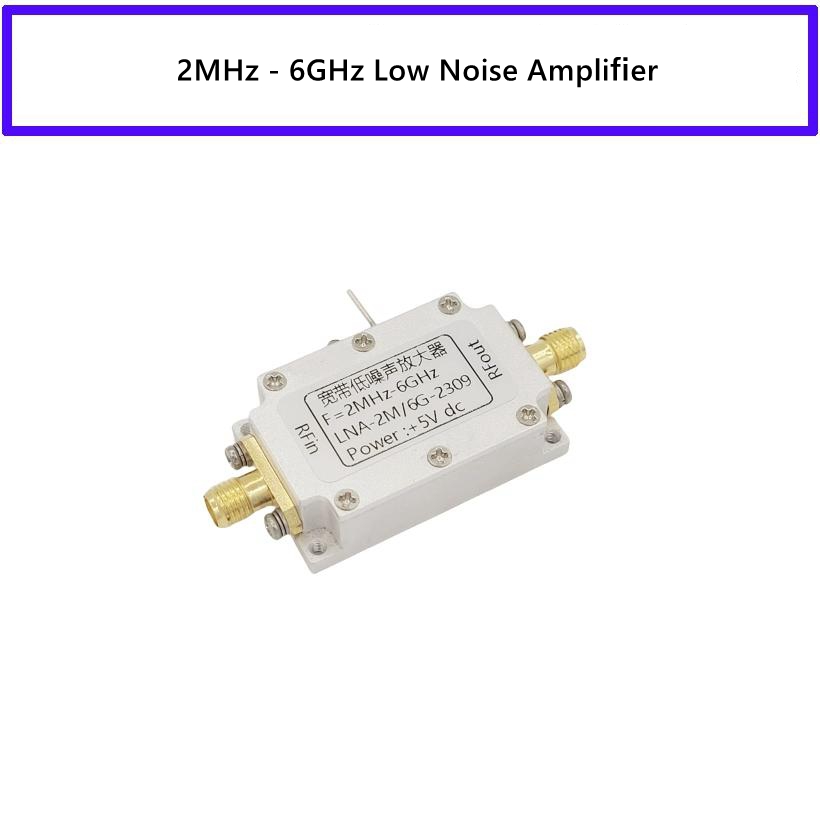

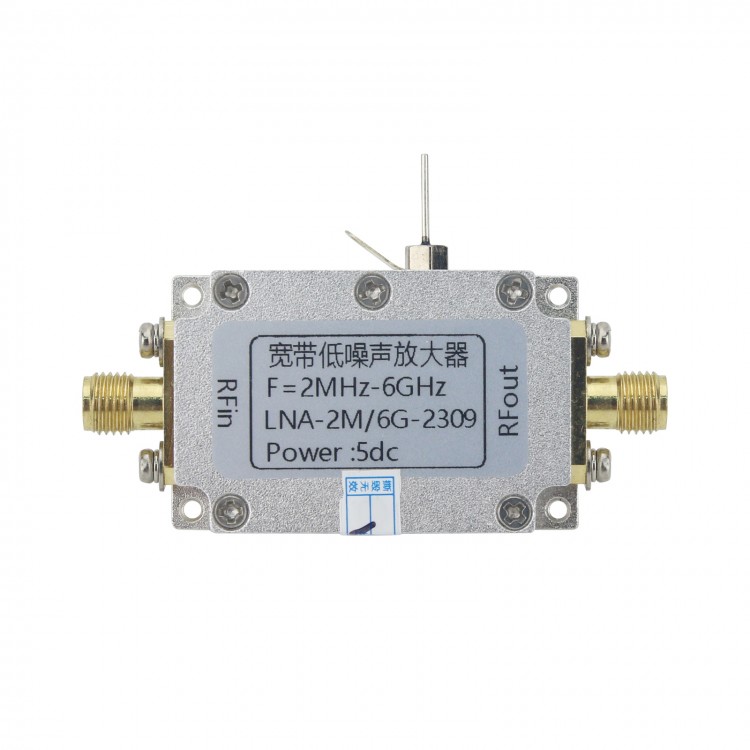

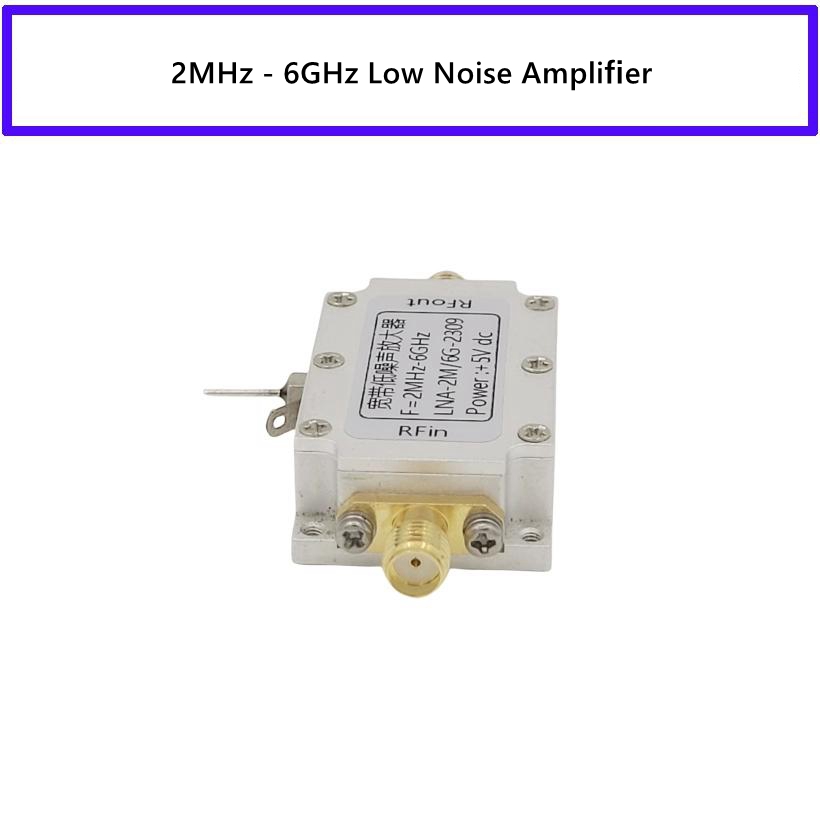

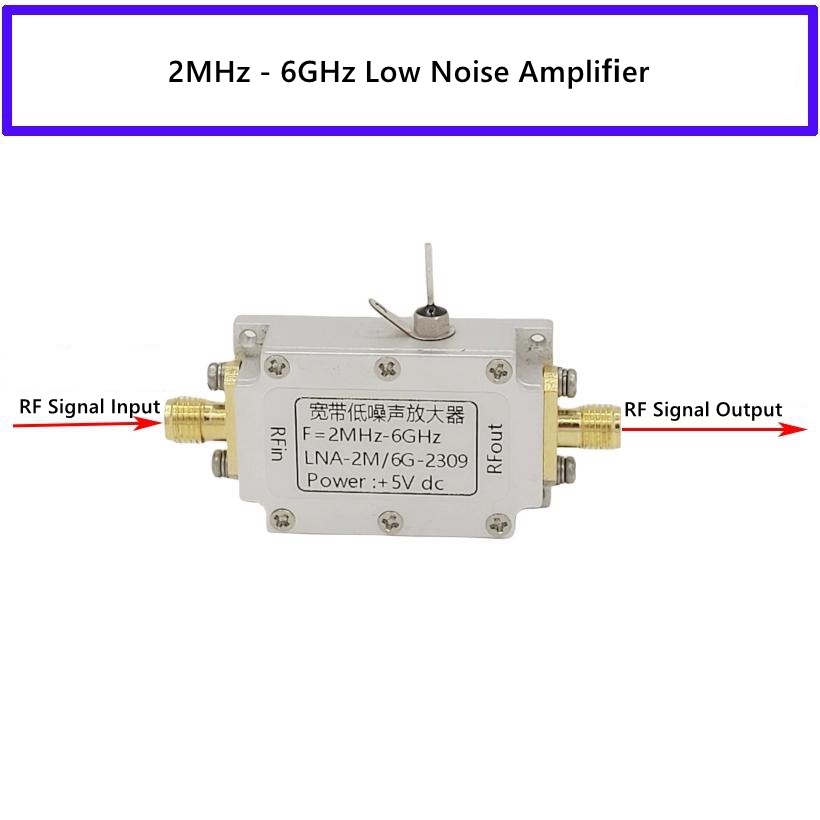

2MHz-6GHz High Linearity RF LNA Low Noise Amplifier Module 50ohm RF Amplifier with SMA Female Connector
Specification:
- Frequency bandwidth: 2MHz - 6GHz
- Impedance: 50ohm

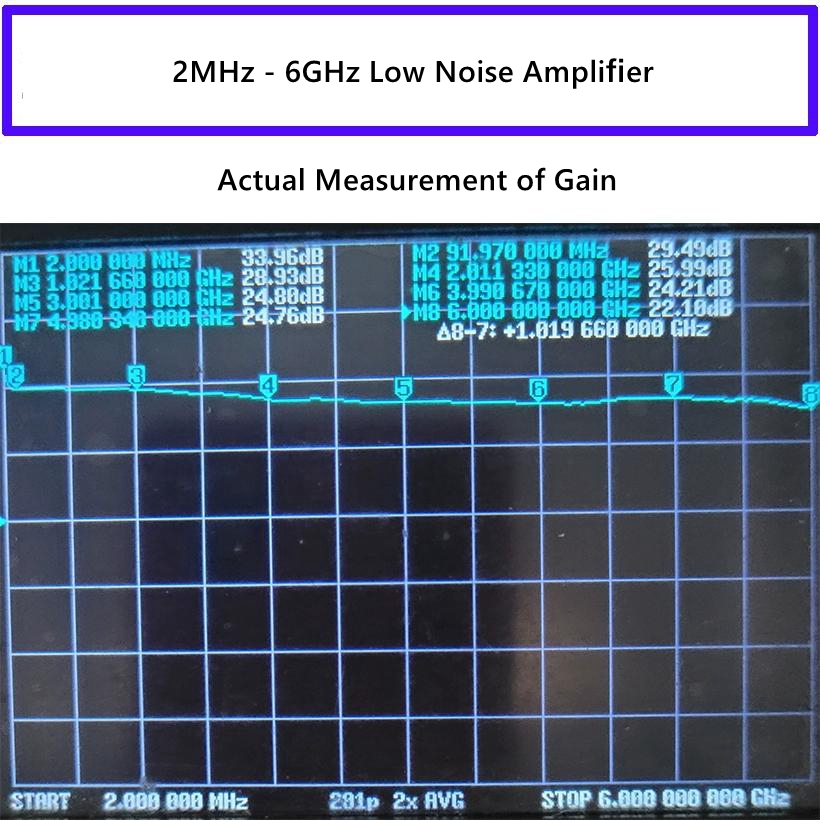

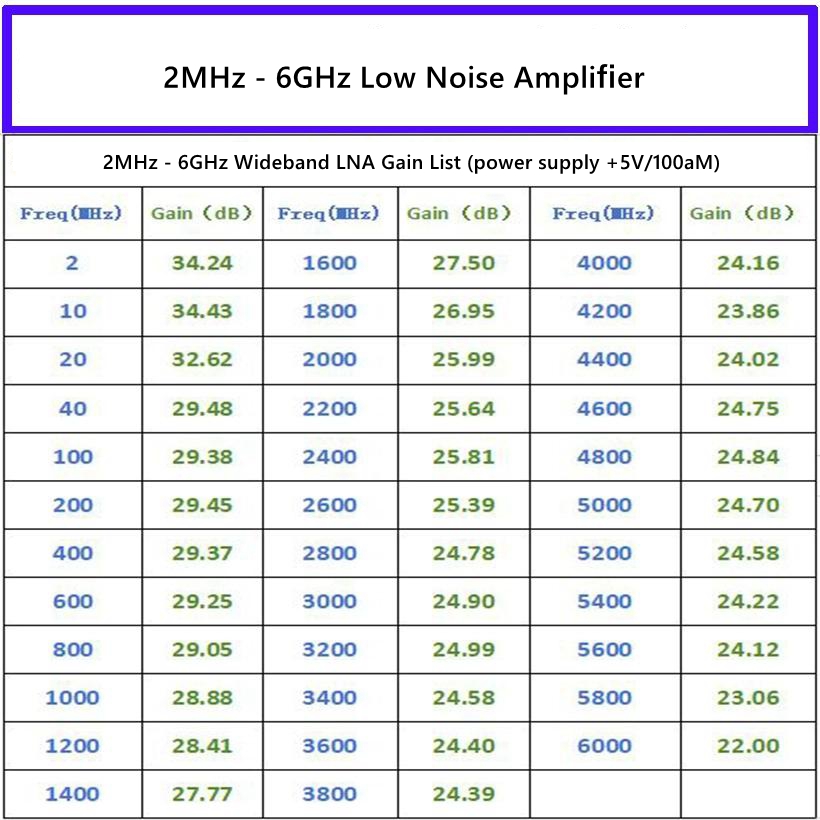

- Gain: 25dB
- Maximum input power: 0dBm (mW)
- Maximum output power: 16dBm (40mW)
- NF: < 2.5dB

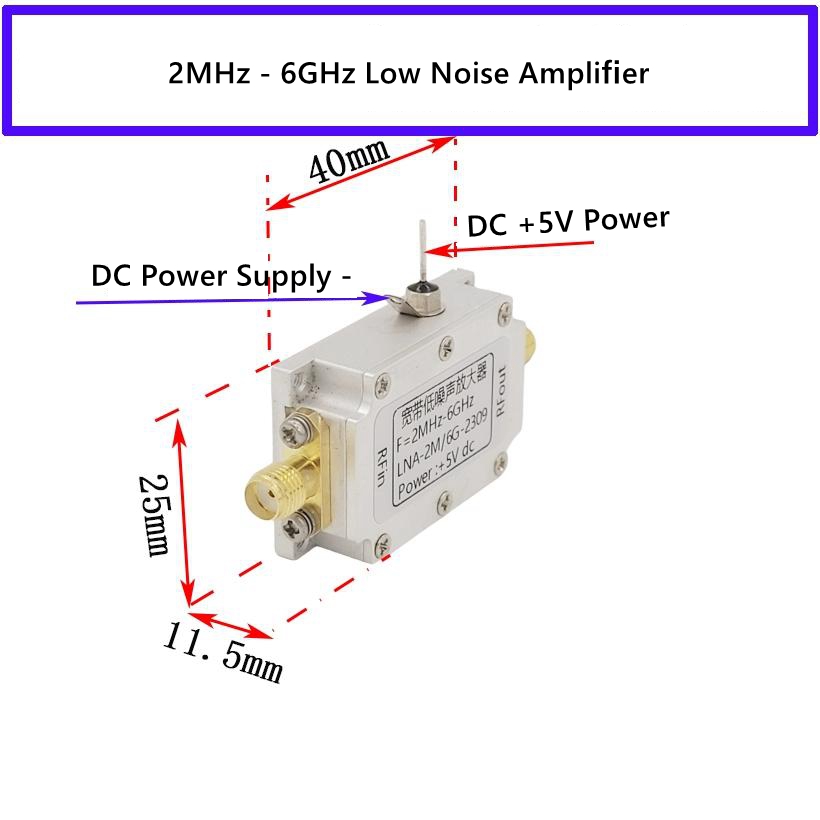

- DC power supply: 5 - 6V/100mA
- Connector type: SMA female connector
Precaution:
- When used as output power amplification, it output 40mW when the input signal strength is greater than -14dBm (0.115mW), but the second and third harmonics will increase, and filtering is needed to suppress harmonics. If the input signal is less than -14dBm, it can suppress -30dB by itself.
Package Included:
- 1 x LNA Module
Note:
- This module must first connect the input and output terminals, and then connect the DC power supply.
- When supplying DC power to the module, be sure to connect the DC positive and negative poles correctly. Do not reversely connect it, which may cause module damage.
