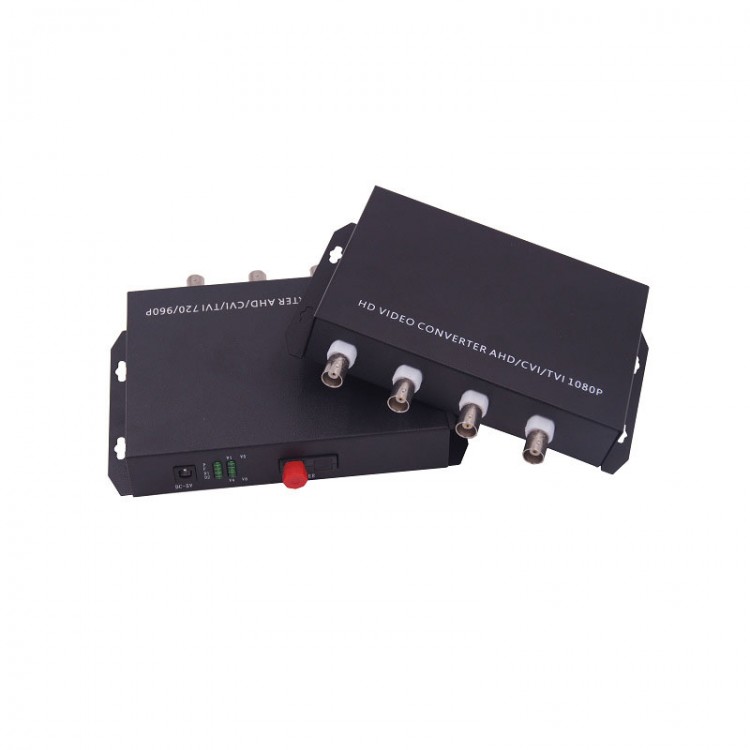

2PCS 4-Way 1080P HD Video Converter AHD/CVI/TVI + 1-Way Reverse RS485 for 2MP 1080P Coaxial Camera

2PCS 4-Way 1080P HD Video Converter AHD/CVI/TVI + 1-Way Reverse RS485 for 2MP 1080P Coaxial Camera

Description:
The desktop 4-channel coaxial HD video converters are perfect for all 2MP 1080P coaxial HD cameras on the market.

Specifications:
Basic Parameters:
- Optical interface: FC interface, single-mode fiber
- Transmission distance: 0-10km
- Input/output wavelength: Sending end: 1310nm sending and 1550nm reception; Receiving end: 1550nm sending and 1310nm receiving

Technical Parameters:
- Video: 720p 25/30/50/60fps and 1080p 25/30fps
- Input level: >500mVp-p
- Output level: 1Vp-p
- Automatic cable equalization: 1080p: 75-5 300m/984.3ft coaxial cable is supported. 720p: 75-5 500m/1640.4ft coaxial cable is supported
- Input and output impedance: 75Ω
- Physical interface: BNC interface
- Video input: 4
- Video output: 4
- Video sampling: 100MHz
- Sampling bandwidth: 8bit

Control Technical Indicators:
- Baud rate: 1200-9600bps
- Bit error rate: <10-9
- Working mode: half/duplex

Other Specifications:
- Indicators: optic link, power supply, data and video source indicators
- Dimensions: 165 x 135 x 25mm/6.5 x 5.3 x 1"
- Power supply: DC5V 2A
- Power consumption: < 10W for 4-channel transmitter and <10W for 4-channel receiver
- Operating humidity: 10%-90%
- Operating temperature: -20°C to 70°C

Application Scenarios:
Suitable for industrial automation, gas sensing detection, power automation, sewage automatic treatment and transportation.

Package Included:
- 2 x Video Converters
- 2 x Power Adapters
