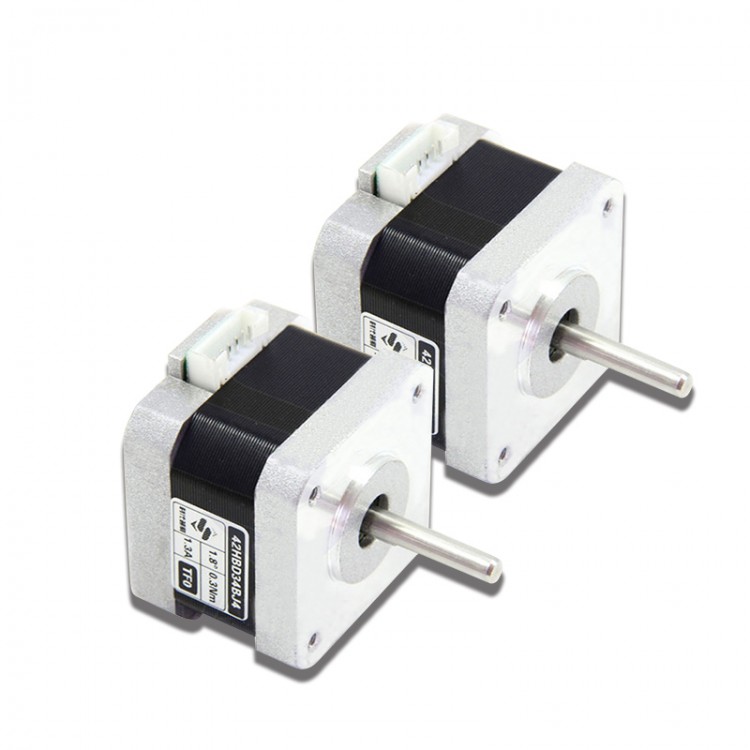

2pcs 42 Stepper Motor 2-Phase 4-Wire 0.3Nm 1.3A Low Noise Low Temperature Rise 42HBD34BJ4-TF0
General Specifications:
- Step Accuracy: ±5%
- Temperature Rise: 80℃ Max.
- Ambient Temperature Range: -20℃ to +50℃
- Insulation Resistance: 100MΩMin. 500V DC
- Insulation Strength: 500V AC for One Minute
Parameters:
- Model No.: 42HBD34BJ4-TF0
- Phase Number: 2
- Step Angle: 1.8°
- Static Torque: 0.3Nm
- Current: 1.3A
- Phase Resistance: 1.2Ω
- Phase Inductance: 3.2mH
- Voltage: 3.4V

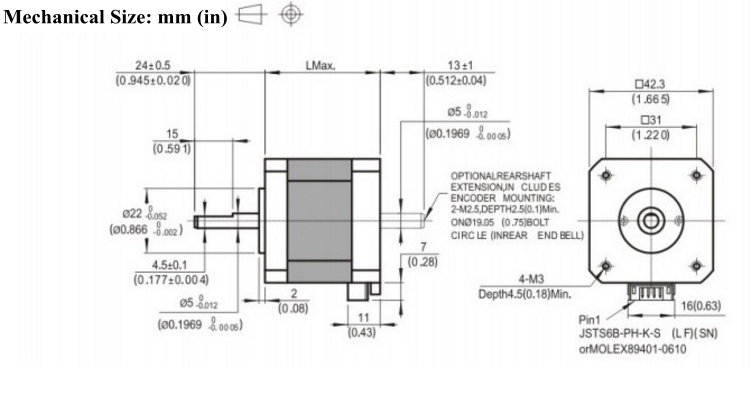

- Body Length: 34mm
- Spigot: 22mm
- Hole Spacing: 31mm
- Shaft Length: 23mm
- Shaft Diameter: 5mm
Package Included:
- 2 x 42 Stepper Motors
